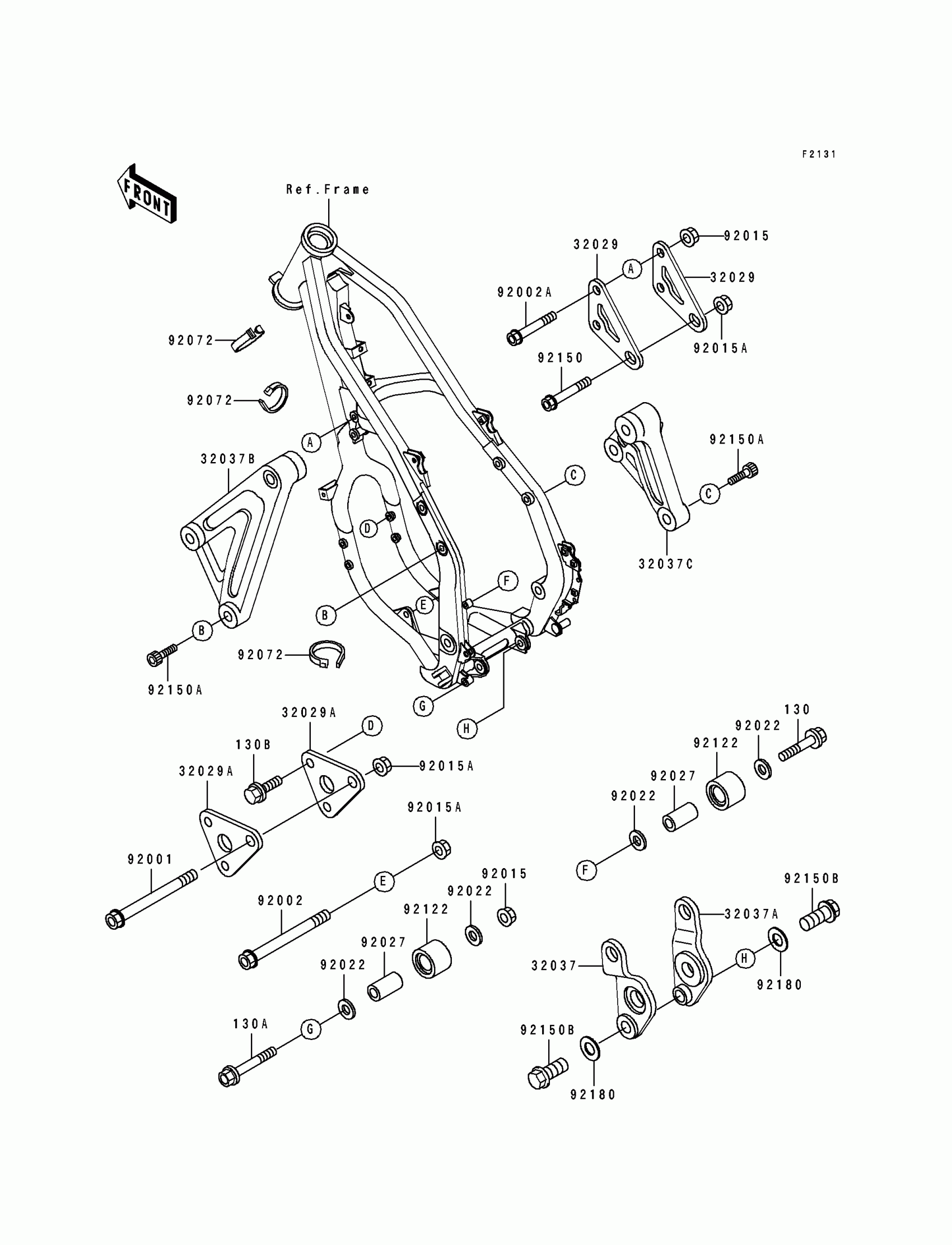

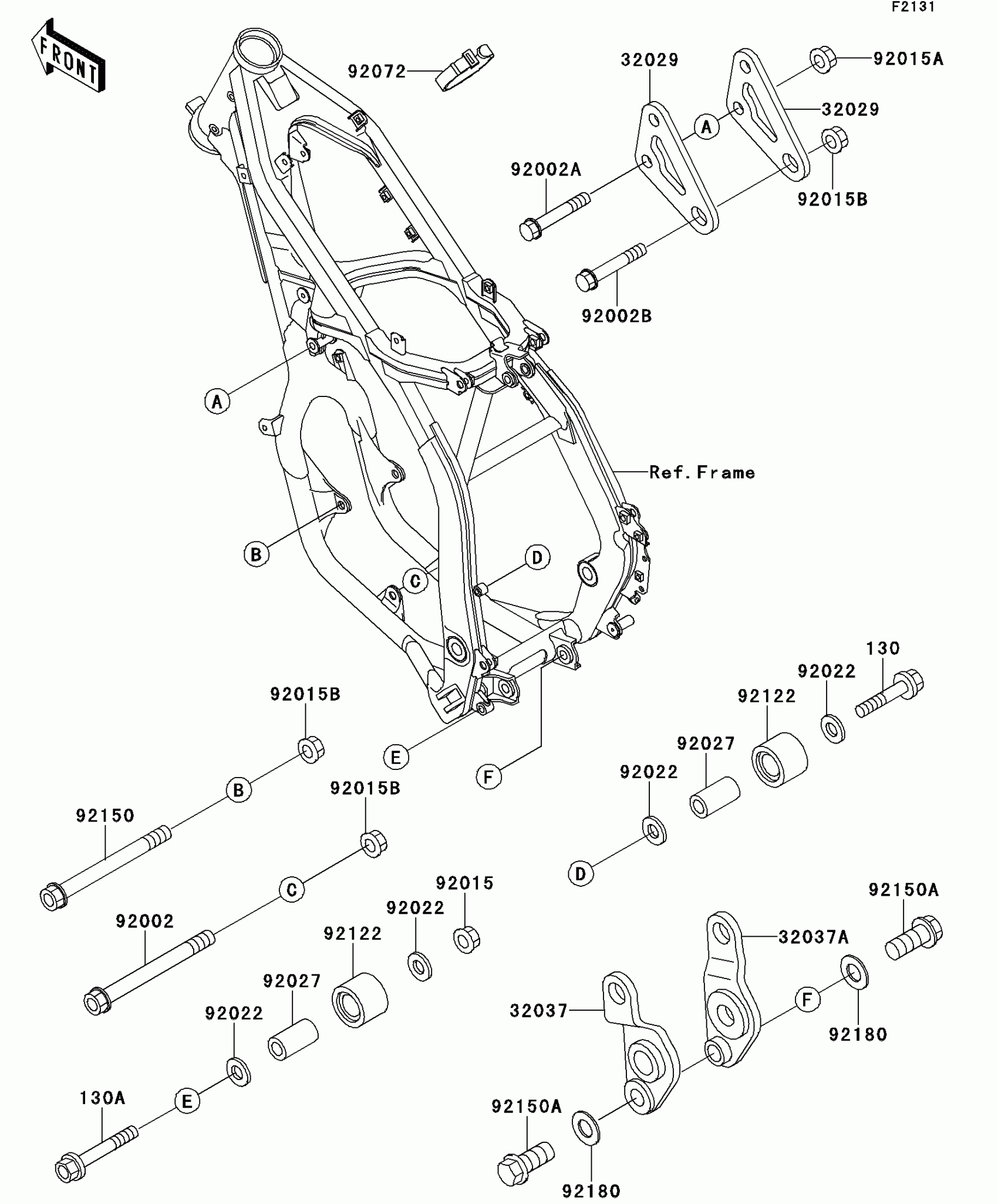

Kawasaki KX250 Frame Fitting Diagram

#

Description
Price

32029

BRACKET-ENGINE

32029-1714

Unavailable

32029A

BRACKET-ENGINE

32029-1720

Unavailable

32037

BRACKET-SHOCKABSORBER,LWR,LH

32037-1522

Unavailable

32037A

BRACKET-SHOCKABSORBER,LWR,RH

32037-1523

Unavailable

32037B

BRACKET-SHOCKABSORBER,UPP,LH

32037-1524

$94.46

32037C

BRACKET-SHOCKABSORBER,UPP,RH

32037-1525

$94.46

92001

BOLT,FLANGED,10X92

92001-1701

Unavailable

92002

BOLT,FLANGED,10X105

92002-1491

$9.19

92002A

BOLT,FLANGED,8X47

92002-1850

$4.85

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,FLANGED,10MM

92015-1502

$8.16

92022

WASHER,8.5X22X1.5

92022-1629

$4.87

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.25

92072

BAND,L=149

92072-031

$3.97

92122

ROLLER,CHAIN GUIDE

92122-1153

$8.44

92150

BOLT,FLANGED,10X50

92150-1125

$5.84

92150A

BOLT,SOCKET,10X23

92150-1347

Unavailable

92150B

BOLT,FLANGED,12X27

92150-1359

$6.24

92180

SHIM,12.5X24X0.5

92180-1060

$3.53

130

BOLT-FLANGED,8X40

130G0840

Unavailable

130A

BOLT-FLANGED,8X55

130G0855

Unavailable

130B

BOLT-FLANGED

130P0825

Unavailable
