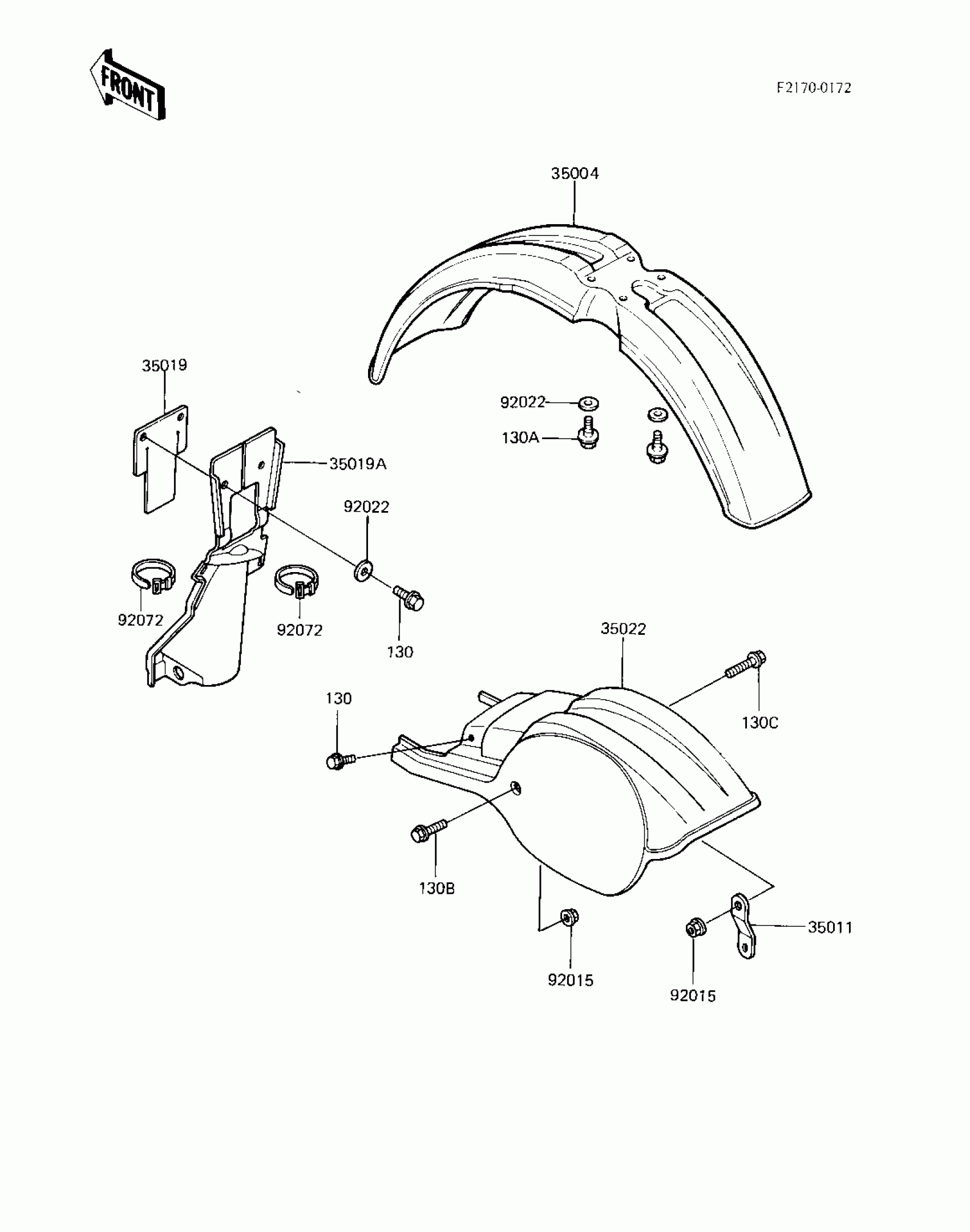

Kawasaki KX250 FENDERS ('83 KX250-C1) Diagram

#

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

35011

STAY,MUFFLER

35011-1154

Unavailable

35019

FLAP,FENDER,RR

35019-1056

Unavailable

35019A

FLAP,FENDER,RR

35019-1062

Unavailable

35022

FENDER-COMP-REAR,L.GR

35022-1204-AE

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92072

BAND,L=149

92072-031

$3.97

130

BOLT,FLANGED,6X14

130G0614

Unavailable

130A

BOLT-FLANGED,6X18

130G0618

Unavailable

130B

BOLT-FLANGED,6X20

130G0620

Unavailable

130C

BOLT-FLANGED,6X30

130G0630

Unavailable
