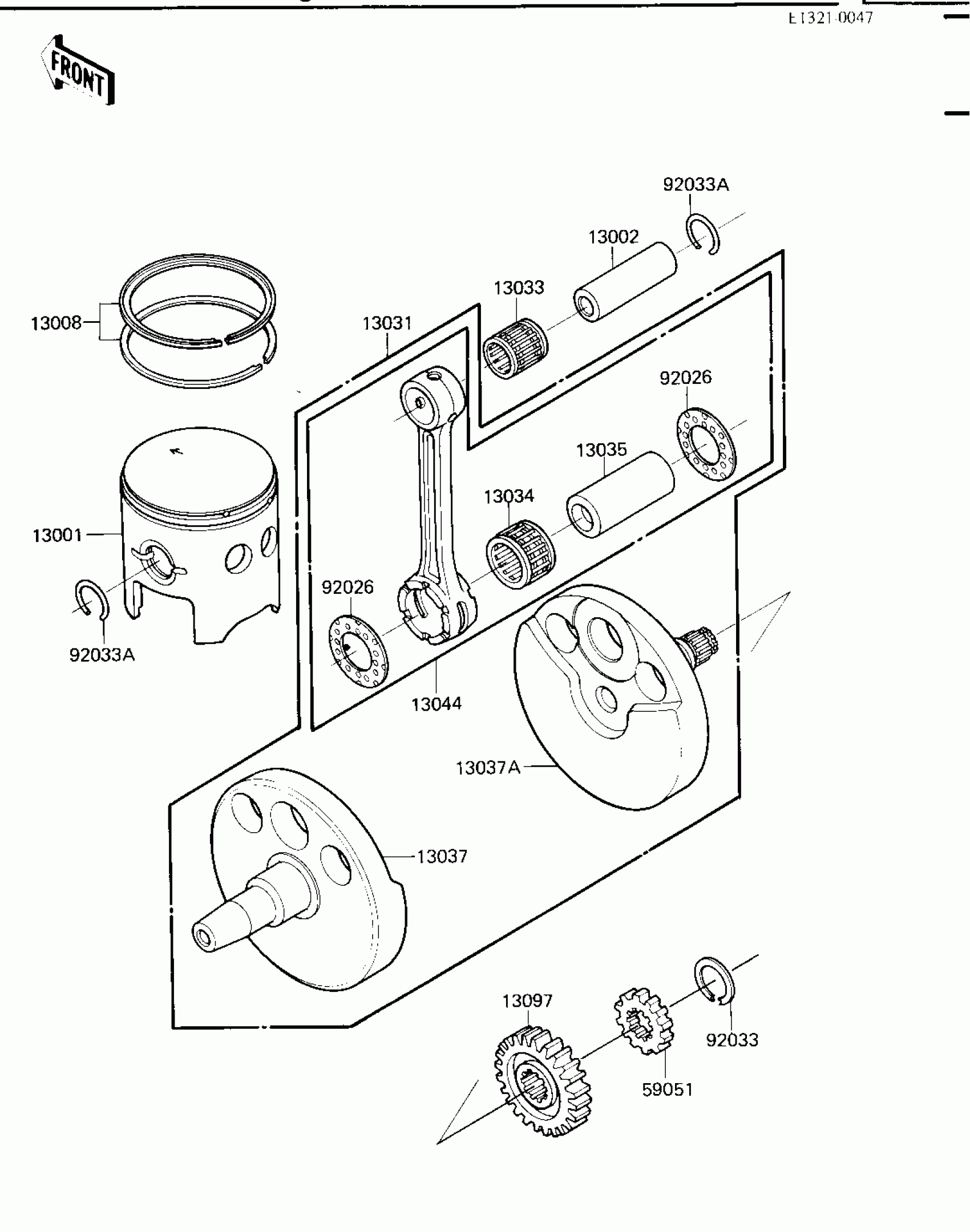

Kawasaki KX250 CRANKSHAFT/PISTON ('84 KX250-C2) Diagram
#
Description
Price
13001
PISTON,STD
13001-1004
Unavailable
13002
PIN-PISTON
13002-017
Unavailable
13008
RING SET,STD
13008-5008
Unavailable
13031
CRANKSHAFT-COMP
13031-1189
Unavailable
13034
BEARING-BIG END
13034-1034
Unavailable
13037
CRANKSHAFT
13037-1097
Unavailable
13037A
CRANKSHAFT,RH
13037-1158
Unavailable
13044
SET-CONNECTING ROD
13044-5045
Unavailable
13097
GEAR-PRIMARY SPUR,20T
13097-1070
Unavailable
59051
GEAR-SPUR,WATER PUMP,
59051-1049
Unavailable
