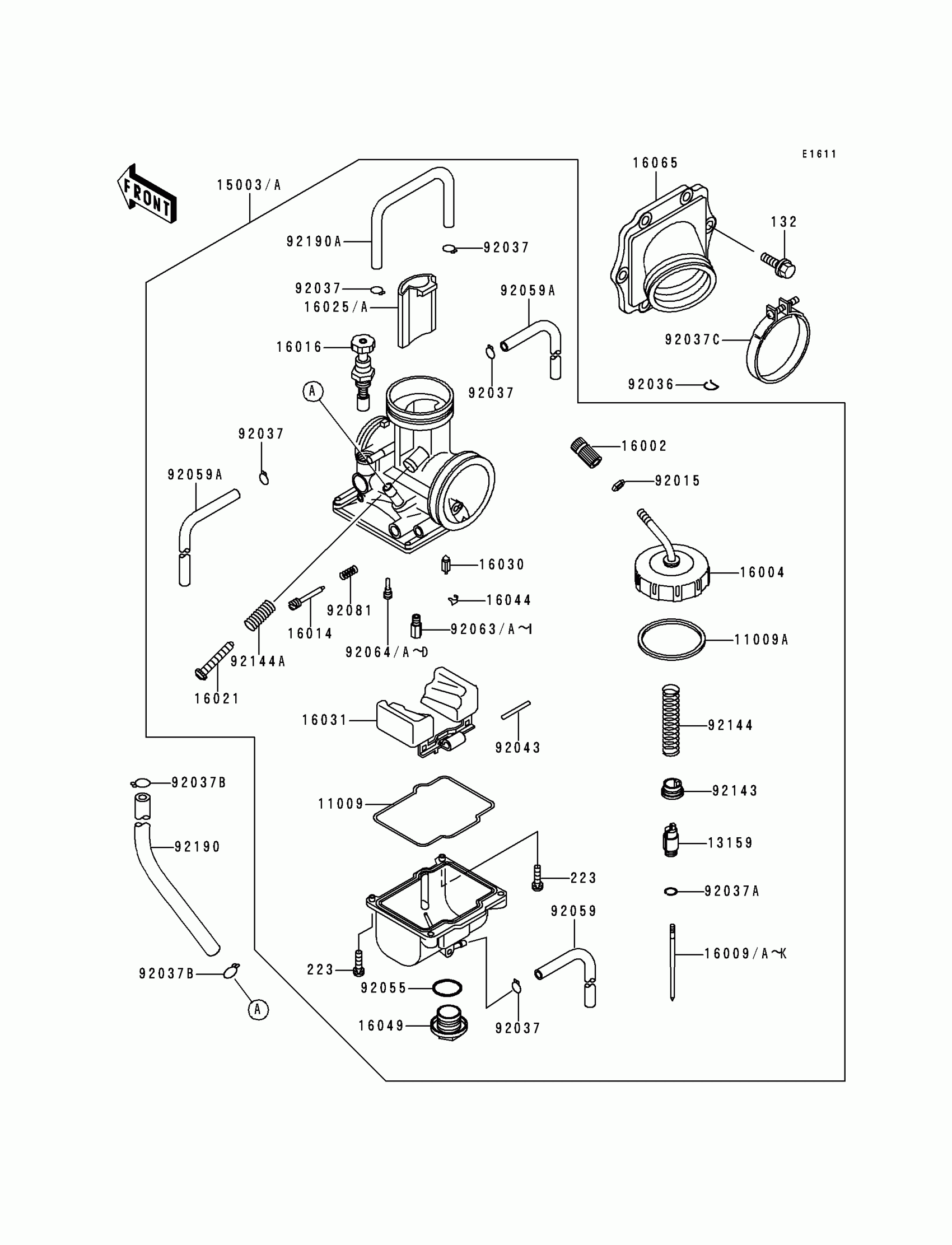

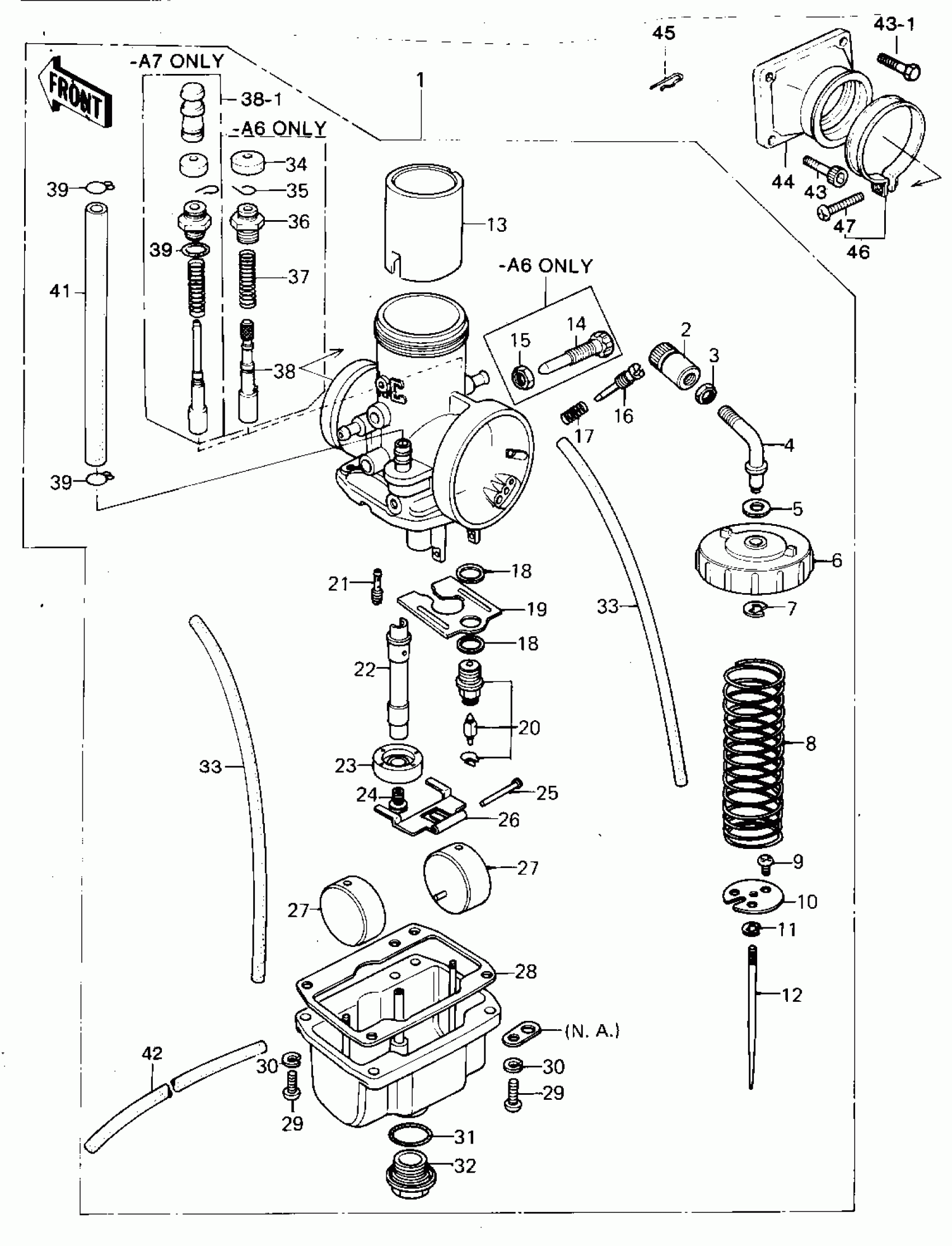

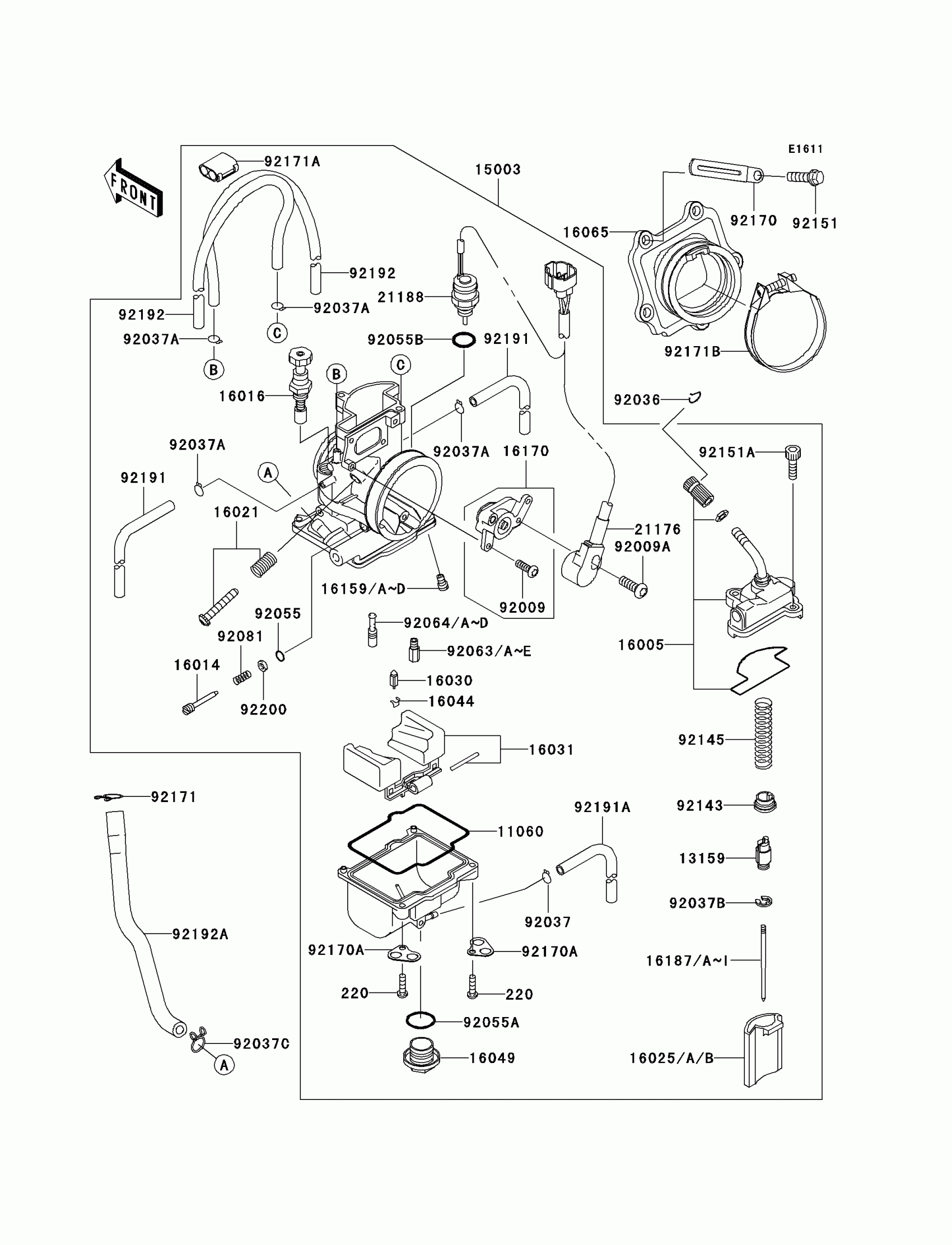

Kawasaki KX250 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1338

Unavailable

2

ADJUSTER-CABLE

16002-1006

Unavailable

3

NUT,CABLE ADJUST LOCK

16003-004

$7.53

4

GUIDE,CABLE

13070-1014

Unavailable

5

GASKET,CABLE GUIDE

11009-1191

Unavailable

6

TOP,MIXING CHAMBER

16004-1010

$36.47

7

CLAMP,CABLE GUIDE

16008-011

Unavailable

8

SPRING-THROTTLE VALV

16006-016

Unavailable

9

SCREW,4X5

92009-1037

$2.83

10

SEAT,THROTTLE VALVE

16007-1007

Unavailable

11

CLAMP,E-TYPE

16008-010

$7.02

12

JET NEEDLE,6FL28

16009-1033

Unavailable

13

VALVE,THROTTLE,CA,3.0

16025-1053

$112.41

16

SCREW

16014-006

$16.07

17

SPRING,PILOT AIR SCREW

16022-007

$7.97

18

GASKET,FLOAT VALVE

11009-1076

Unavailable

19

BAFFLE-CARB

16038-019

$16.85

20

FLOAT VALVE ASSY

16030-020

$84.02

21

JET-PILOT,#30

92064-022

$15.97

22

NEEDLE JET,R-4

16017-1080

$33.93

23

HOLDER-CARBURETOR

16065-1052

Unavailable

24

MAIN JET,#172.5R

92063-1027

Unavailable

24

MAIN JET,#165R

92063-1020

Unavailable

24

MAIN JET,#167.5R

92063-1021

Unavailable

24

MAIN JET,#170R

92063-1022

Unavailable

24

MAIN JET,#175R

92063-1039

Unavailable

24

MAIN JET,#177-5R

92063-1040

Unavailable

25

PIN,FLOAT

16032-008

$5.95

26

ARM-FLOAT

16055-009

Unavailable

27

FLOAT

16031-029

$65.47

28

GASKET,FLOAT CHAMBER

16019-028

Unavailable

29

SCREW PAN HEAD 5X16

220B0516A

$1.49

30

WASHER SPRING 5MM

461F0500

Unavailable

31

GASKET,MAIN JET COVER

16038-009

Unavailable

32

COVER-MAIN JET

16049-006

Unavailable

38-1

PLUNGER,STARTER

16016-1026

Unavailable

39

O RING,9MM

670B1509

$2.72

41

HOSE,FUEL,6.5OX11.5O

92059-1026

Unavailable

42

TUBE,3.5X6.5X290,BRTH

92059-1017

Unavailable

43-1

BOLT-FLANGED,6X20

130G0620

Unavailable

44

HOLDER,CARBURETOR

16065-1029

Unavailable

45

RING-SNAP

92036-018

$2.97

46

CLAMP,CARBURETOR HLDR

92037-116

$13.76

47

SCREW-PAN-CROS

220B0535

$2.80
