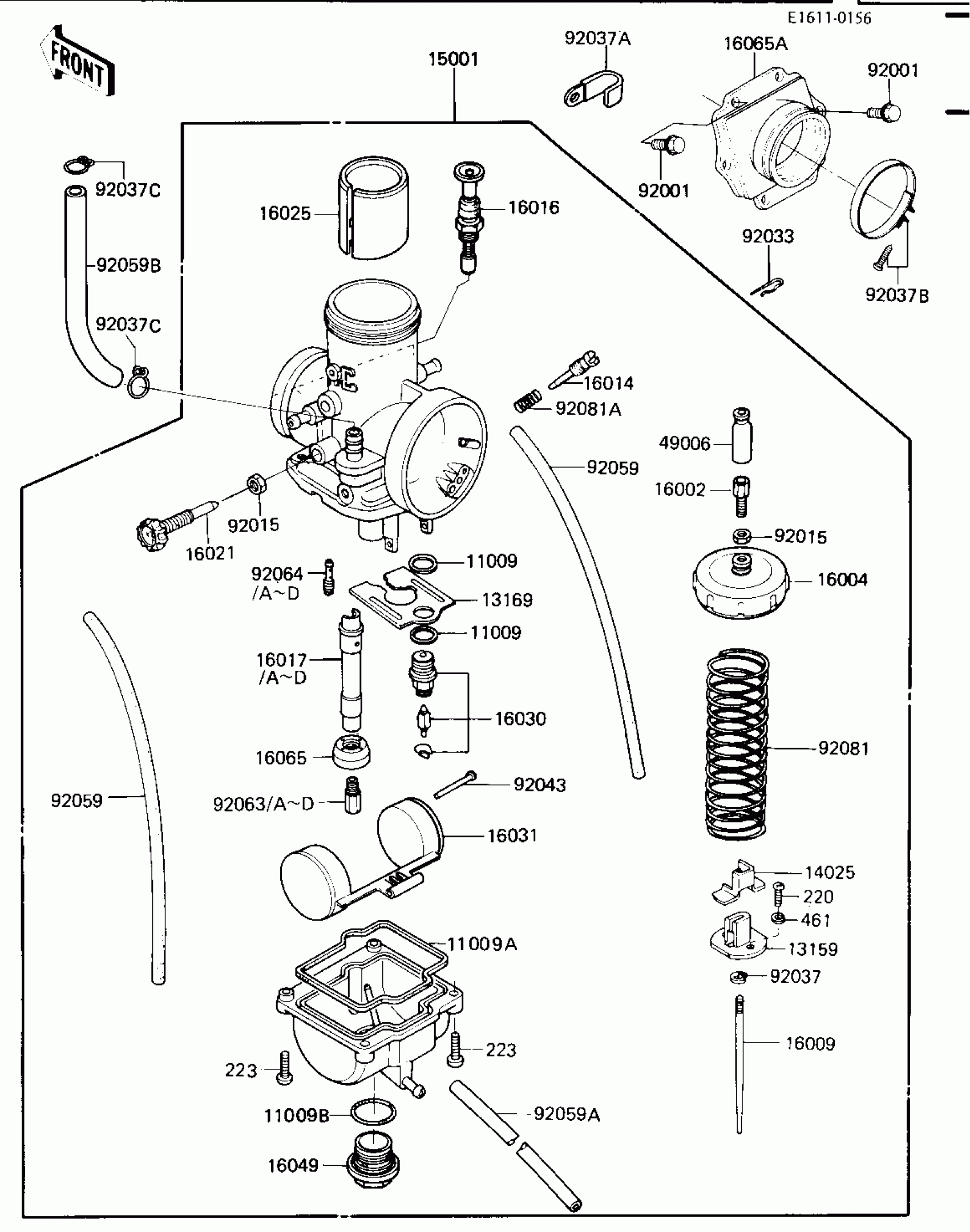

Kawasaki KX250 CARBURETOR ('84 KX250-C2) Diagram

#

Description
Price

11009

GASKET,FLOAT VALVE

11009-1076

Unavailable

11009A

GASKET,FLOAT CHAMBER

16019-028

Unavailable

11009B

GASKET,MAIN JET COVER

16038-009

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13169

PLATE,FLOAT CHAMBER

13169-1520

Unavailable

14025

COVER,THROTTLE

14025-1478

Unavailable

15001

CARBURETOR

16001-1927

$280.69

16002

ADJUSTER-CABLE

16002-011

$11.06

16004

CAP-MIXING CHAMBER

16004-026

Unavailable

16009

NEEDLE-JET,6J04

16009-1225

Unavailable

16014

SCREW

16014-006

$16.07

16016

PLUNGER,STARTER

16016-1026

Unavailable

16017

JET-NEEDLE,R-4

16017-1212

$46.67

16017A

JET-NEEDLE,R-6

16017-1213

$46.67

16017B

JET-NEEDLE,R-2

16017-1250

Unavailable

16017C

JET-NEEDLE,R-0

16017-1238

Unavailable

16017D

JET-NEEDLE,Q-8

16017-1239

$46.67

16021

SCREW-THROTTLE STOP

16021-1108

Unavailable

16025

VALVE-THROTTLE,CA 2.5

16025-1112

$99.81

16030

VALVE-FLOAT

16030-1015

Unavailable

16031

FLOAT

16031-030

Unavailable

16049

COVER,MAIN JET

16049-1005

Unavailable

16065

HOLDER-CARBURETOR

16065-1040

Unavailable

16065A

HOLDER-CARBURETOR

16065-1048

Unavailable

49006

BOOT,CARBURETOR

49006-1169

Unavailable

92001

BOLT-FLANGED-SMALL

132G0620

Unavailable

92015

NUT,ADJUST LOCK

16003-006

$5.84

92033

RING-SNAP

92036-018

$3.10

92037

CLAMP,E-TYPE

16008-010

$8.95

92037A

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037B

CLAMP,CARBURETOR HOL

92037-1313

Unavailable

92037C

CLAMP,TUBE

92037-147

$5.84

92043

PIN,FLOAT

16032-008

$5.95

92059

TUBE,3.5X6.5X410

92059-1142

Unavailable

92059A

TUBE,3.5X6.5X300

92059-1233

$6.27

92059B

TUBE,FUEL,6.5X11.5

92059-1252

$8.56

92063

JET-MAIN,#300

92063-045

Unavailable

92063A

JET-MAIN,#310

92063-046

Unavailable

92063B

JET-MAIN,#320

92063-047

Unavailable

92063C

JET-MAIN,#330

92063-048

$16.59

92063D

JET-MAIN,#340

92063-049

Unavailable

92064

JET-PILOT,#30

92064-022

$15.97

92064A

JET-PILOT NO 35

92064-023

$19.25

92064B

JET-PILOT NO 40

92064-024

$21.93

92064C

JET-PILOT,#25

92064-032

$18.08

92064D

JET-PILOT,#27.5

92064-1033

$15.97

92081

SPRING,THROTTLE VALVE

16006-028

$10.61

92081A

SPRING,PILOT AIR SCREW

16022-007

$7.97

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

223

SCREW-PAN-WS-CROS,5X16

223B0516

Unavailable

461

WASHER SPRING 3MM

461F0300

Unavailable
