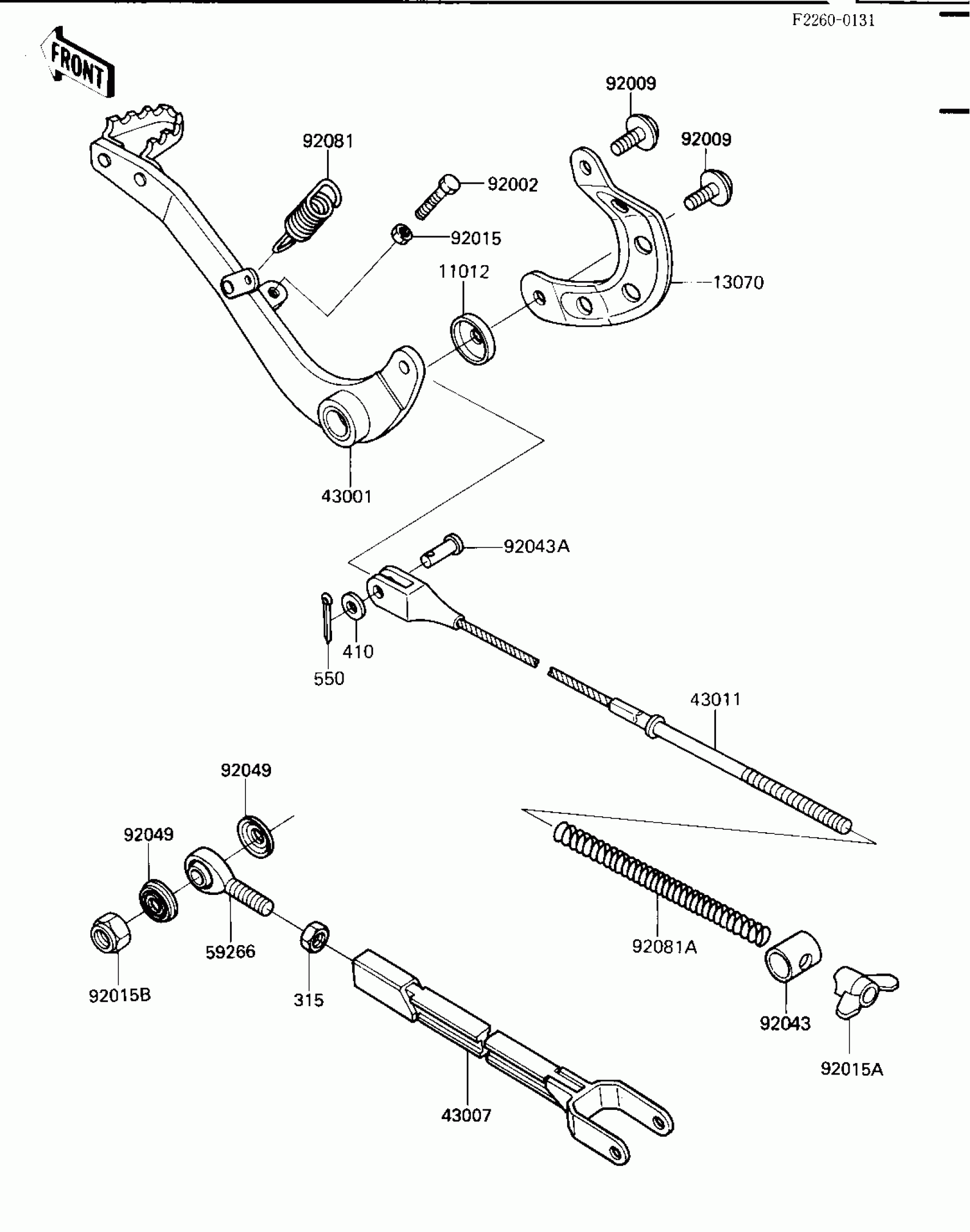

Kawasaki KX250 BRAKE PEDAL/TORQUE LINK ('84 KX250-C2) Diagram

Description

Price

11012

CAP

11012-1204

Unavailable

13070

GUIDE,BRAKE ROD

13070-1072

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1159

Unavailable

43007

ROD-TORQUE

43007-1101

$120.00

43011

ROD-BRAKE

43011-1107

Unavailable

59266

JOINT,BALL

59266-1005

$89.38

92002

BOLT,6X20

92002-1373

$3.92

92009

SCREW,6X10,WHITE

92009-1286

$3.43

92015

NUT,6MM

92015-1391

$2.05

92015A

NUT,WING,6MM

92015-4004

$5.81

92015B

NUT,LOCK,10MM

92019-021

$4.83

92043

PIN,BRAKE

92043-1024

$10.44

92043A

PIN,6X17

92043-107

Unavailable

92049

OIL SEAL,BALL JOINT

92049-1072

Unavailable

92081

SPRING RETURN

92081-1059

Unavailable

92081A

SPRING,BRAKE ROD

92081-1688

$3.69

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

550

PIN COTTER 2.0X15

550D2015

Unavailable
