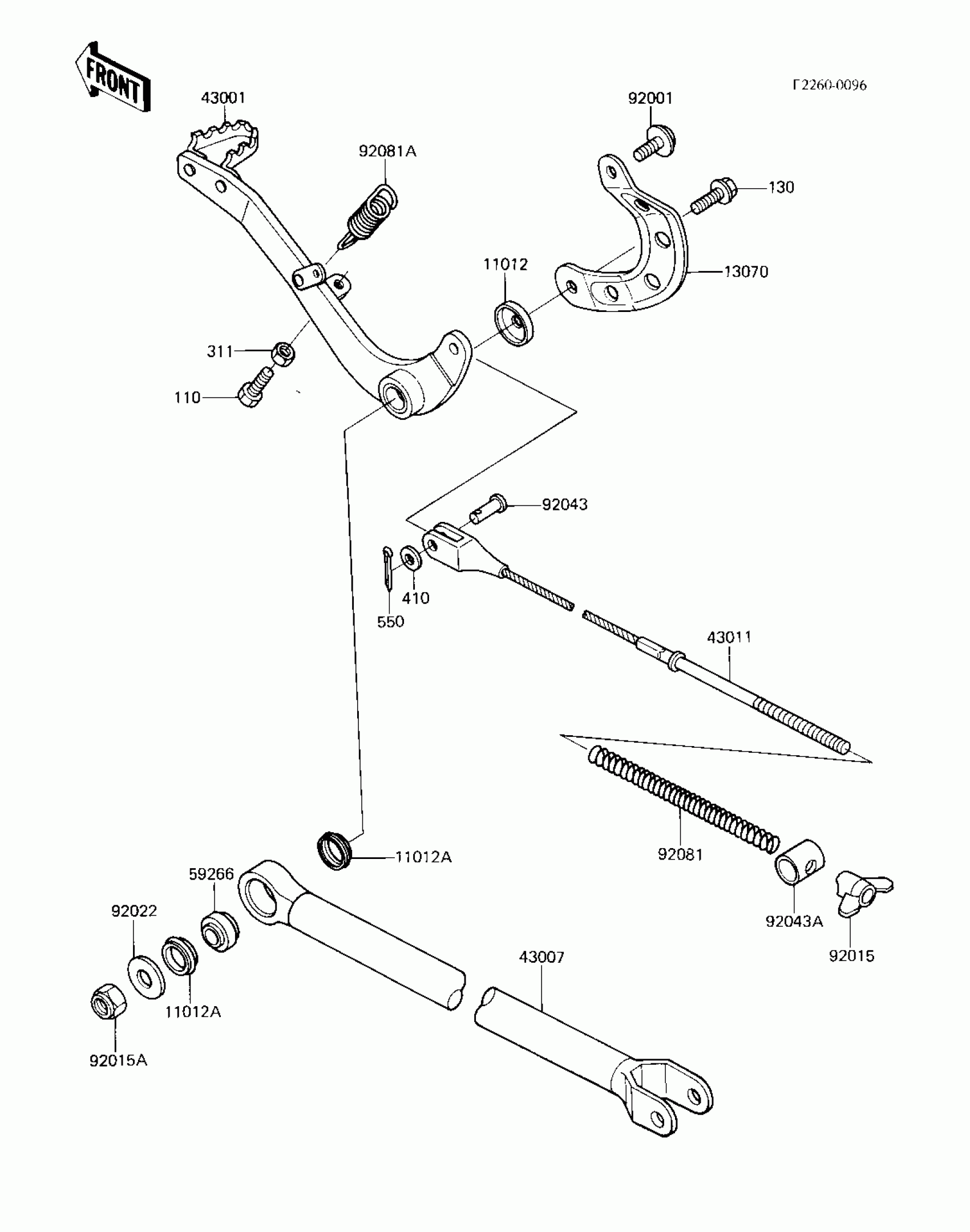

Kawasaki KX250 BRAKE PEDAL/TORQUE LINK ('83 KX250-C1) Diagram

Description

Price

11012

CAP

11012-1204

Unavailable

11012A

CAP,TORQUE ROD

11012-1260

Unavailable

13070

GUIDE,BRAKE ROD

13070-1072

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1103

Unavailable

43007

ROD-TORQUE

43007-1040

Unavailable

43011

ROD-BRAKE

43011-1058

Unavailable

59266

JOINT-BALL,TORQUE ROD

59266-1010

Unavailable

92001

SCREW,6X10,WHITE

92009-1286

$3.43

92015

NUT,WING,6MM

92015-4004

$5.81

92015A

NUT,LOCK,10MM

92019-021

$4.83

92022

WASHER,10.5X24X1.6

92022-1137

$3.92

92043

PIN,6X17

92043-064

$3.72

92043A

PIN,BRAKE

92043-1024

$10.44

92081

SPRING,BRAKE ROD

43012-001

$3.69

92081A

SPRING RETURN

92081-1059

Unavailable

110

BOLT-UPSET,6X20

112G0620

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

550

PIN COTTER 2.0X15

550D2015

Unavailable
