1979 Kawasaki KX250-A5 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1979 Kawasaki KX250-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

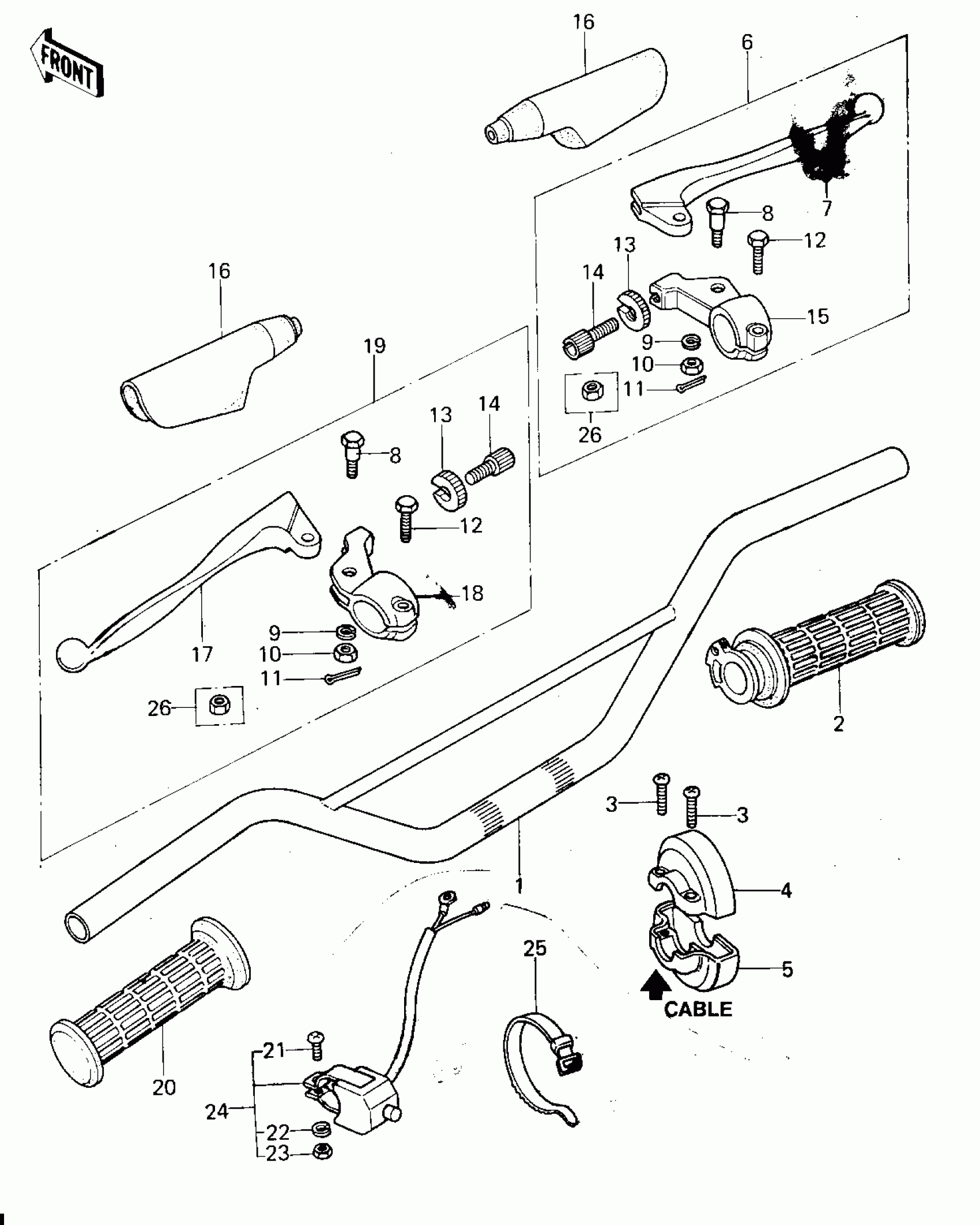

1979 Kawasaki KX250-A5 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

HANDLEBAR

46003-1020

Out of stock

1

HANDLEBAR

46003-1034

Out of stock

2

GRIP ASSY,THROTTLE

46019-1002

Out of stock

2

GRIP ASSY,THROTTLE

46019-1009

Out of stock

3

SCREW-PAN-CROS

220B0520

Out of stock

4

CASE,R.H,GRIP,UPPER

32099-1014

Out of stock

5

HOUSING-ASSY-CONTROL

46091-5006

Out of stock

6

LEVER ASSY,FRONT BRA

46076-1003

Out of stock

7

FRONT BRAKE LEVER

46058-018

$58.85

In stock

8

BOLT,HEX HEAD,6MM

92001-140

Out of stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

NUT CASTLE

320B0600

Out of stock

11

PIN-COTTER,1.6X15

550D1615

Out of stock

12

BOLT-UPSET

112N0620

Out of stock

13

NUT,CABLE ADJUST

46056-006

$8.71

In stock

14

$14.99

In stock

15

HOLDER,F.BRAKE LEVER

46060-010-21

$69.80

In stock

16

DUST COVER

46071-003

Out of stock

17

LEVER, CLUTCH

46092-021

Out of stock

18

HOLDER,CLUTCH LEVER

46094-014-21

Out of stock

19

LEVER ASSY,CLUTCH

46076-1004

Out of stock

20

GRIP ASSY,L.H GRIP

46075-031

Out of stock

20

RUBBER,L.H.GRIP,L.GRE

46075-1006

Out of stock

21

SCREW PAN HEAD 3X14

220E0314A

Out of stock

22

WASHER SPRING 3MM

461F0300

Out of stock

23

NUT-HEX

311B0300

Out of stock

24

SWITCH,ASSY,ENG STOP

27010-1018

Out of stock

25

BAND,L=123

92072-030

Out of stock

26

NUT,LOCK,6MM

92019-008

Out of stock
