1976 Kawasaki KX250-A3 Ignition Diagram

← All diagrams

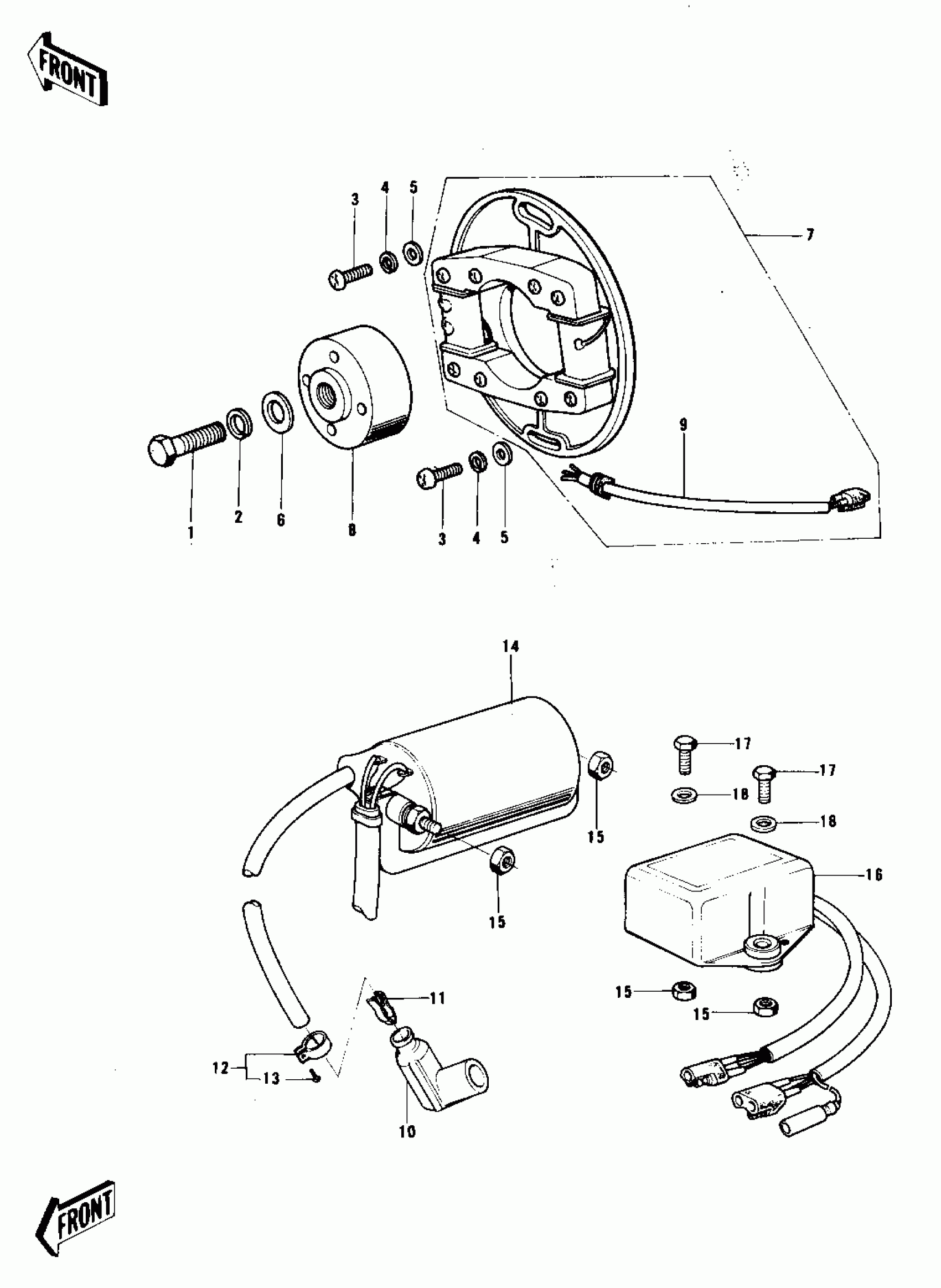

Find the part on the Ignition diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KX250-A3 Ignition Diagram

#

Description
Price
Status
Order Qty

1

BOLT

92001-1578

$6.81

In stock

2

WASHER SPRING 8MM

461F0800

Out of stock

3

SCREW PAN HEAD 6X25

220B0625

Out of stock

4

WASHER SPRING 6MM

461F0600

Out of stock

5

$1.19

In stock

6

WASHER,8.5X22X3.2

92022-276

Out of stock

7

STATOR ASSY

21003-020

$625.05

In stock

8

ROTOR,MAGNETO

21007-026

$352.20

In stock

9

$43.36

In stock

10

CAP-SPARK PLUG

21130-1006

Out of stock

11

TERMINAL,PLUG CAP

21169-001

Out of stock

12

CLAMP

92037-1173

$2.92

In stock

13

SCREW-PAN-CROS

220B0310

$3.44

In stock

14

COIL,IGNITION

21121-070

Out of stock

15

NUT,6MM

92019-019

Out of stock

16

IGNITION UNIT

21119-018

$360.27

In stock

17

BOLT-UPSET

112G0618

Out of stock

17

BOLT-UPSET

112G0618

Out of stock

18

WASHER PLAIN

92022-024

$2.92

In stock
