1976 Kawasaki KX250-A3 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

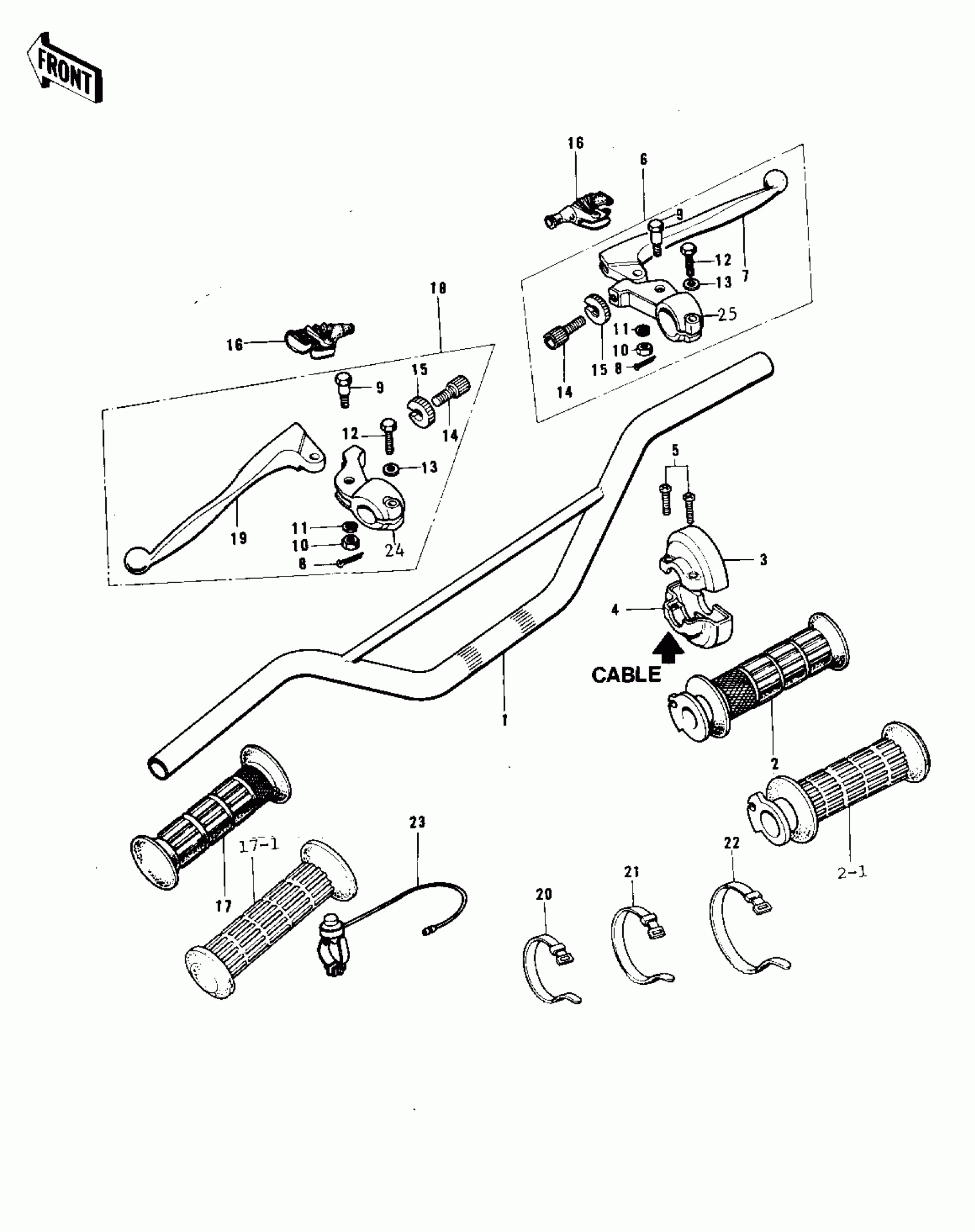

1976 Kawasaki KX250-A3 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

HANDLEBAR

46004-028

Out of stock

1

HANDLEBAR

46004-032

Out of stock

2

GRIP ASSY,THROTTLE

46019-031

Out of stock

2-1

GRIP,THROTTLE

46019-037

Out of stock

3

CASE,R.H,GRIP,UPPER

32099-1014

Out of stock

4

HOUSING-ASSY-CONTROL

46091-5006

Out of stock

5

SCREW-PAN-CROS

220B0518

Out of stock

6

LEVER ASSY,FRNT BRAKE

46021-024

Out of stock

6

LEVER ASSY,FRNT BRAKE

46021-032

Out of stock

7

LEVER,FRONT BRAKE

46058-017

Out of stock

7

FRONT BRAKE LEVER

46058-018

Out of stock

8

PIN-COTTER,1.6X15

550D1615

Out of stock

9

BOLT,HEX HEAD,6MM

92001-140

Out of stock

10

NUT CASTLE

320B0600

Out of stock

11

WASHER SPRING 6MM

461F0600

Out of stock

12

BOLT,6X22

110N0622

Out of stock

13

WASHER PLAIN 6MM

411B0600

Out of stock

14

SCREW,CABLE ADJUST,8MM

46055-009

Out of stock

15

NUT,CABLE ADJUST

46056-006

Out of stock

16

BOOT,LEVER HOLDER

49006-1017

Out of stock

17

RUBBER,L.H GRIP

46075-025

Out of stock

17-1

RUBBER,L.H GRIP

46075-027

Out of stock

18

LEVER ASSY,CLUTCH

46076-037

Out of stock

18

LEVER ASSY,CLUTCH

46076-048

Out of stock

19

LEVER,CLUTCH

46092-020

Out of stock

19

LEVER, CLUTCH

46092-021

Out of stock

20

BAND,L=123

92072-030

Out of stock

21

BAND,L=149

92072-031

Out of stock

21

BAND,L=186

92072-056

Out of stock

22

BAND-RUBBER

92072-035

Out of stock

22

BAND,L=218

92072-032

Out of stock

23

SWITCH,ASSY,ENG STOP

27010-1018

Out of stock

24

HOLDER,CLUTCH LEVER

46094-014

Out of stock

25

HOLDER,FR BRAKE LEVER

46060-010

Out of stock
