1976 Kawasaki KX250-A3 Clutch Diagram

← All diagrams

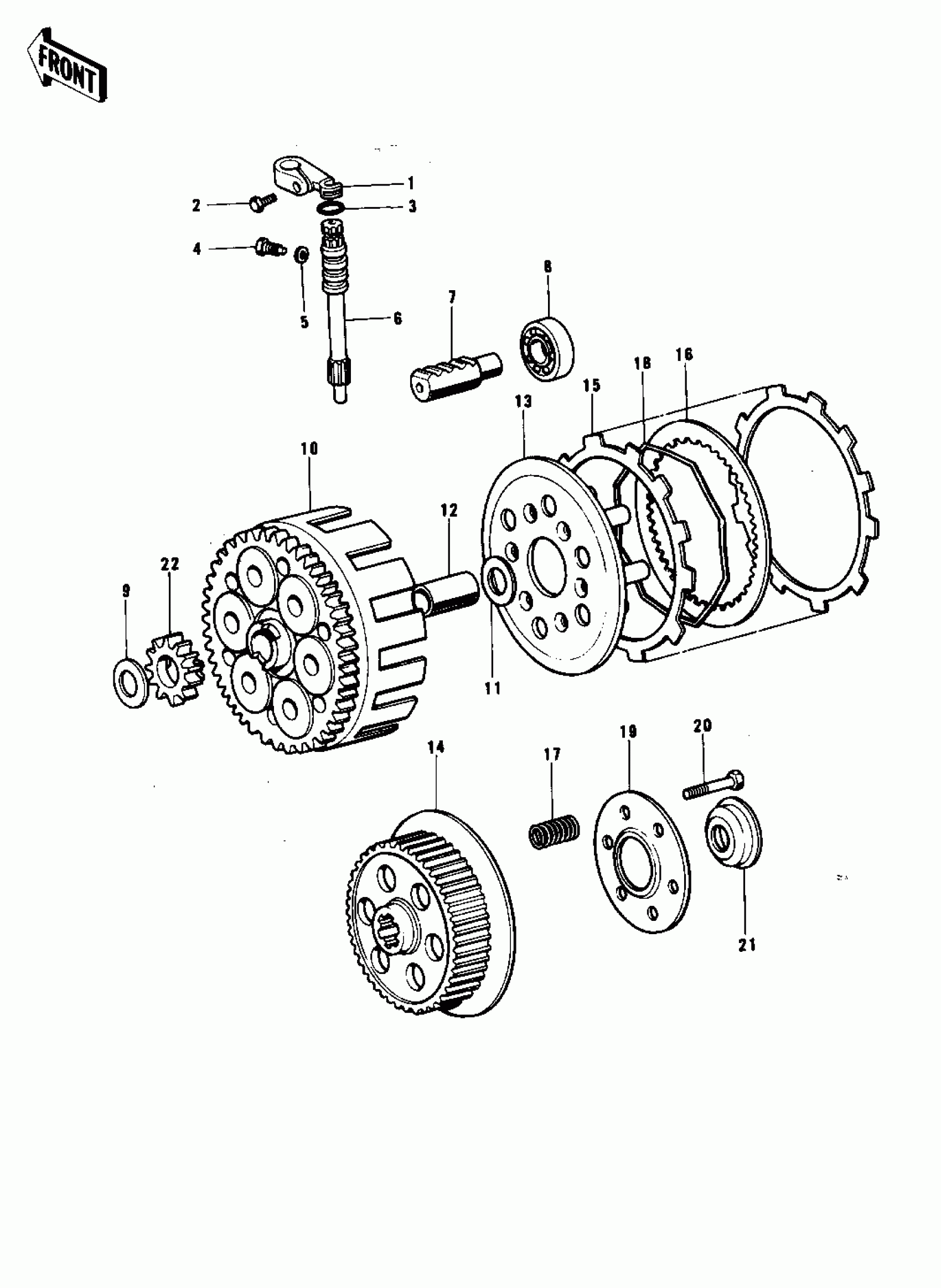

Find the part on the Clutch diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KX250-A3 Clutch Diagram

#

Description
Price
Status
Order Qty

1

LEVER,CLUTCH RELEASE

13168-1042

Out of stock

2

BOLT HEX HEAD 6X18

110N0618

Out of stock

3

O RING,10MM

670B2010

$1.31

In stock

4

BOLT,CLUTCH RELEASE

92003-130

Out of stock

5

GASKET,6X14X0.8

92065-092

$3.46

In stock

6

SHAFT,CLUTCH RELEASE

13106-008

Out of stock

7

ROD,CLUTCH PUSH

13116-025

Out of stock

8

BEARING-BALL,#627

92045-026

$18.51

In stock

9

WASHER,20.5X34X2

92022-031

$12.47

In stock

10

HOUSING,CLUTCH

13095-043

Out of stock

11

WASHER,CLUTCH THRUST

92022-282

Out of stock

12

BUSHING,CLUTCH

92028-150

Out of stock

13

WHEEL,CLUTCH

13086-016

Out of stock

14

HUB,CLUTCH

13087-039

Out of stock

15

PLATE,CLUTCH FRICTION

13088-036

Out of stock

16

PLATE,CLUTCH STEEL

13089-025

Out of stock

17

SPRING,CLUTCH

92081-083

$6.77

In stock

18

RING,CLUTCH STEEL

13229-004

Out of stock

19

PLATE,CLUTCH SPRING

13091-016

Out of stock

20

BOLT-UPSET

112G0618

Out of stock

20

BOLT-UPSET

112G0618

Out of stock

21

PUSHER,CLUTCH RELEASE

13114-008

Out of stock

22

PINION,KICK GEAR 16T

13075-011

Out of stock
