1976 Kawasaki KX250-A3 Carburetor Diagram

← All diagrams

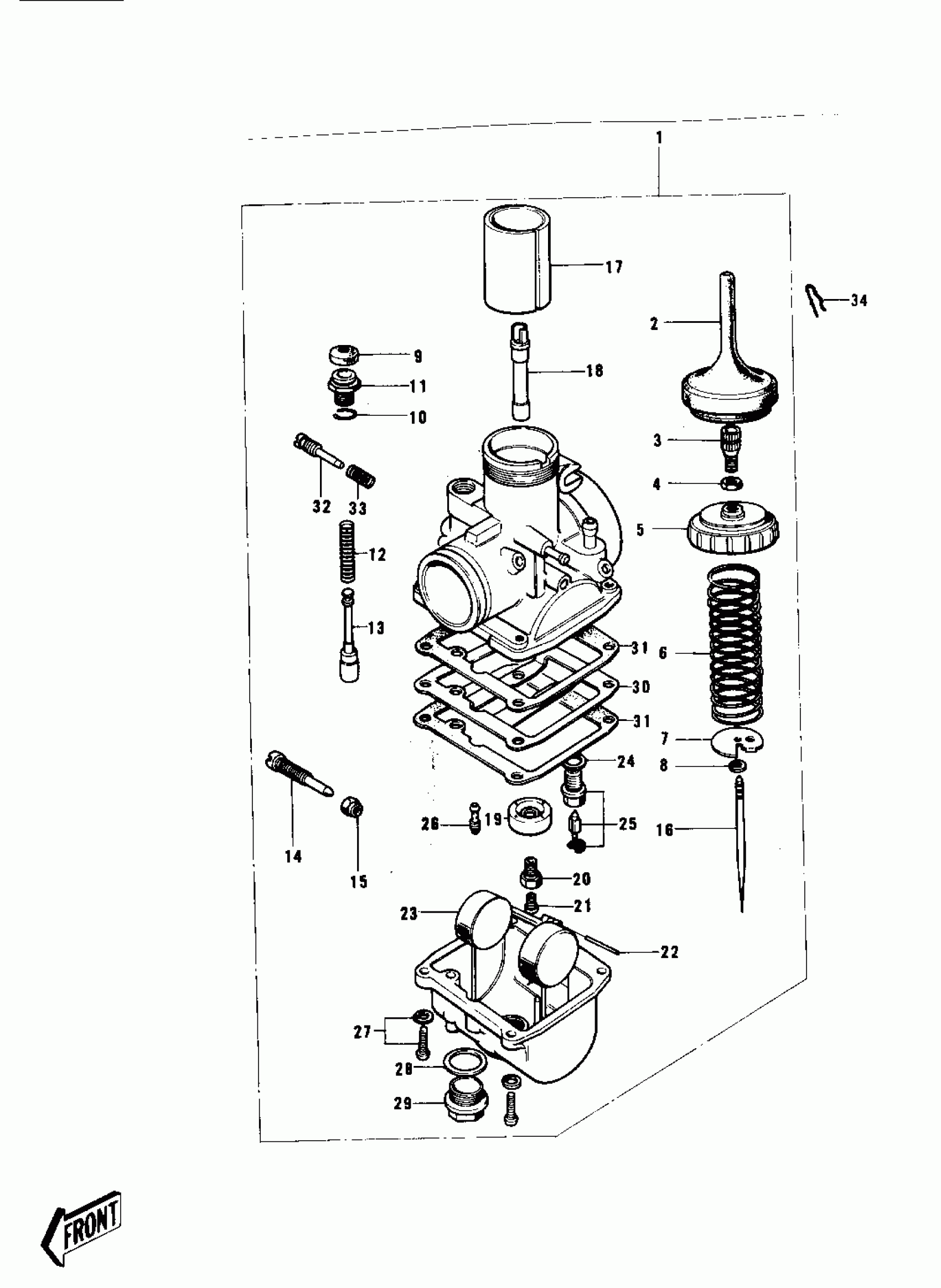

Find the part on the Carburetor diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KX250-A3 Carburetor Diagram

#

Description
Price
Status
Order Qty

1

CARBURETOR ASSY

16001-200

Out of stock

1

CARBURETOR ASSY

16001-242

Out of stock

2

CAP,CABLE ADJUSTER

16036-011

Out of stock

3

ADJUSTER,CABLE

16002-014

Out of stock

4

NUT,ADJUST LOCK

16003-006

Out of stock

5

CAP-MIXING CHAMBER

16004-023

Out of stock

6

SPRING-THROTTLE VALV

16006-016

Out of stock

7

SEAT-SPRING-CARB

16007-022

Out of stock

8

CLAMP,E-TYPE

16008-010

Out of stock

9

CAP,STARTER PLUNGER

16036-013

Out of stock

10

CLAMP

92037-1077

Out of stock

11

CAP-STARTER PLUNGER

16012-021

Out of stock

12

SPRING,STARTER PLUNGR

16013-011

Out of stock

13

PLUNGER ASSY,STARTER

16016-013

Out of stock

14

SCREW,THROTTLE ADJUST

16021-022

Out of stock

15

NUT,CABLE ADJUST LOCK

16003-009

Out of stock

16

JET NEEDLE 6DH2

16009-062

Out of stock

16

JET NEEDLE

16009-065

Out of stock

17

VALVE,THROTTLE CA2.5

16025-068

Out of stock

17

VALVE,THROTTLE CA2.0

16025-077

Out of stock

18

NEEDLE JET P-O

16017-076

Out of stock

19

RING

16065-024

Out of stock

20

HOLDER,MAIN JET

16065-025

Out of stock

21

JET-MAIN NO 142.5R

92063-117

Out of stock

21

MAIN JET,#A137.5

92063-1087

Out of stock

21

MAIN JET,#140A

92063-116

Out of stock

21

JET-MAIN NO 145R

92063-118

Out of stock

21

JET-MAIN NO 147.5R

92063-119

Out of stock

22

PIN,FLOAT

16032-003

Out of stock

23

FLOAT ASSY

16031-025

Out of stock

24

WASHER FLOAT VLV SEAT

16029-004

Out of stock

25

FLOAT VALVE ASSY

16030-022

Out of stock

26

JET-PILOT NO 40

92064-024

Out of stock

26

JET-PILOT NO 45

92064-044

Out of stock

27

SCREW FLOAT CHAMBER

16033-011

Out of stock

28

WASHER-MAIN JET COVER

16034-003

Out of stock

29

COVER,MAIN SET

16049-004

Out of stock

30

PLATE

16038-010

Out of stock

31

GASKET

16019-022

Out of stock

32

SCREW

16014-006

Out of stock

33

SPRING,PILOT AIR SCREW

16022-007

Out of stock

34

RING-SNAP

92036-018

Out of stock
