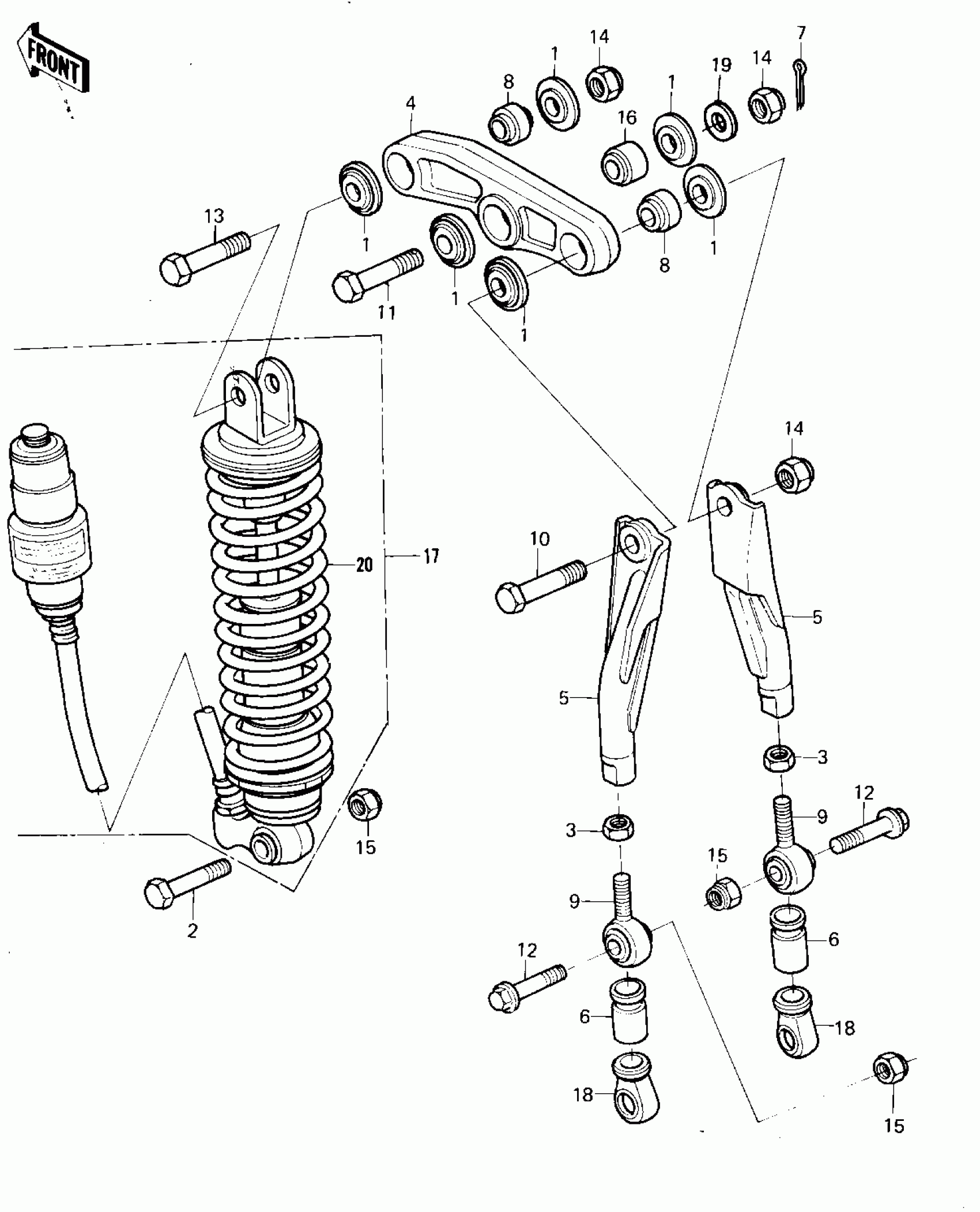

Kawasaki KX125 REAR SUSPENSION/SHOCK ABSORBER ('80 A6) Diagram
#
Description
Price
1
CAP,SUSPENSION ARM
11012-1117
Unavailable
2
BOLT,HEX HEAD,12X55
113P1255A
Unavailable
3
NUT-HEX-FINE
315B1200
Unavailable
6
BOOT,BALL JOINT
49006-1045
Unavailable
7
PIN-COTTER,2.5X25
550D2525
Unavailable
9
JOINT,BALL,SUSPENSIO
59266-1002
Unavailable
10
BOLT,HEX HEAD,14X54
92001-1295
Unavailable
11
BOLT,HEX HEAD,14X60
92001-1335
Unavailable
12
BOLT,HEX HEAD,12X48
92001-1297
Unavailable
13
BOLT,HEX HEAD,14X50
92001-1317
Unavailable
14
NUT-LOCK,14MM
92019-011
Unavailable
16
BUSHING,SUSPENSION A
92028-1087
Unavailable
18
BOOT,BALL JOINT
49006-1046
Unavailable
19
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
