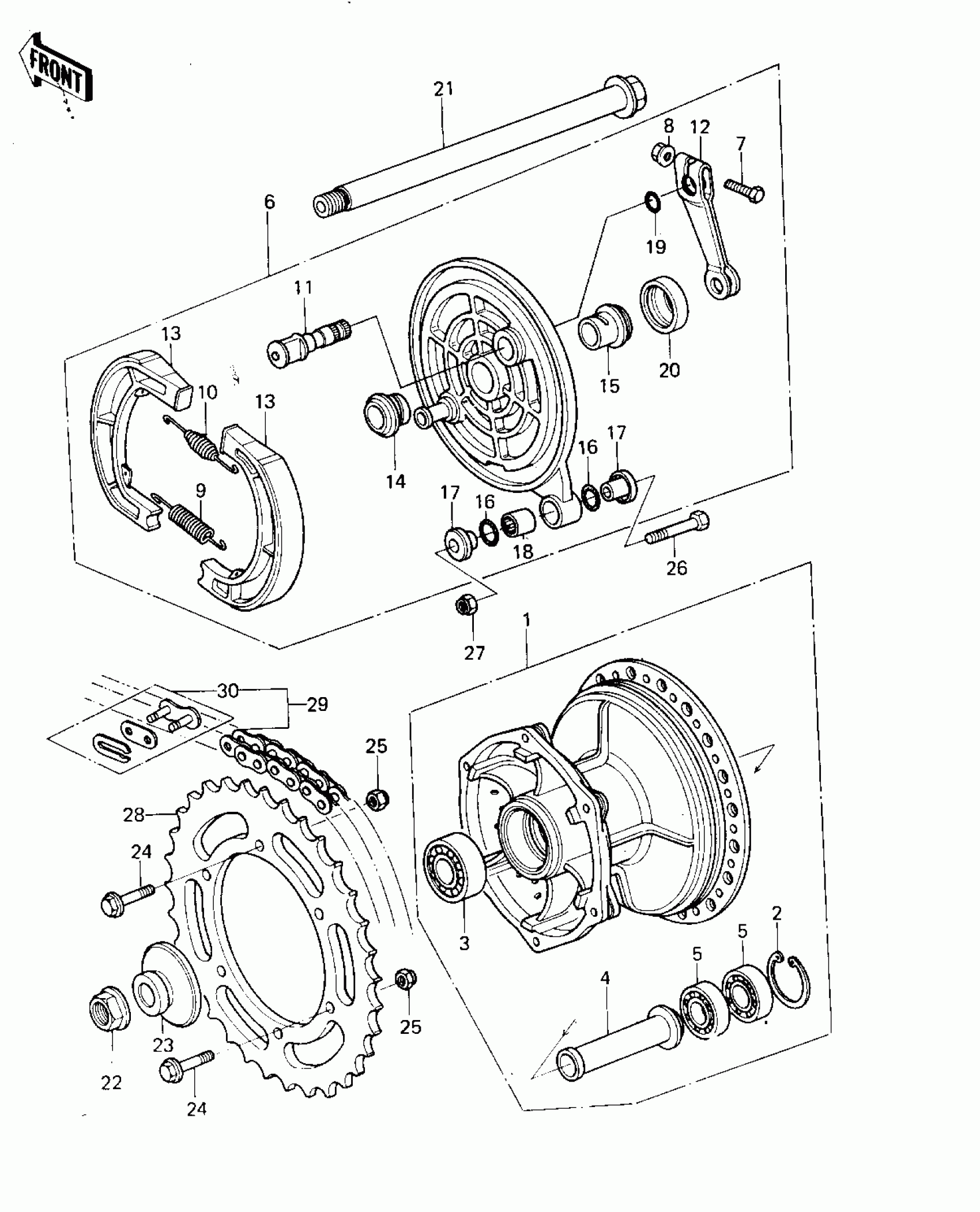

Kawasaki KX125 REAR HUB/BRAKE/CHAIN ('80 A6) Diagram

#

Description
Price

1

DRUM-ASSY,RR BRK

41034-1017

$456.43

2

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

3

BEARING-BALL,#6004UUC3

601B6004UU

$26.40

4

COLLAR,REAR BRAKE

92027-1207

$46.56

5

BEARING-BALL,#6003UC3

601B6003U

$20.98

6

PANEL-ASY,RR BRK

41035-1031

$391.70

7

BOLT-UPSET

112G0630

Unavailable

8

NUT,FLANGED,6MM

92015-1078

Unavailable

9

SPRING,BRAKE SHOE

92081-1766

$6.39

10

SPRING,BRAKE SHOE

92081-1550

$9.20

11

CAM SHAFT,RR BRAKE

41050-1017

Unavailable

12

LEVER-BRAKE CAM

41053-1019

Unavailable

13

SHOE,BRAKE

42019-010

$34.77

14

SLEEVE,REAR BRAKE

42036-1009

Unavailable

15

SLEEVE,REAR PANEL,R.

42036-1035

$80.53

16

O RING,11MM

670B2011

Unavailable

17

COLLAR,L=11.5

92027-1040

Unavailable

18

BEARING-NEEDLE,HK1216LL

92046-1009

$17.71

19

O RING,12MM

670B2012

$2.58

20

OIL SEAL

92093-1004

Unavailable

21

AXLE,REAR

41068-1035

$43.59

22

NUT,16MM

92015-1015

Unavailable

23

COLLAR,REAR AXLE

92027-1206

Unavailable

24

BOLT,HEX HEAD,8X32

92001-1040

Unavailable

25

NUT,LOCK,8MM

92015-1124

$4.30

26

BOLT,FLANGED,8X35

92001-1577

Unavailable

27

NUT,LOCK,8MM

92015-1124

$4.30

28

REAR SPROCKET,52T

42041-1044

$223.25

28

REAR SPROCKET,50T

42041-1043

$94.47

28

REAR SPROCKET,47T

42041-1038

$121.57

29

CHAIN,520X118 QR

92057-1048

$152.28

30

JOINT,520QR

92058-1006

$7.19
