1999 Kawasaki KX125 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 1999 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

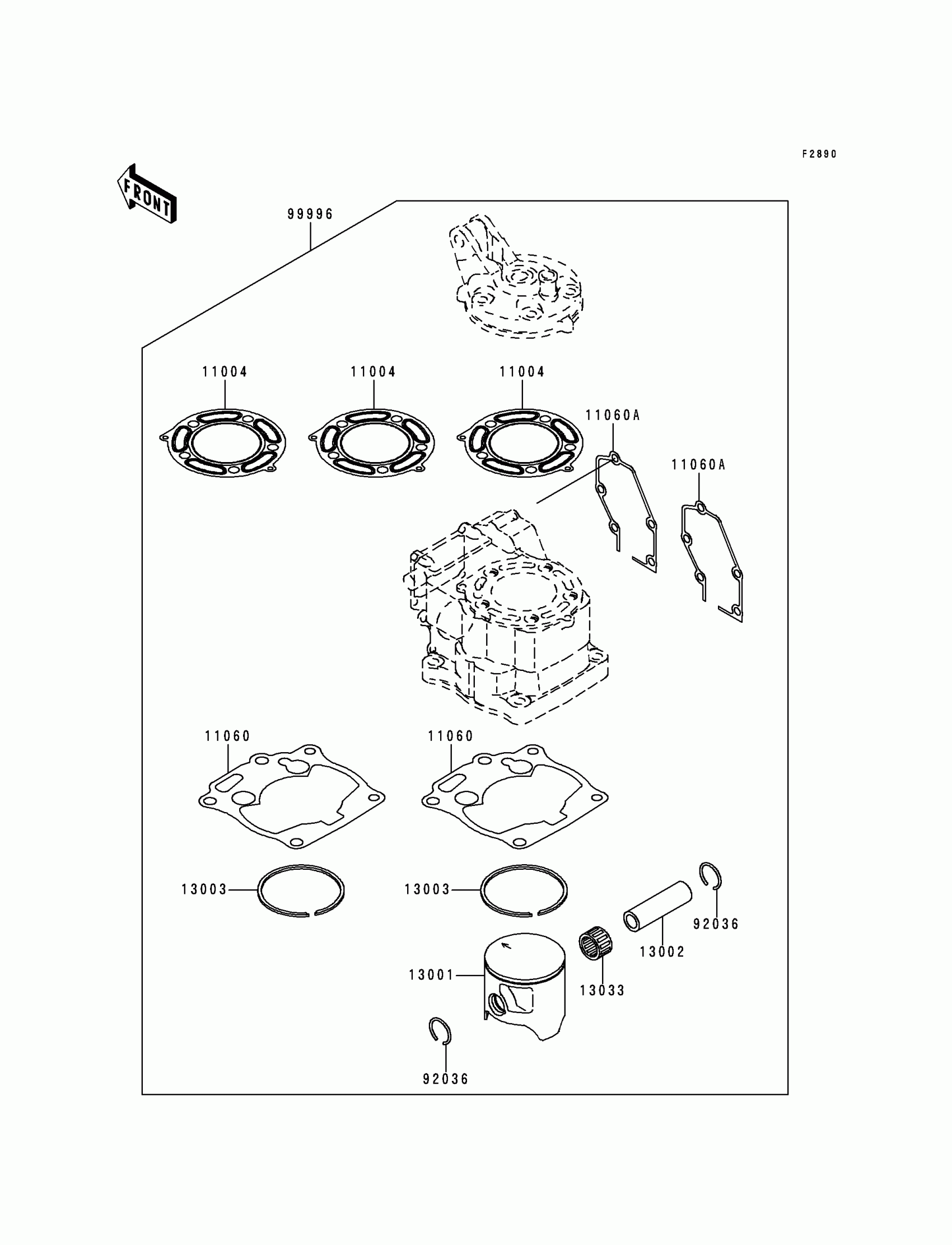

1999 Kawasaki KX125 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD,T=0.26

11004-1300

1

$42.93

In stock

11060

1

$19.73

In stock

11060A

GASKET,RH COVER

11060-1789

1

$9.31

In stock

13001

PISTON-ENGINE

13001-1524

1

$127.61

In stock

13002

PIN-PISTON

13002-1099

1

$21.34

In stock

13003

RING-PISTON TOP

13003-1356

1

$30.33

In stock

13033

BEARING-SMALL END

13033-1057

1
Out of stock

92036

RING-SNAP

92036-005

1

$3.24

In stock

99996

1

$249.13

In stock
