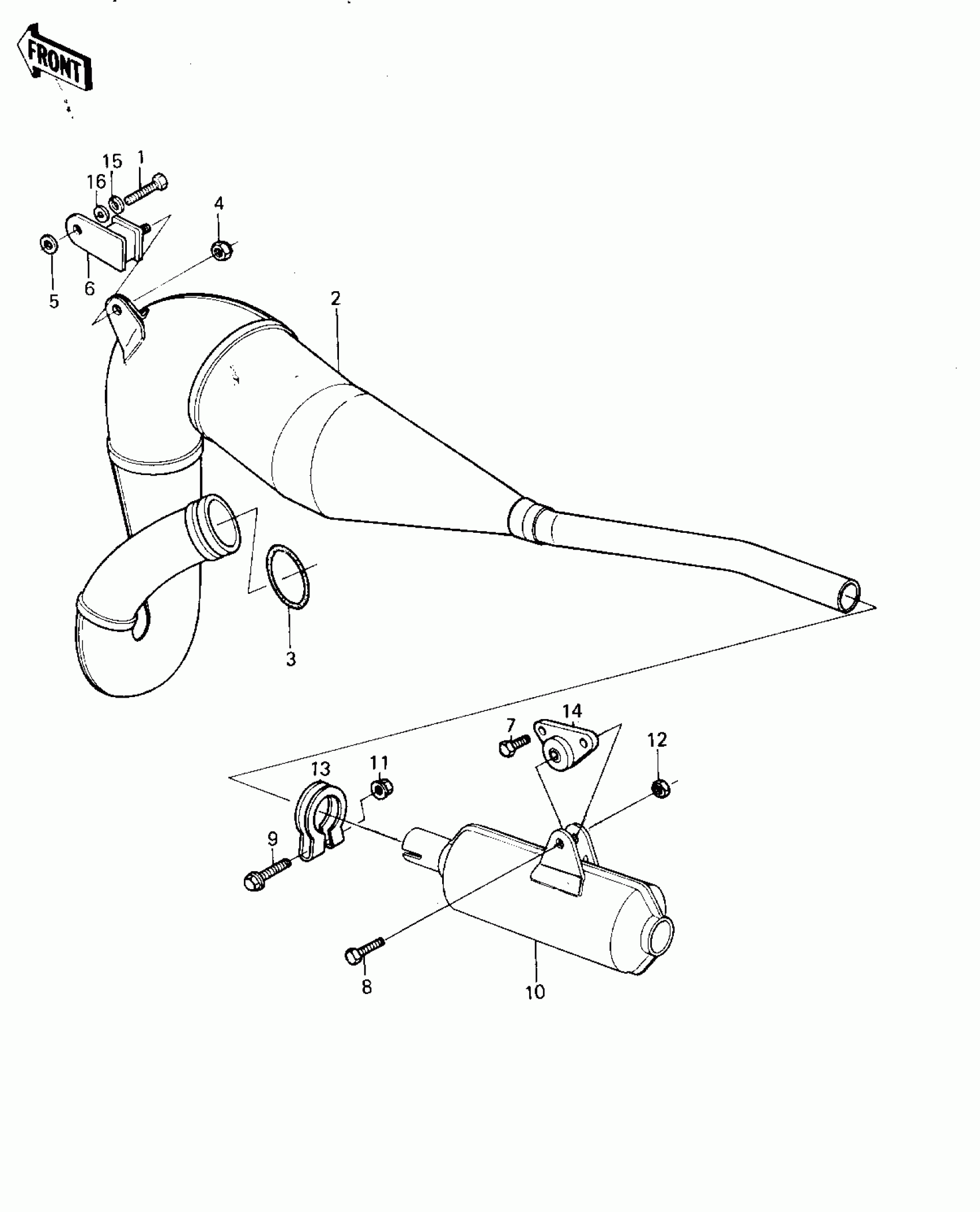

Kawasaki KX125 MUFFLER ('80 A6) Diagram

#

Description

Price

1

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

2

KX125 A6 POWER PIPE

18002-1143

Unavailable

3

O RING,45MM

670E3045

$14.69

4

NUT,LOCK,8MM

92015-1124

$4.30

5

WASHER 8.5X23.5X4.5

92022-218

Unavailable

6

DAMPER,MUFFLER FITING

92075-1060

Unavailable

7

BOLT-UPSET

112G0618

Unavailable

8

BOLT-UPSET

112G0625

Unavailable

9

BOLT,FLANGED,6X35

130H0635

Unavailable

10

MUFFLER ASSY

18001-1105

Unavailable

11

NUT,FLANGED,6MM

92015-1078

Unavailable

12

NUT,LOCK,6MM

92019-008

$3.36

13

CLAMP,MUFFLER

92037-1169

Unavailable

14

DAMPER RUBBER

92075-1046

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

WASHER PLAIN 8MM

411B0800

Unavailable
