1991 Kawasaki KX125 Label Diagram

← All diagrams

Find the part on the Label diagram for your 1991 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

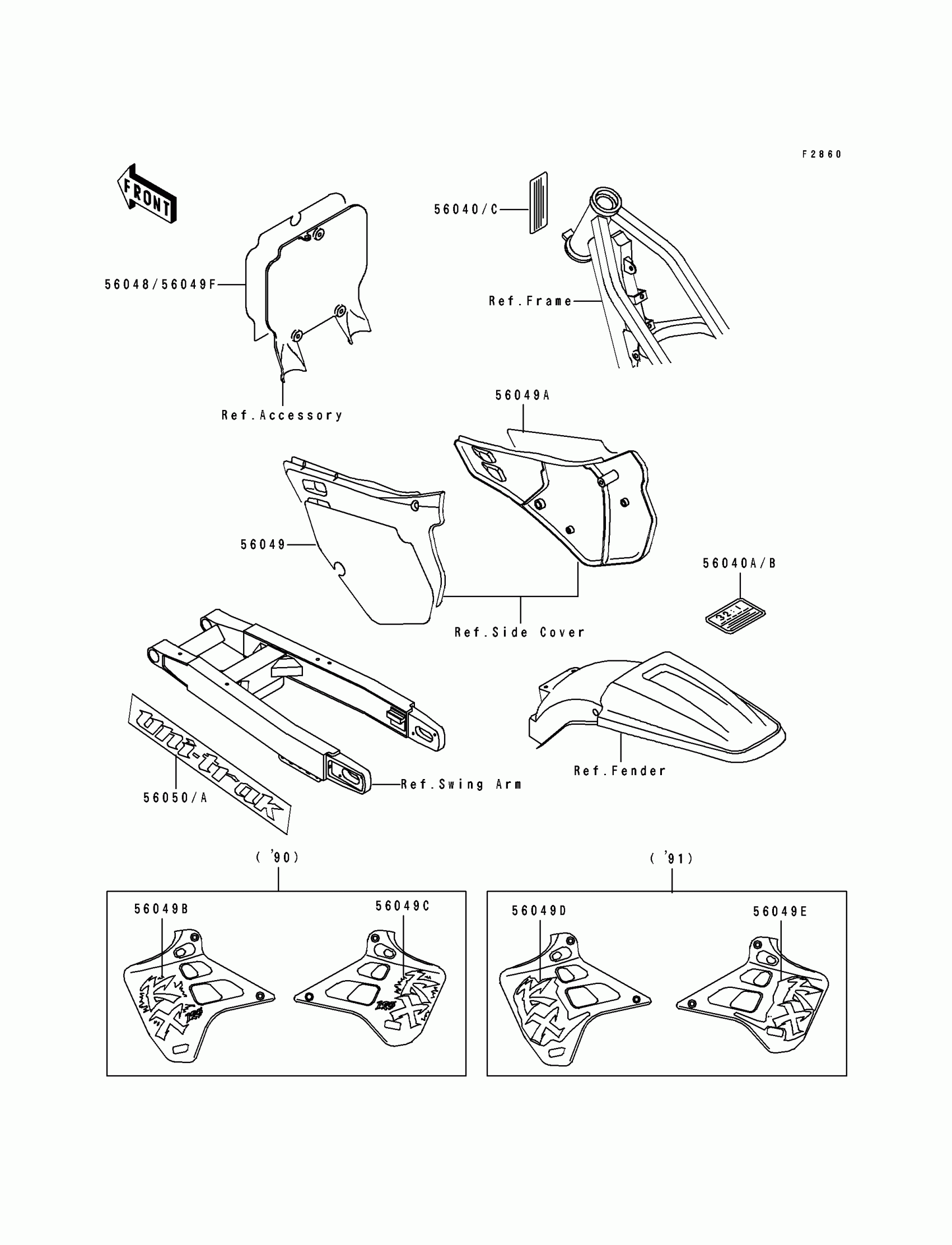

1991 Kawasaki KX125 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56040B

LABEL-WARNING,GASOLINE/OIL

56040-1306

1
Out of stock

56040C

LABEL-WARNING,WARRANTY

56040-1307

1
Out of stock

56049

1

$44.20

In stock

56049A

1

$44.20

In stock

56049D

PATTERN,SHROUD,LH

56049-1761

1
Out of stock

56049E

PATTERN,SHROUD,RH

56049-1763

1
Out of stock

56049F

PATTERN,NUMBER PLATE

56049-1806

1
Out of stock

56050A

MARK,SWING ARM,UNI-TRAK

56050-1668

1
Out of stock
