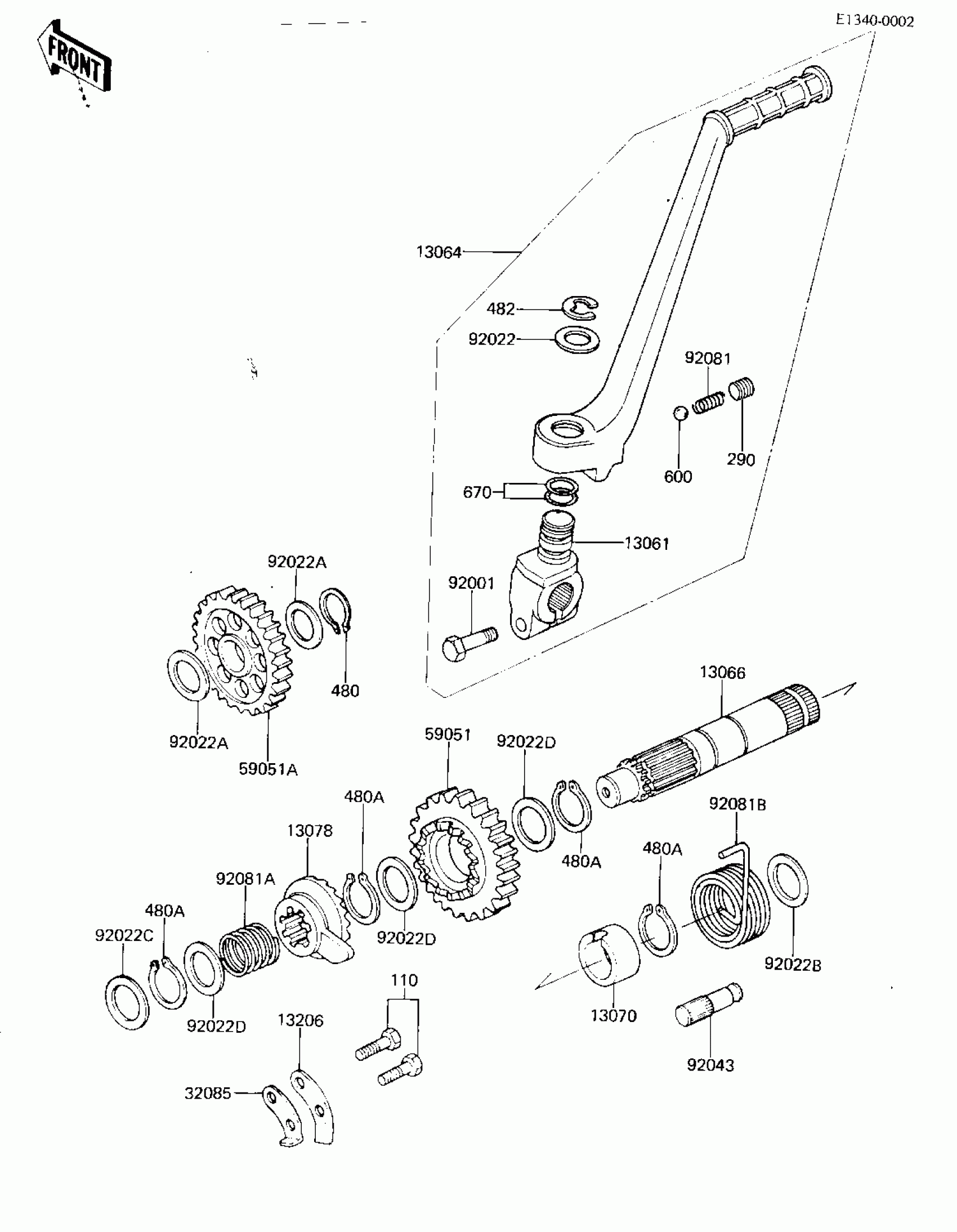

Kawasaki KX125 KICKSTARTER MECHANISM ('81 A7) Diagram

#

Description
Price

13061

BOSS,KICK PEDAL

13061-5001

Unavailable

13064

LEVER-ASSY-KICK PEDA

13064-5005

Unavailable

13066

SHAFT,KICKSTARTER

13066-1005

Unavailable

13070

GUIDE,KICKSPRING

13070-008

Unavailable

13078

RATCHET

13078-1052

$67.80

13206

GUIDE-KICK

13206-1059

Unavailable

32085

STOPPER,KICKSTARTER

32085-1016

Unavailable

59051

GEAR,KICKSTARTER

59051-1008

Unavailable

59051A

IDLE GEAR,KICKSTARTER

59051-1009

Unavailable

92001

BOLT,8X28

92001-1042

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,15.3X25X0.5

92022-1045

Unavailable

92022B

WASHER,PLAIN

92022-268

Unavailable

92022C

WASHER,12.3X20X0.5

92022-269

$1.14

92022D

WASHER,16.8X22X0.5

92022-315

$4.93

92043

PIN

92043-102

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92081B

SPRING,KICKSTARTER

92082-005

Unavailable

110

BOLT-UPSET

112G0618

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

482

CIR CLIP

482K0100

$0.69

600

BALL-STEEL,1/4

600A0800

$0.67

670

O RING,12MM

670B2012

$2.58
