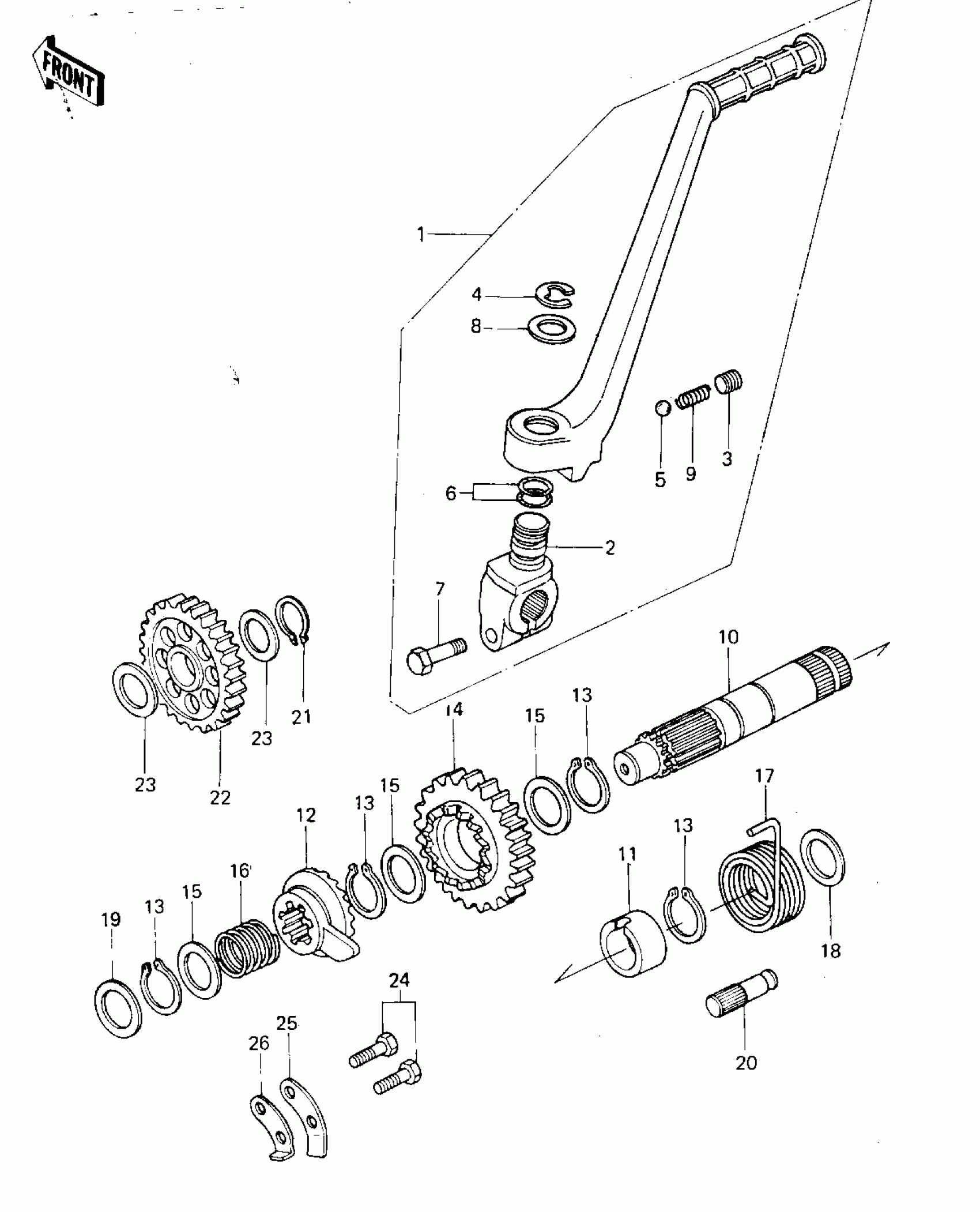

Kawasaki KX125 KICKSTARTER MECHANISM ('80 A6) Diagram

#

Description
Price

1

LEVER-ASSY-KICK PEDA

13064-5005

Unavailable

2

BOSS,KICK PEDAL

13061-5001

Unavailable

3

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

4

CIR CLIP

482K0100

$0.69

5

BALL-STEEL,1/4

600A0800

$0.67

6

O RING,12MM

670B2012

$2.58

7

BOLT,8X28

92001-1042

Unavailable

8

WASHER,15.2X20X1

92022-1019

$4.61

9

SPRING,KICK PEDAL

92081-020

$3.39

10

SHAFT,KICKSTARTER

13066-1005

Unavailable

11

GUIDE,KICKSPRING

13070-008

Unavailable

12

RATCHET

13078-1052

$67.80

13

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

14

GEAR,KICKSTARTER

59051-1008

Unavailable

15

WASHER,16.8X22X0.5

92022-315

$4.93

16

SPRING,RATCHET

92081-122

$6.98

17

SPRING,KICKSTARTER

92082-005

Unavailable

18

WASHER,PLAIN

92022-268

Unavailable

19

WASHER,12.3X20X0.5

92022-269

$1.14

20

PIN

92043-102

Unavailable

21

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

22

IDLE GEAR,KICKSTARTER

59051-1009

Unavailable

23

WASHER,15.3X25X0.5

92022-1045

Unavailable

24

BOLT,6X18

110G0618

Unavailable

25

GUIDE-KICK

13206-1059

Unavailable

26

STOPPER,KICKSTARTER

32085-1016

Unavailable
