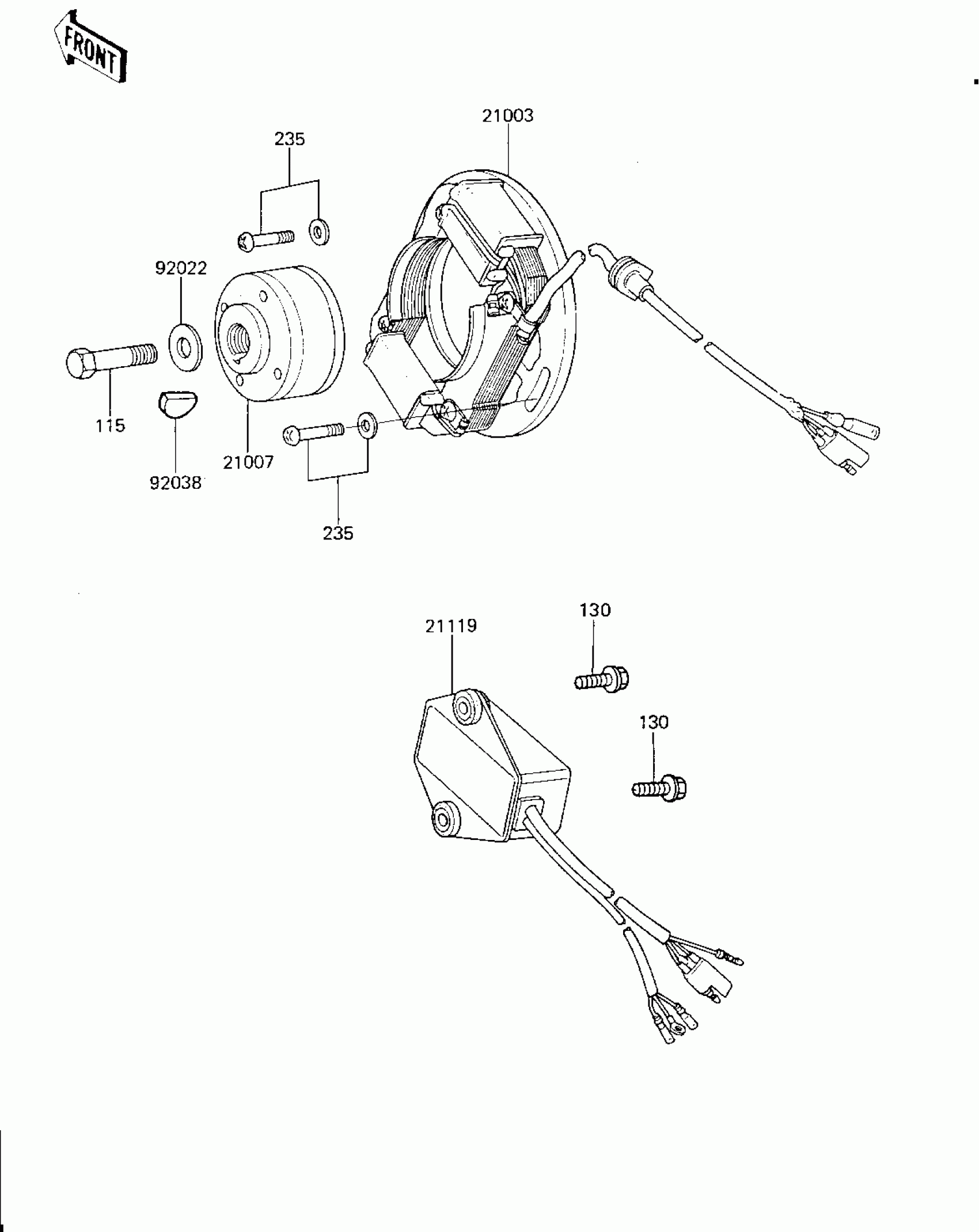

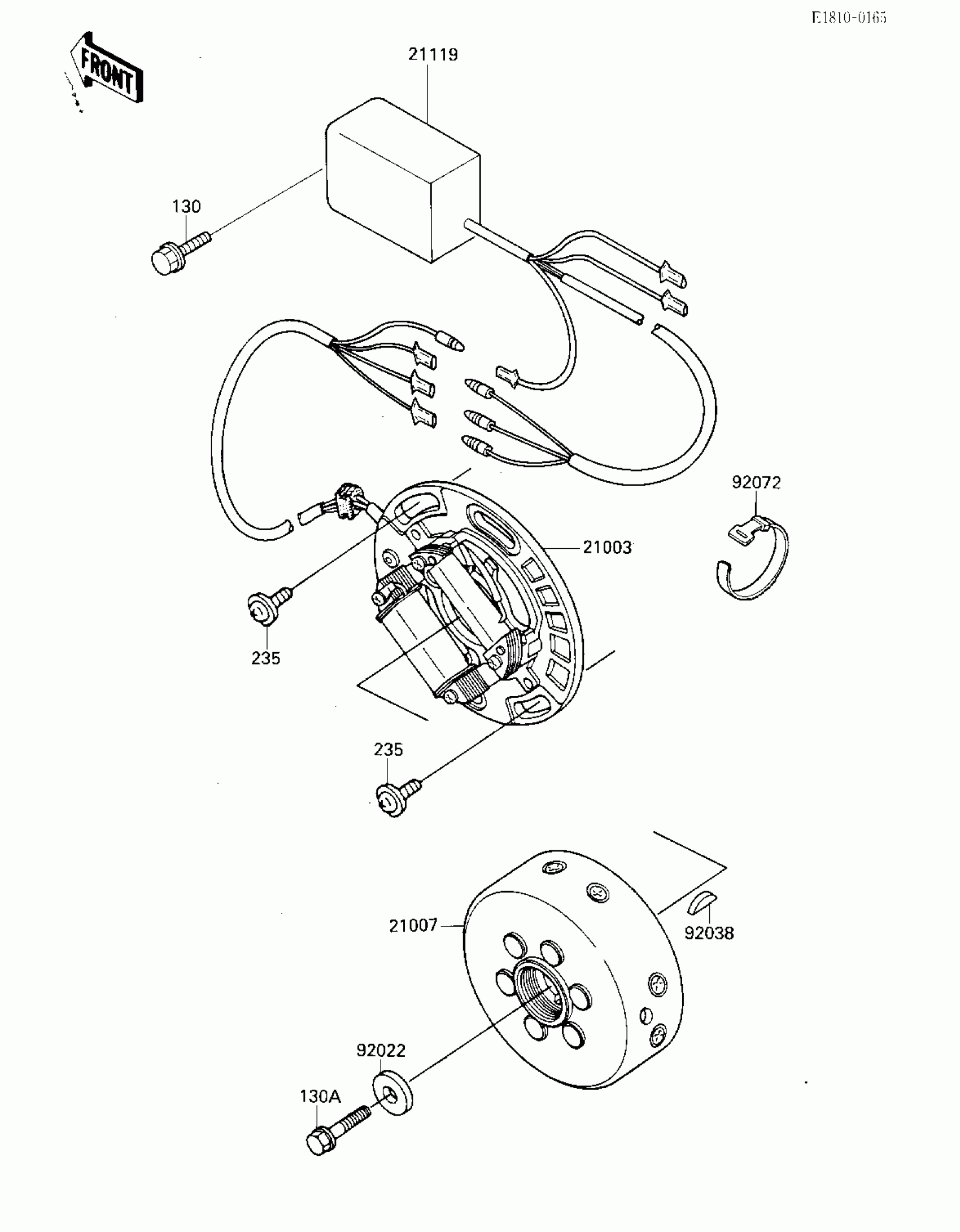

Kawasaki KX125 IGNITION/GENERATOR Diagram

#

Description

Price

21003

STATOR

21003-1115

Unavailable

21007

ROTOR

21007-1105

$308.77

21119

IGNITER

21119-1195

Unavailable

92022

WASHER,8.5X22X3.2

92022-276

$7.91

92038

KEY,WOODRUFF

92038-001

$3.94

115

BOLT-SMALL-UPSET

115G0835

Unavailable

130

BOLT-FLANGED,6X18

130G0618

Unavailable

235

SCREW-PAN-WP-CROS

235B0616

$3.66
