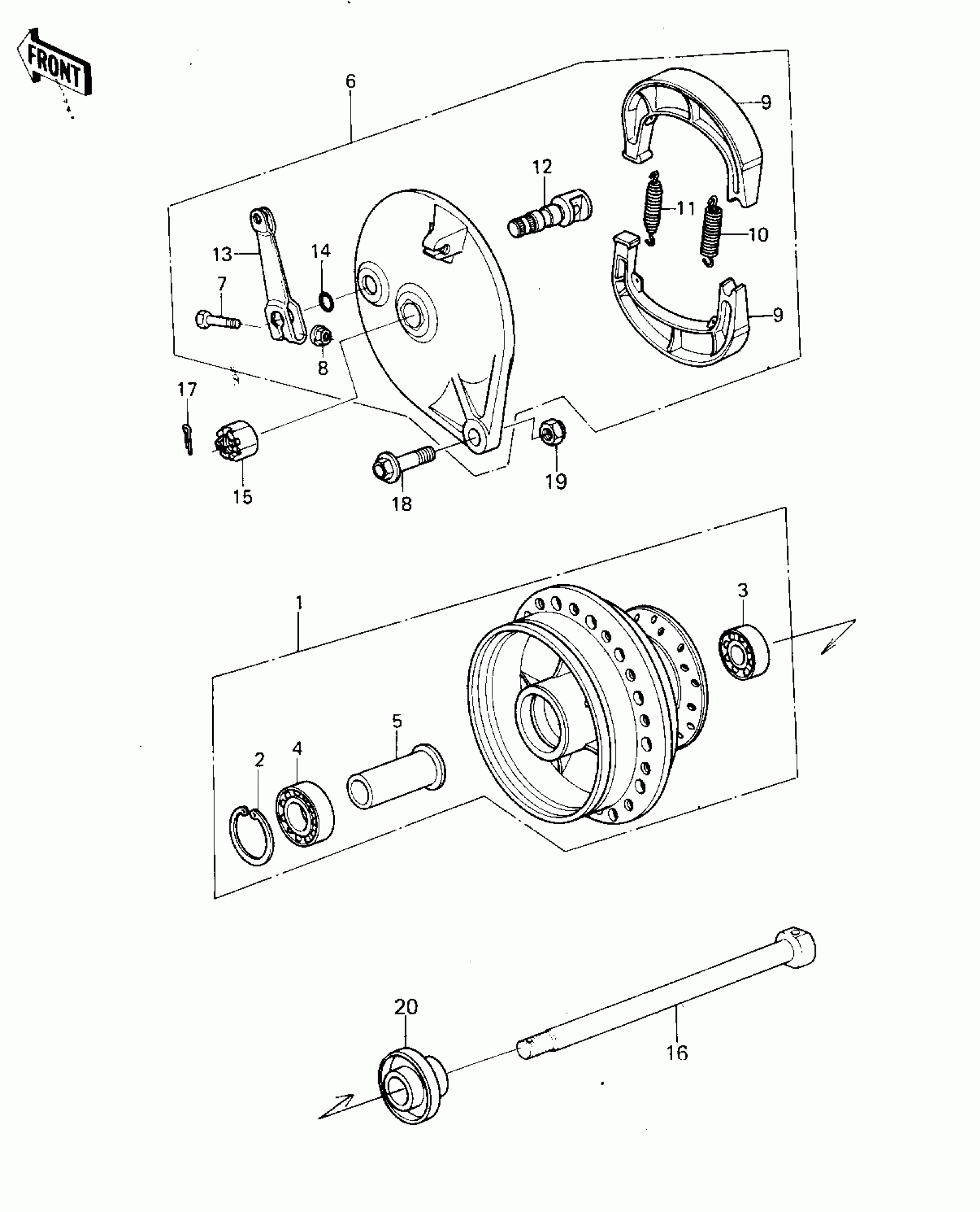

Kawasaki KX125 FRONT HUB/BRAKE ('80 A6) Diagram

#

Description
Price

1

DRUM-ASSY,FR BRK,BLK

41034-1009-21

$411.23

2

CIRCLIP-TYPE-C,37MM

481J3700

$2.37

3

BEARING-BALL,#6201LUC3/2A

601B6201U

$18.14

4

BEARING-BALL,#6301U

601B6301U

$30.00

5

COLLAR,FRONT BEARING

92027-1073

Unavailable

6

PANEL-ASY,FR BRK

41035-1030

$311.03

7

BOLT-UPSET

112G0630

Unavailable

8

NUT,FLANGED,6MM

92015-1078

Unavailable

9

SHOE,BRAKE

41048-015

Unavailable

10

SPRING,BRAKE SHOE

92081-1766

$6.39

11

SPRING,BRAKE SHOE

92081-1550

$9.20

12

CAM SHAFT,FR BRAKE

41050-1016

$21.51

13

LEVER,FR BRAKE CAM

41053-1018

$63.41

14

O RING,12MM

670B2012

$2.58

15

NUT-CASTLE

320G1200

Unavailable

16

AXLE,FRONT

41068-1034

$49.15

17

PIN,COTTER,3.2X28

550D3228

$2.27

18

BOLT,10X45

92001-1182

Unavailable

19

NUT,LOCK,10MM

92019-021

$4.83

20

COLLAR,FRONT AXLE

92027-1205

$19.58
