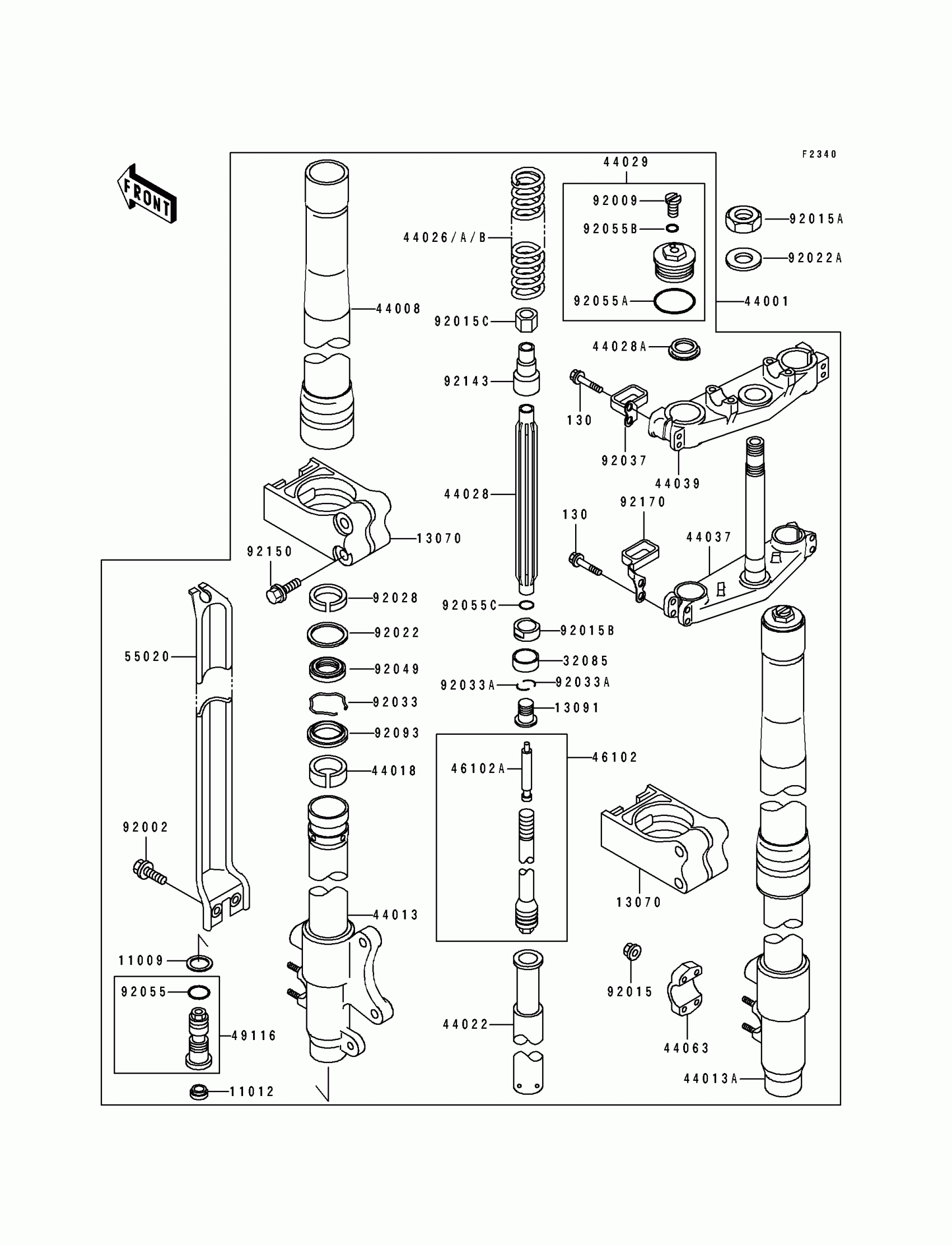

Kawasaki KX125 Front Fork(KX125-H1) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP

11012-1692

$5.37

13070

GUIDE,PROTECTOR

13070-1204

Unavailable

13091

HOLDER

13091-1651

$29.26

32085

STOPPER

32085-1323

$18.69

44001

FORK-FRONT

44001-1765

$1,871.26

44008

PIPE-FORK OUTER

44008-1006

$629.54

44013

PIPE-FORK INNER,LH

44013-1307

$595.64

44013A

PIPE-FORK INNER,RH

44013-1308

$595.64

44018

PISTON-FORK

44018-1054

$49.24

44022

CYLINDER-FORK

44022-1248

$166.63

44026

SPRING-FRONT FORK,K=0.365

44026-1442

$52.25

44026A

SPRING-FRONT FORK,K=0,35

44026-1451

$91.28

44026B

SPRING-FRONT FORK,K=0.38

44026-1453

Unavailable

44028

GUIDE-FORK SPRING

44028-1069

$88.34

44028A

GUIDE-FORK SPRING

44028-1070

$6.27

44029

SEAT-FORK SPRING

44029-1141

$118.34

44037

HOLDER-FORK UNDER

44037-1263

$676.44

44039

HOLDER-FORK UPPER

44039-1189

$270.79

44063

HOLDER-FRONT AXLE

44063-1056

$51.22

46102

ROD,FORK

46102-1290

$443.35

46102A

ROD,FORK

46102-1303

Unavailable

49116

VALVE-ASSY

49116-1087

$125.21

55020

GUARD,FORK

55020-1384

Unavailable

92002

BOLT,6X14

92002-1460

$4.02

92009

SCREW

92009-1568

$5.74

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$13.20

92015B

NUT

92015-1805

$23.68

92015C

NUT

92015-1806

Unavailable

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92022A

WASHER,STEERING STEM

92022-1873

$5.93

92028

BUSHING

92028-1566

$31.06

92033

RING-SNAP

92033-1036

$5.15

92033A

RING-SNAP

92033-1271

Unavailable

92037

CLAMP

92037-1628

Unavailable

92049

SEAL-OIL

92049-1338

$15.21

92055

RING-O,FORK

92055-1062

$3.72

92055A

RING-O

92055-1115

$8.04

92055B

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92055C

RING-O

92055-1442

Unavailable

92093

SEAL,FORK OUTER TUBE

92093-1305

$34.52

92143

COLLAR,FORK

92143-1374

Unavailable

92150

BOLT,5X35

92150-1270

$5.10

92170

CLAMP

92170-1088

$24.52

130

BOLT-FLANGED,8X40

130G0840

Unavailable
