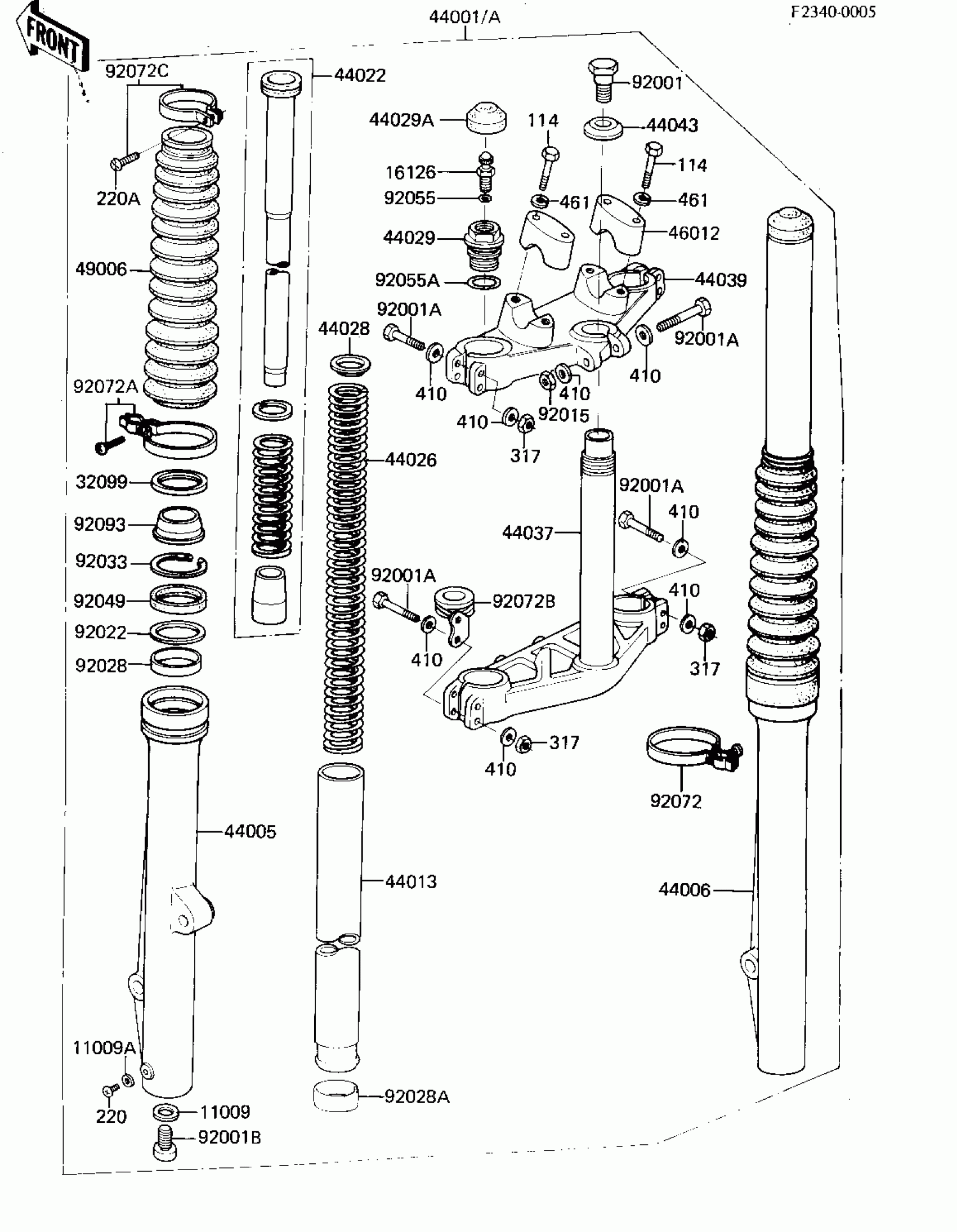

Kawasaki KX125 FRONT FORK ('81 A7) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$4.12

11009A

GASKET,FORK DRAIN PLUG

44045-002

$4.12

16126

VALVE ASSY,AIR

16126-1003

Unavailable

32099

CASE,DUST SHIELD

32099-1013

Unavailable

44005

TUBE,LH,FORK OUTER

44005-1063

$170.60

44006

TUBE,RH,FORK OUTER

44006-1063

$206.20

44013

TUBE-FORK INNER

44013-1053

$360.67

44022

CYLINDER-FORK

44022-1033

$80.46

44026

SPRING-FRONT FORK

44026-1099

$35.12

44028

GUIDE-FORK SPRING

44028-1003

Unavailable

44029

CAP,FORK TOP

44029-1008

Unavailable

44029A

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

44037

HOLDER-FORK UNDER

44037-1066

$492.31

44039

HOLDER-FORK UPPER

44039-1043

$200.10

44043

WASHER

44043-052

$7.47

46012

HOLDER-HANDLE

46012-1014

$11.46

49006

BOOT,FORK,L.GREEN

49006-1027

Unavailable

92001

BOLT,FORK TOP

44041-065

Unavailable

92001A

BOLT FLANGED 8X55

92001-1398

Unavailable

92001B

BOLT,FORK CYLINDER

92001-1309

$6.06

92015

NUT,LOCK,8MM

92015-1124

$4.30

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92028

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$23.54

92028A

BUSHING,FORK PIPE

92028-1126

$44.61

92033

RING-SNAP,FORK

92033-1047

$5.11

92049

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

92055

"0" RING,AIR VALVE

92055-1018

Unavailable

92055A

RING-O,FORK TOP CAP

92055-1050

$4.97

92072

CLAMP,BOOT,R.H

92072-1025

Unavailable

92072A

CLAMP,BOOT,L.H

92072-1026

Unavailable

92072C

BAND,BOOT

92072-1046

$9.71

92093

DUST SHIELD,FORK OUTR

92093-1035

$13.56

114

BOLT-SMALL-UPSET

115G0835

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS

220B0420

Unavailable

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
