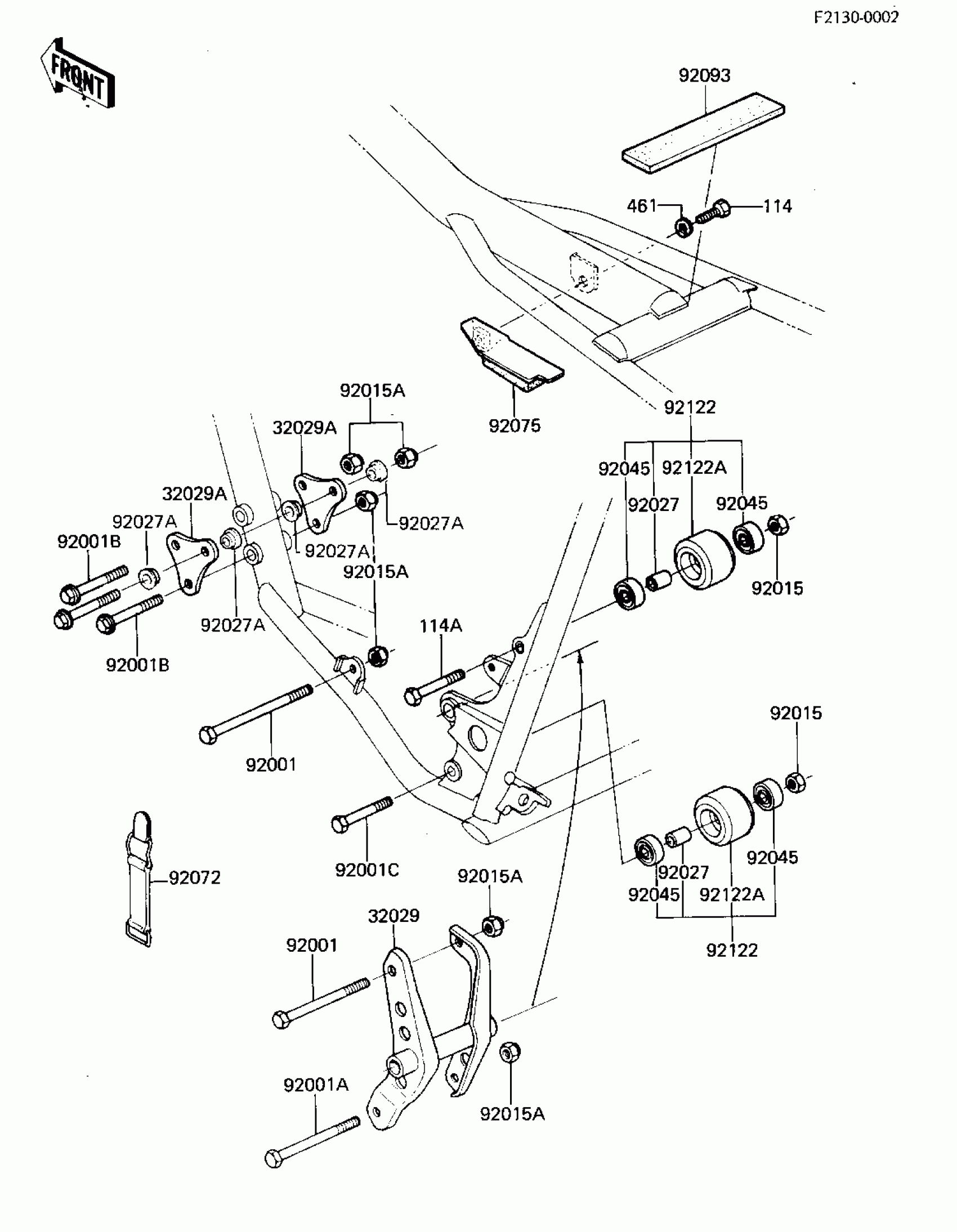

Kawasaki KX125 FRAME FITTINGS ('81 A7) Diagram

Description

Price

32029

BRACKET,ENGINE REAR

32029-1123

$44.15

32029A

BRACKET-ENGINE

32029-1140

Unavailable

92001

BOLT,FLANGED,8X90

92002-1416

Unavailable

92001A

BOLT,8X105

92001-1394

Unavailable

92001B

BOLT,8X69

92001-1410

Unavailable

92001C

BOLT,8X70

92001-1440

$4.58

92015

NUT,LOCK,8MM

92015-1124

$4.30

92015A

NUT,8MM

92015-1134

$7.98

92027

COLLAR

92027-1081

$9.29

92027A

COLLAR

92027-1096

$3.61

92045

BEARING-BALL,608LLU/2A

92045-1009

$32.24

92072

BAND,FUEL TANK

92072-076

Unavailable

92075

DAMPER,REAR SHOCK

92075-1249

Unavailable

92093

SEAL

92093-1039

Unavailable

92122

ROLLER,ASSY

92122-1013

$111.07

92122A

ROLLER

92122-1014

Unavailable

114

BOLT SMALL

114G0812

Unavailable

114A

BOLT-SMALL-UPSET

115G0855

$5.34

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
