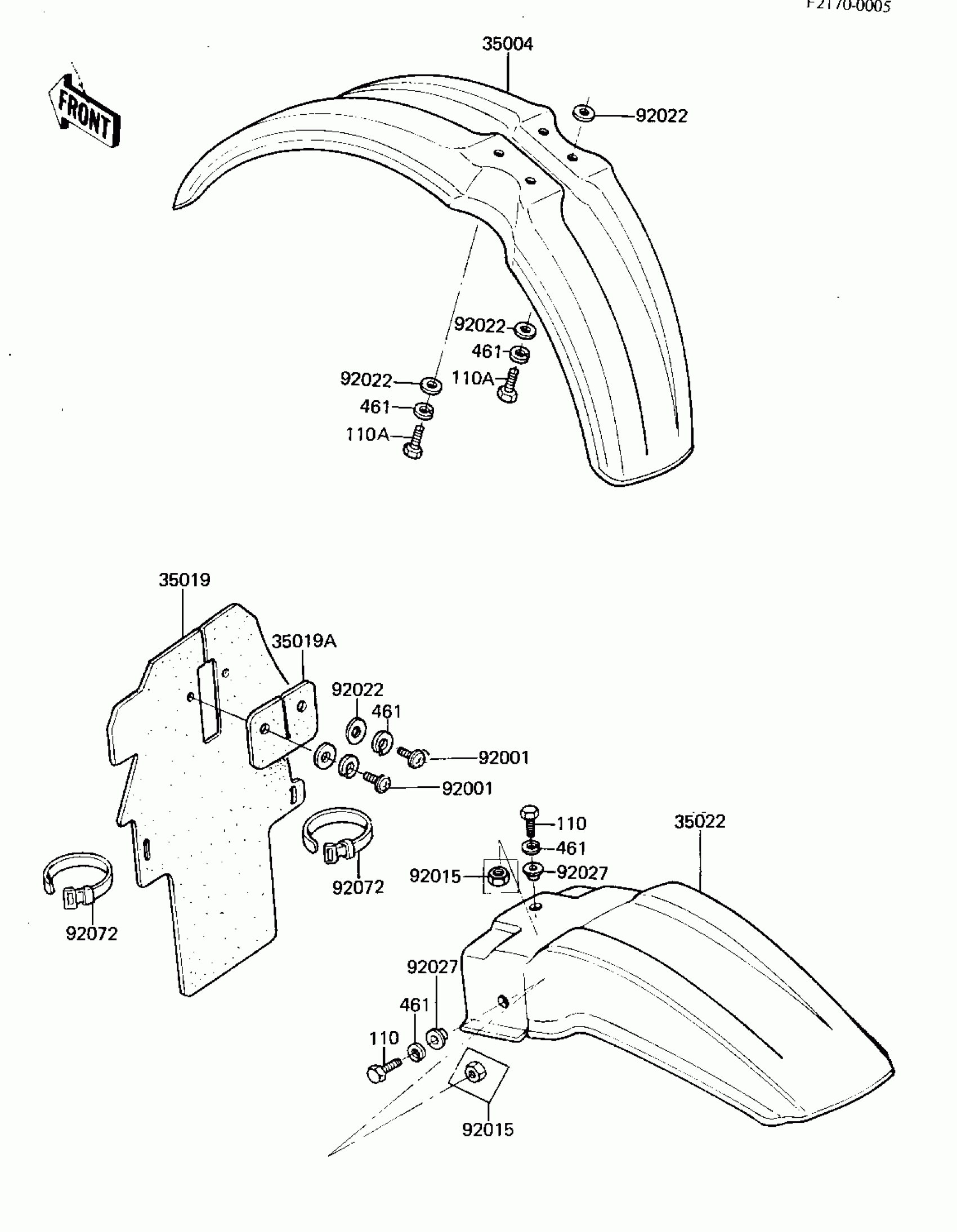

Kawasaki KX125 FENDERS ('81 A7) Diagram

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

35019

FLAP,REAR FENDER

35019-1017

Unavailable

35019A

FLAP,REAR FENDER

35019-1019

Unavailable

35022

FENDER-RR,L.GREEN

35022-1043-6W

Unavailable

92001

SCREW,6X14,WHITE

92009-1287

$2.10

92015

NUT,LOCK,6MM

92019-008

$3.36

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,L=5.1

92027-1260

$4.93

92072

BAND,L=186

92072-056

$3.97

110

BOLT-UPSET 6X14

112B0614

Unavailable

110A

BOLT-UPSET,6X16

112G0616

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
