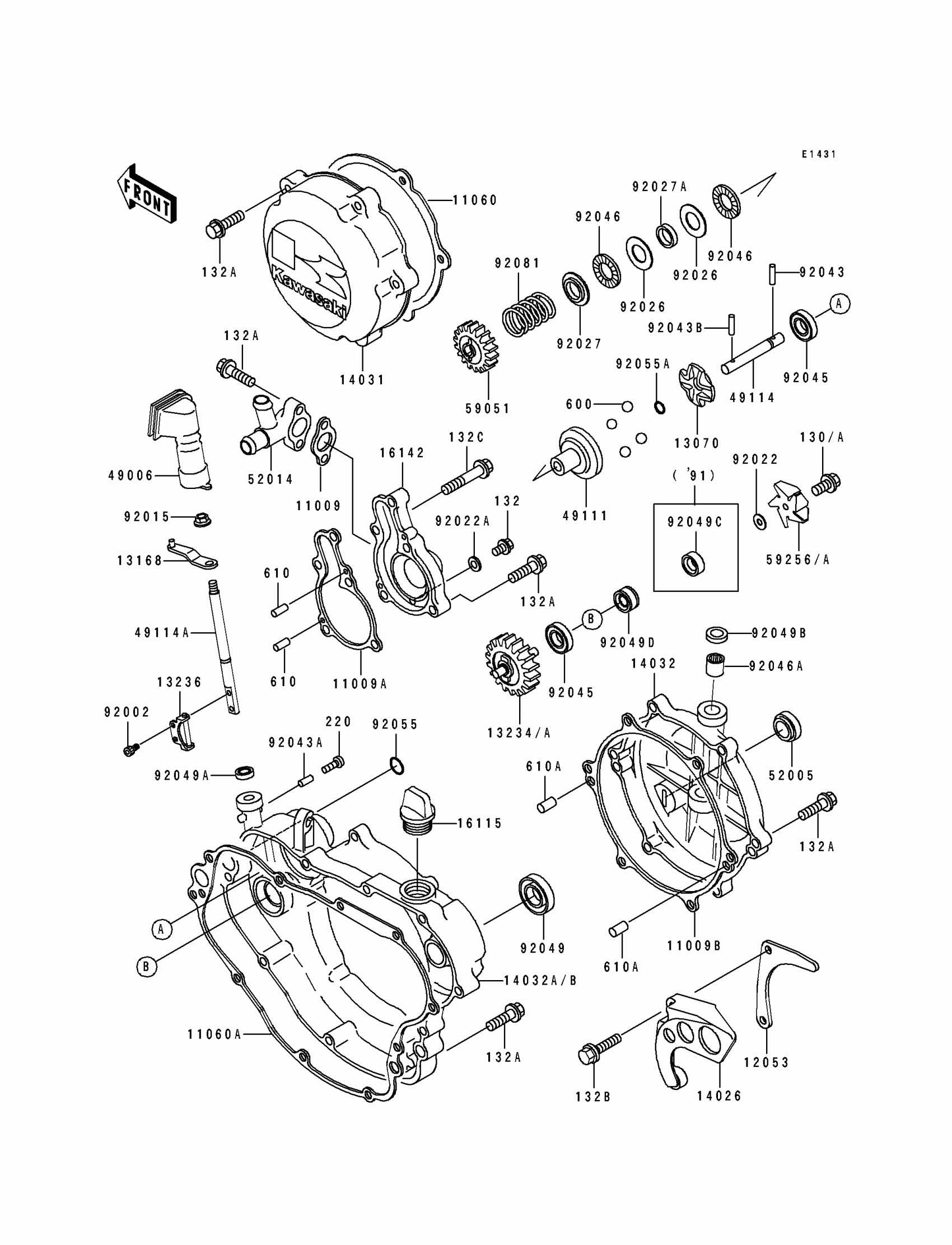

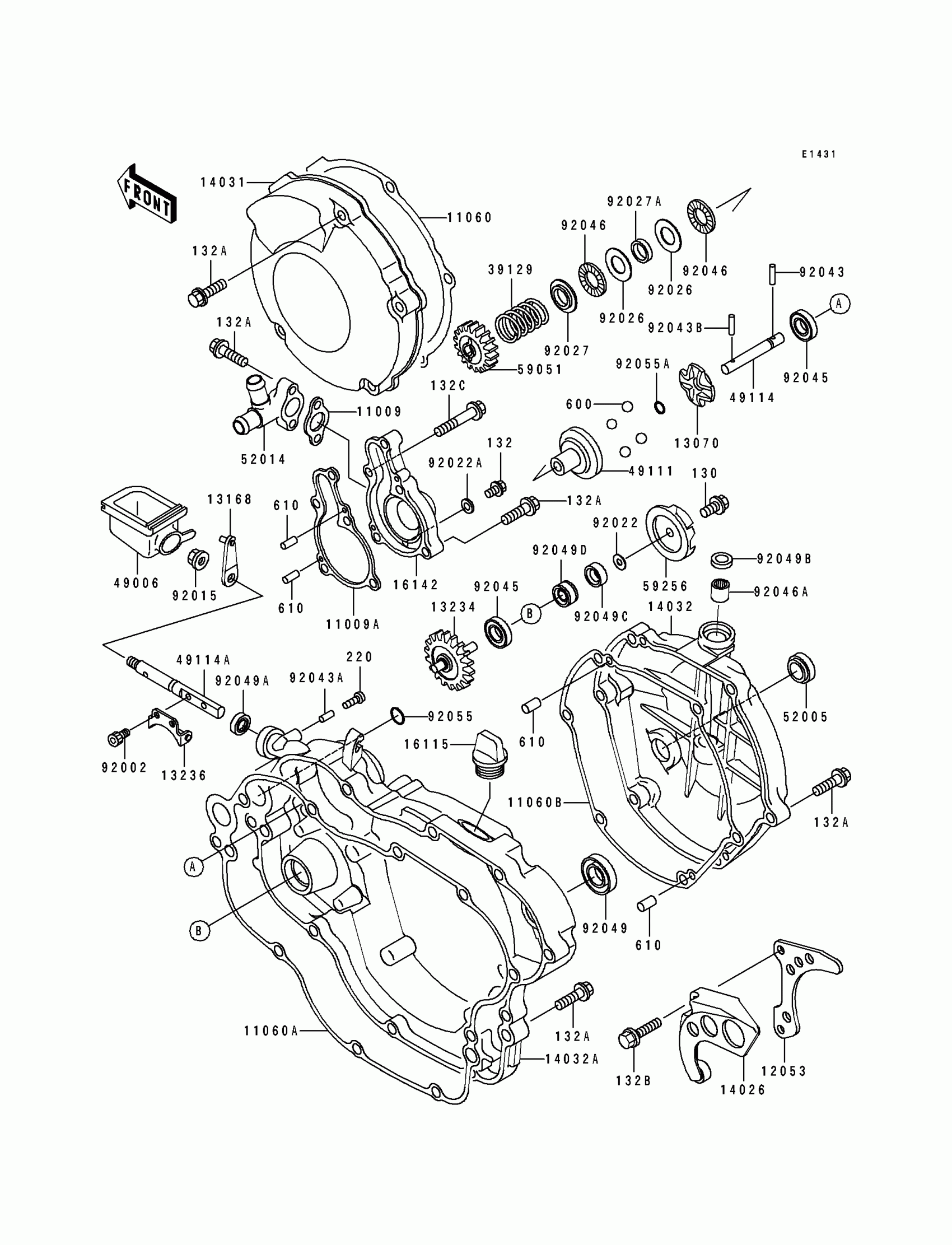

Kawasaki KX125 Engine Cover Diagram

#

Description
Price

11009

GASKET,ELBOW

11009-1696

Unavailable

11009A

GASKET,PUMP COVER

11009-1697

Unavailable

11009B

GASKET,RELESASE COVER

11009-1814

Unavailable

11060

GASKET,GENERATOR COVER

11009-1695

Unavailable

11060A

GASKET,CLUTCH COVER

11009-1693

Unavailable

12053

GUIDE-CHAIN

12053-1206

Unavailable

13070

GUIDE

13070-1122

$80.59

13168

LEVER,GOVERNOR

13168-1371

Unavailable

13234A

SHAFT-COMP,PUMP

13234-1094

Unavailable

13236

LEVER-COMP,GOVERNOR

13236-1182

Unavailable

14026

COVER-CHAIN

14026-1158

Unavailable

14031

COVER-GENERATOR

14031-1217

Unavailable

14032

COVER-CLUTCH

14032-1266

Unavailable

14032B

COVER-CLUTCH

14032-1295

Unavailable

16115

CAP-OIL FILLER

16115-018

$8.38

16142

COVER-PUMP

16142-1084

$157.55

49006

BOOT,GOVERNOR

49006-1228

Unavailable

49111

HOLDER-GOVERNOR WEIGHT

49111-1051

$68.68

49114

SHAFT-GOVERNOR

49114-1058

$33.01

49114A

SHAFT-GOVERNOR

49114-1064

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$11.67

52014

ELBOW

52014-1071

Unavailable

59051

GEAR-SPUR,GOVERNOR,19T

59051-1181

Unavailable

59256

IMPELLER

59256-1065

$33.05

92002

BOLT,SOCKET,4X8

92002-1403

$2.66

92015

NUT,LEFT HANDED,6MM

92015-1572

$3.68

92022

WASHER,5.2X13X1

92022-1380

$3.43

92022A

WASHER,6.2X11X1

92022-304

$2.92

92026

SPACER,15X28X1

92026-1238

$6.73

92027

COLLAR

92027-1838

$29.83

92027A

COLLAR,15.2X17X4

92027-1839

$11.73

92043

PIN,3X12.8

92043-1256

$4.00

92043A

PIN,2X9.8

92043-1293

$5.16

92043B

PIN,3X19.8

92043-1319

$3.68

92045

BEARING-BALL

92045-1212

$9.80

92046

BEARING-NEEDLE,AXK1102

92046-1052

$11.45

92046A

BEARING-NEEDLE

92046-1176

$14.46

92049

SEAL-OIL,SB16244

92049-002

$7.04

92049A

SEAL-OIL,SDO8144

92049-1207

$7.72

92049B

SEAL-OIL,AG0353-F0

92049-1262

$5.21

92049C

SEAL-OIL,MH8X18X3.5-A

92049-1359

$7.38

92049D

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$14.11

92055

RING-O,16.8X2.4

92055-1258

$3.90

92055A

RING-O,5.5X1.5

92055-1343

$0.69

92081

SPRING,GOVERNOR

92081-1769

$5.32

130A

BOLT-FLANGED,5X14

130P0514

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X55

132G0655

Unavailable

220

SCREW-PAN-CROS,3X6

220B0306

Unavailable

600

BALL-STEEL,5/16

600A1000

$0.76

610

ROLLER,4X8

610A0408

$3.43

610A

ROLLER,6X12

610A0612

$4.17
