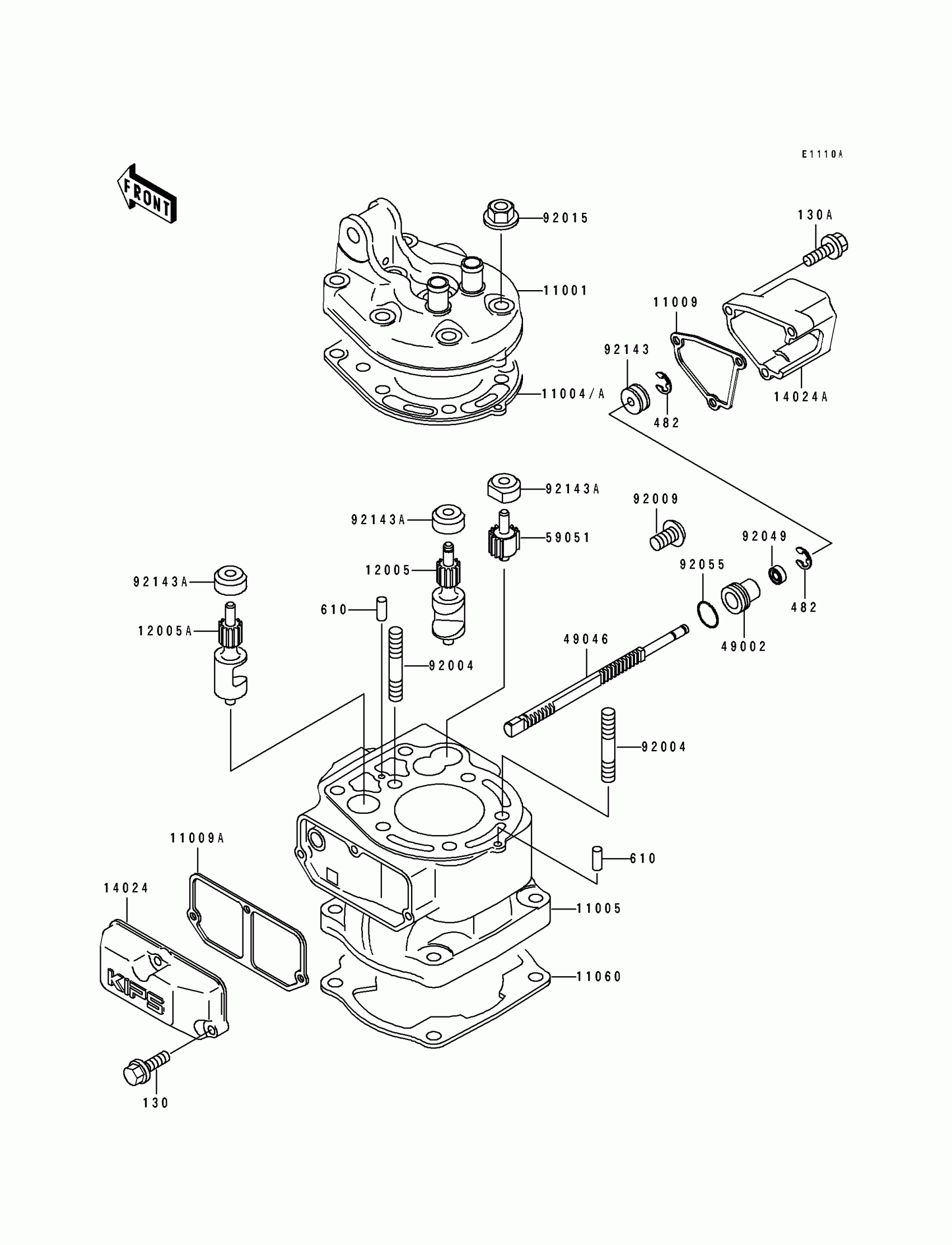

Kawasaki KX125 Cylinder Head/Cylinder(KX125-H2) Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1344

Unavailable

11004

GASKET-HEAD,T=0.26

11004-1216

Unavailable

11004A

GASKET-HEAD,T=0.46

11004-1225

Unavailable

11005

CYLINDER-ENGINE

11005-1645

Unavailable

11009

GASKET,RH,GOVERNOR

11009-1934

$5.14

11009A

GASKET,LH,RESONATOR

11009-1938

$5.15

11060

GASKET,CYLINDER BASE

11009-1965

$16.68

12005

VALVE-EXHAUST,RH

12005-1145

Unavailable

12005A

VALVE-EXHAUST,LH

12005-1153

Unavailable

14024

COVER,RESONATOR

14024-1565

$39.04

14024A

COVER,GOVERNOR

14024-1844

Unavailable

49002

GUIDE-VALVE

49002-1100

Unavailable

49046

ROD-GOVERNOR

49046-1067

$85.42

59051

GEAR-SPUR,IDLE

59051-1222

$38.19

92004

STUD,8X32

92004-1201

$5.39

92009

SCREW,5X10

92009-1502

$3.48

92015

NUT,8MM

92015-1143

$0.66

92049

SEAL-OIL,RSO-5.5X11X4

92049-1206

$8.25

92055

RING-O,14.5X1.5

92055-1399

$3.70

92143

COLLAR

92143-1056

Unavailable

92143A

COLLAR,VALVE

92143-1147

$13.29

130

BOLT-FLANGED

130G0520

Unavailable

130A

BOLT-FLANGED

130G0525

Unavailable

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.19

610

ROLLER,4X8

610A0408

$3.43
