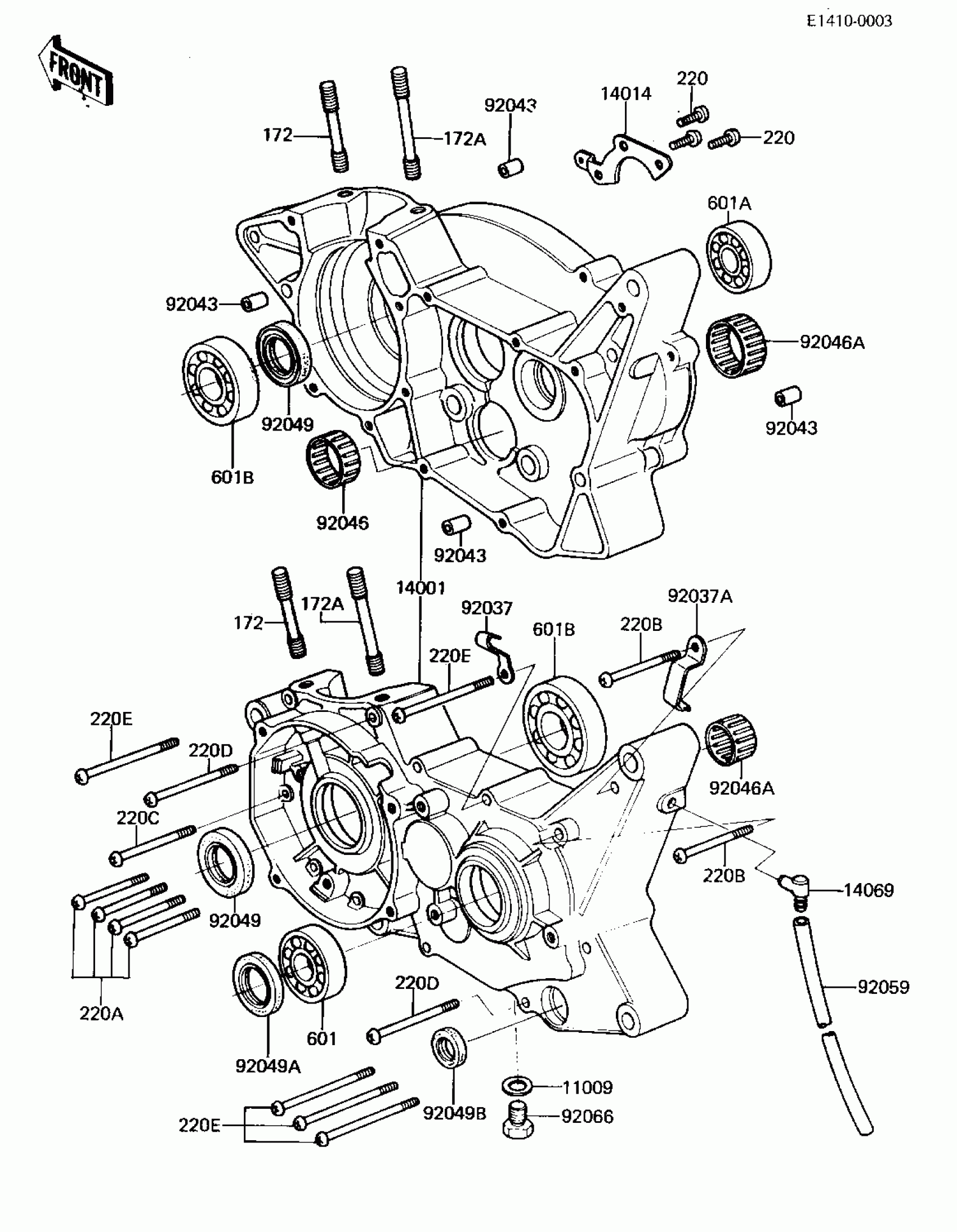

Kawasaki KX125 CRANKCASE ('81 A7) Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.16

14001

SET-CRANKCASE

14001-5074

Unavailable

14014

PLATE,POSITIONING

14014-1003

Unavailable

14069

BREATHER

14069-003

$8.16

92037

CLAMP CABLE

92037-016

Unavailable

92037A

CLAMP

92037-1073

Unavailable

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92046

BEARING,NEEDLE

92046-043

Unavailable

92046A

BEARING-NEEDLE,HMK151

92046-1058

Unavailable

92049

SEAL-OIL,TBJ25407

92049-1068

Unavailable

92049A

SEAL-OIL,SC25376

92050-013

$11.26

92049B

SEAL-OIL,TB13225.5

92051-005

$6.16

92059

PIPE-BREATHER

92059-061

Unavailable

92066

PLUG,DRAIN,10X12

92067-001

$3.50

172

STUD,8X25

92004-1008

$2.56

172A

STUD 8X60

172G0860

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.32

220A

SCREW PAN HEAD 6X45

220B0645

$1.54

220B

SCREW PAN HEAD 6X50

220B0650

$1.19

220C

SCREW PAN HEAD 6X55

220B0655

$3.28

220D

SCREW-PAN-CROS,6X60

220B0660

Unavailable

220E

SCREW PAN HEAD 6X70

220B0670

Unavailable

601

BEARING-BALL,#6204C3

601B6204

$10.76

601A

BEARING-BALL,#6303C3

601B6303

$6.58

601B

BEARING-BALL,#6305C3

601B6305

$23.43
