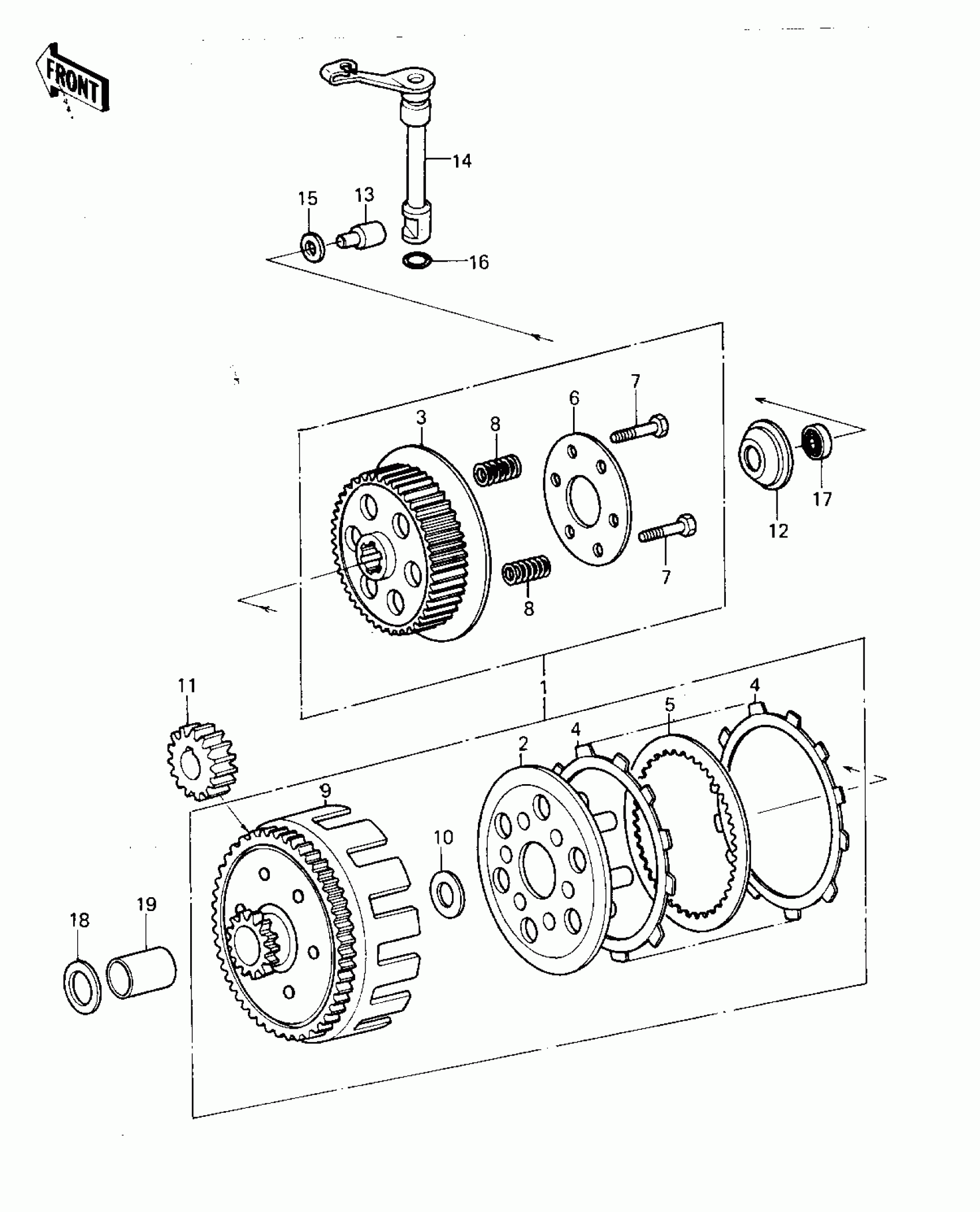

Kawasaki KX125 CLUTCH ('80 A6) Diagram
#
Description
Price
1
CLUTCH-ASSY
13081-1060
Unavailable
2
WHEEL,CLUTCH
13086-1001
Unavailable
3
HUB,CLUTCH
13087-1002
Unavailable
6
HOLDER,CLUTCH
13091-015
Unavailable
7
BOLT,HEX HEAD,5X18
110G0518A
Unavailable
8
SPRING,CLUTCH
92081-123
Unavailable
9
HOUSING,CLUTCH
13095-1028
Unavailable
11
GEAR,PRIMARY,20T
13097-1032
Unavailable
12
HOLDER,CLUTCH PUSHER
13091-1071
Unavailable
13
PUSHER,CLUTCH
13114-1004
Unavailable
14
LEVER ASSY,CLUTCH RL
13236-1022
Unavailable
15
WASHER PLAIN 6MM
411B0600
Unavailable
19
BUSHING,CLUTCH
92028-1018
Unavailable
