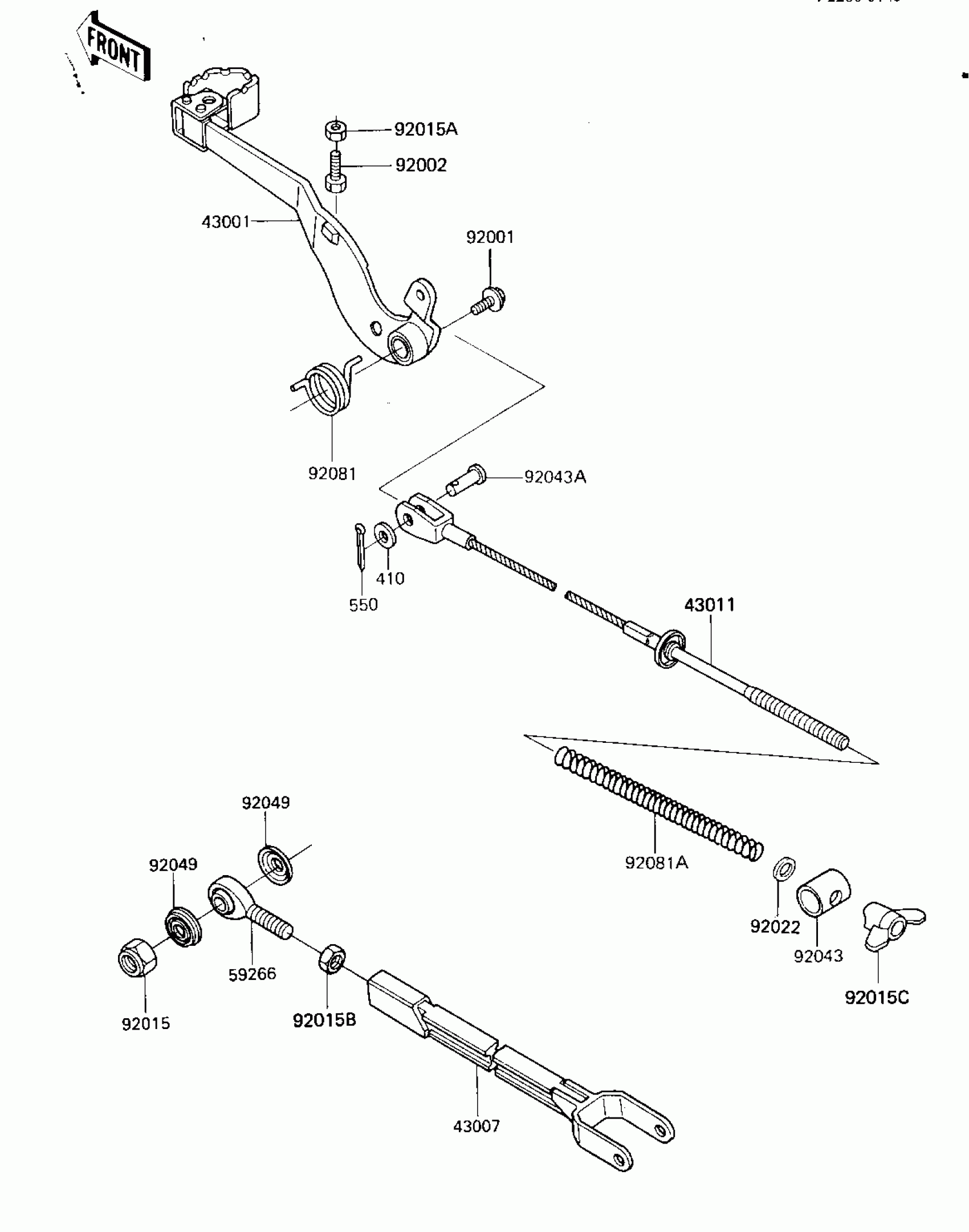

Kawasaki KX125 BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1173

$157.64

43007

ROD-TORQUE

43007-1103

$131.10

43011

ROD-BRAKE

43011-1103

$23.97

59266

JOINT,BALL

59266-1005

$89.38

92001

BOLT,FLANGED,6X10

92001-1034

$8.16

92002

BOLT,6X20

92002-1373

$3.92

92015

NUT,LOCK,8MM

92015-1124

$4.30

92015A

NUT,6MM

92015-1391

$2.05

92015B

NUT,WING,6MM

92015-4004

$5.81

92043

PIN,BRAKE

92043-1024

$10.44

92043A

PIN,6X17

92043-107

Unavailable

92049

OIL SEAL,BALL JOINT

92049-1072

Unavailable

92081

SPRING,BRAKE RETURN

92081-1640

Unavailable

92081A

SPRING,BRAKE ROD

92081-1688

$3.69

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

550

PIN COTTER 2.0X15

550D2015

Unavailable
