1979 Kawasaki KX125-A5 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1979 Kawasaki KX125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

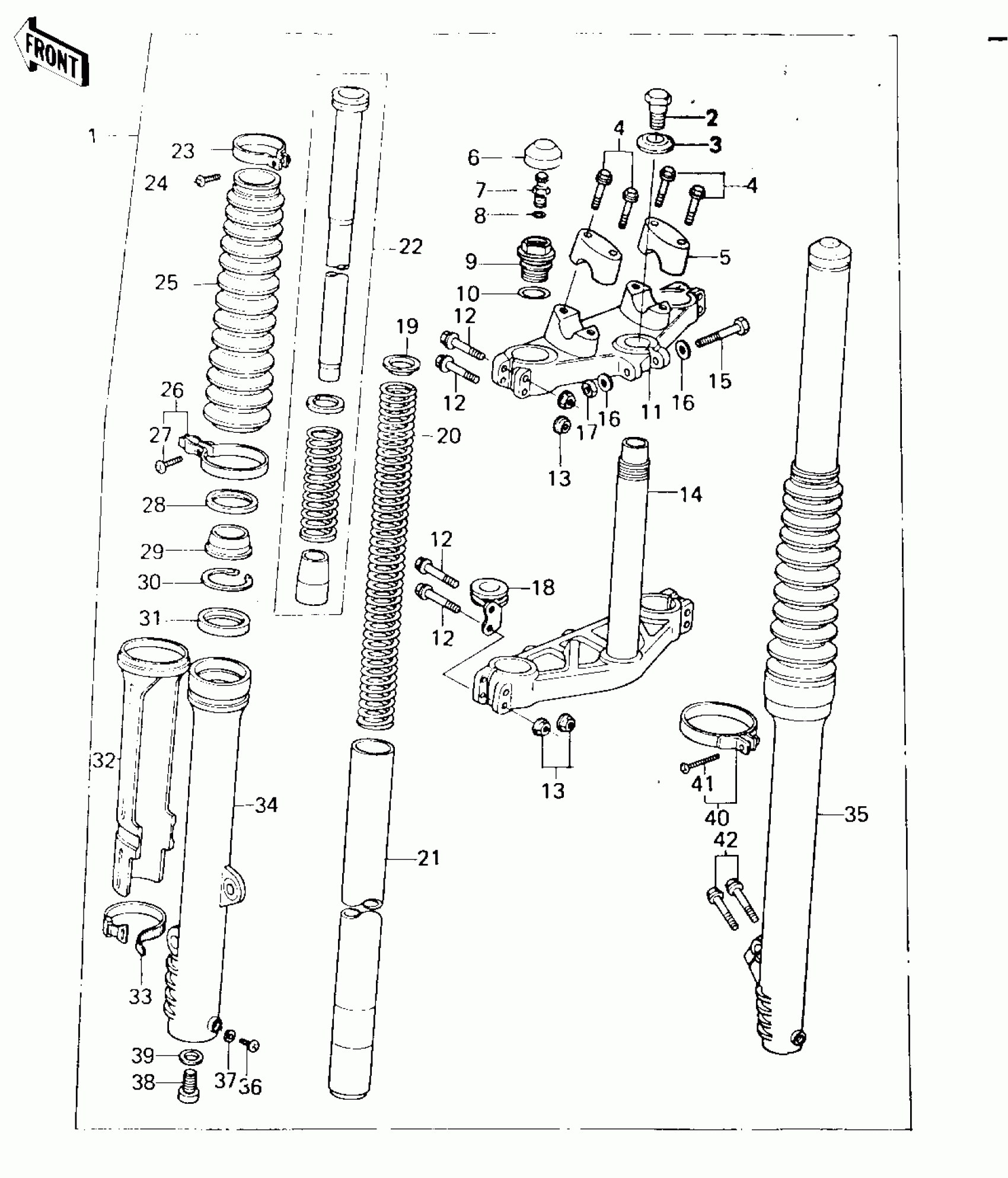

1979 Kawasaki KX125-A5 Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-1070

Out of stock

2

BOLT,FORK TOP

44041-065

Out of stock

3

WASHER

44043-052

Out of stock

4

BOLT,HEX HEAD,8X35

92001-1059

Out of stock

5

HOLDER,HANDLE BAR

46012-1003

Out of stock

6

CAP,RUBBER,FORK TOP

44029-1009

Out of stock

7

VALVE ASSY,AIR

16126-1003

Out of stock

8

"0" RING,AIR VALVE

92055-1018

Out of stock

9

CAP,FORK TOP

44029-1011

Out of stock

10

RING-O,FORK TOP CAP

92055-1051

Out of stock

11

HEAD,STEERING STEM

44039-1018

Out of stock

12

BOLT,HEX HEAD,8X53

92001-1060

Out of stock

13

NUT,8M/M

44007-1002

Out of stock

14

STEM,STEERING

44037-1021

Out of stock

15

BOLT,HEX HEAD,8X57

92001-1141

Out of stock

16

WASHER PLAIN 8MM

410B0800

Out of stock

17

NUT,LOCK,8MM

92015-1124

Out of stock

18

CLAMP,CABLE

92072-1027

Out of stock

19

GUIDE-FORK SPRING

44028-1004

Out of stock

20

SPRING,FORK INNER

44026-1030

Out of stock

21

TUBE,FORK INNER

44013-1020

Out of stock

22

CYLINDER-FORK

44022-1021

Out of stock

23

BAND,BOOT

92072-1008

Out of stock

24

SCREW-PAN-CROS

220B0420

Out of stock

25

BOOT,FORK,L.GREEN

49006-1028

Out of stock

26

BAND,BOOTS L.H.

92072-1011

Out of stock

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

28

CASE,DUST SHIELD

32099-1002

Out of stock

29

DUST SHIELD,FORK

92093-1007

Out of stock

30

RING,SNAP,FORK OUTER

92033-1005

Out of stock

31

OIL,SEAL,FORK OUTER

92049-1009

Out of stock

32

GUARD,FORK

55020-1024

Out of stock

33

BAND,BOOTS

92072-1009

Out of stock

34

TUBE,LH,FORK OUTER

44005-1023

Out of stock

35

TUBE,RH,FORK OUTER

44006-1023

Out of stock

36

SCREW PAN HEAD 4X8

220B0408

Out of stock

37

GASKET,FORK DRAIN PLUG

44045-002

Out of stock

38

BOLT,SOCKET,FORK CYLINDER

44041-040

Out of stock

39

GASKET

44045-057

Out of stock

40

BAND,BOOTS,R.H.

92072-1010

Out of stock

41

SCREW PAN HEAD 4X25

220B0425

Out of stock

42

BOLT,HEX HEAD,8X25

92001-1058

Out of stock
