1979 Kawasaki KX125-A5 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1979 Kawasaki KX125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

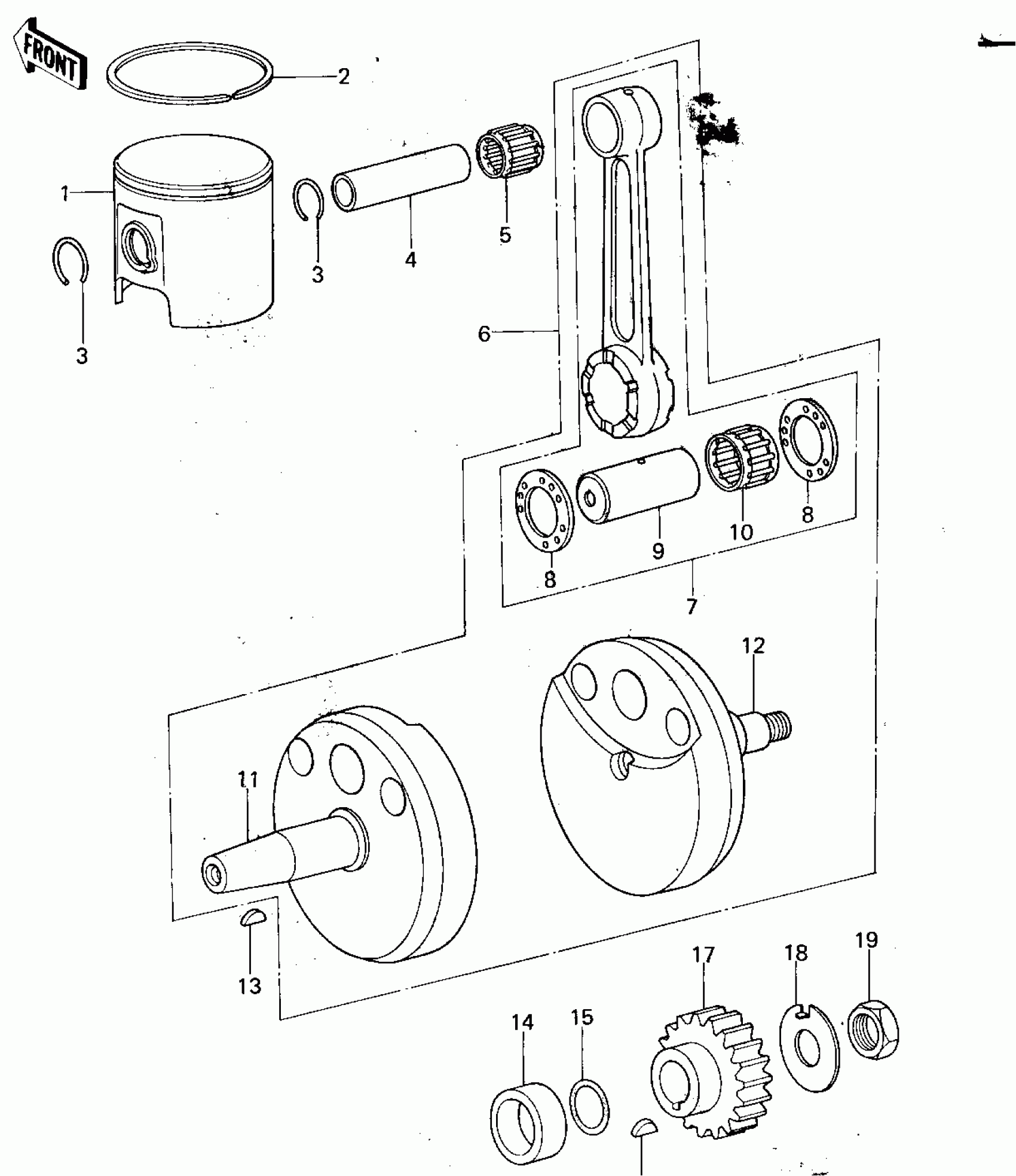

1979 Kawasaki KX125-A5 Crankshaft/piston Diagram

#

Description
Price
Status
Order Qty

1

PISTON,STD

13001-1008

Out of stock

2

RING,PISTON STD

13003-1012

Out of stock

3

CIRCLIP PISTON PIN

92036-004

Out of stock

4

PIN-PISTON

13002-1003

Out of stock

5

NEEDLE BEARING,SML EN

13033-1001

Out of stock

6

CRANK CONROD ASSY

13031-1016

Out of stock

6

CRANKSHAFT ASSY

13031-1021

Out of stock

7

CONNECTING ROD SET

13044-5009

Out of stock

8

SPACER,SIDE

92026-1027

Out of stock

9

PIN,CRANK

13035-1001

Out of stock

10

NEEDLE BEARING,BIG E

13034-1002

Out of stock

11

CRANKSHAFT,L.H

13037-1008

Out of stock

11

CRANKSHAFT,L.H

13037-1029

Out of stock

12

CRANKSHAFT,R.H

13037-1009

Out of stock

12

CRANKSHAFT,R.H

13037-1030

Out of stock

13

KEY,WOODRUFF

92038-001

Out of stock

14

COLLAR

92027-1067

Out of stock

15

O RING,16MM

670B2016

Out of stock

16

KEY,WOODRUFF

92038-003

Out of stock

17

GEAR,PRIMARY

13097-1004

Out of stock

18

WASHER,LOCK

92022-1063

Out of stock

19

NUT,12MM

92015-006

Out of stock
