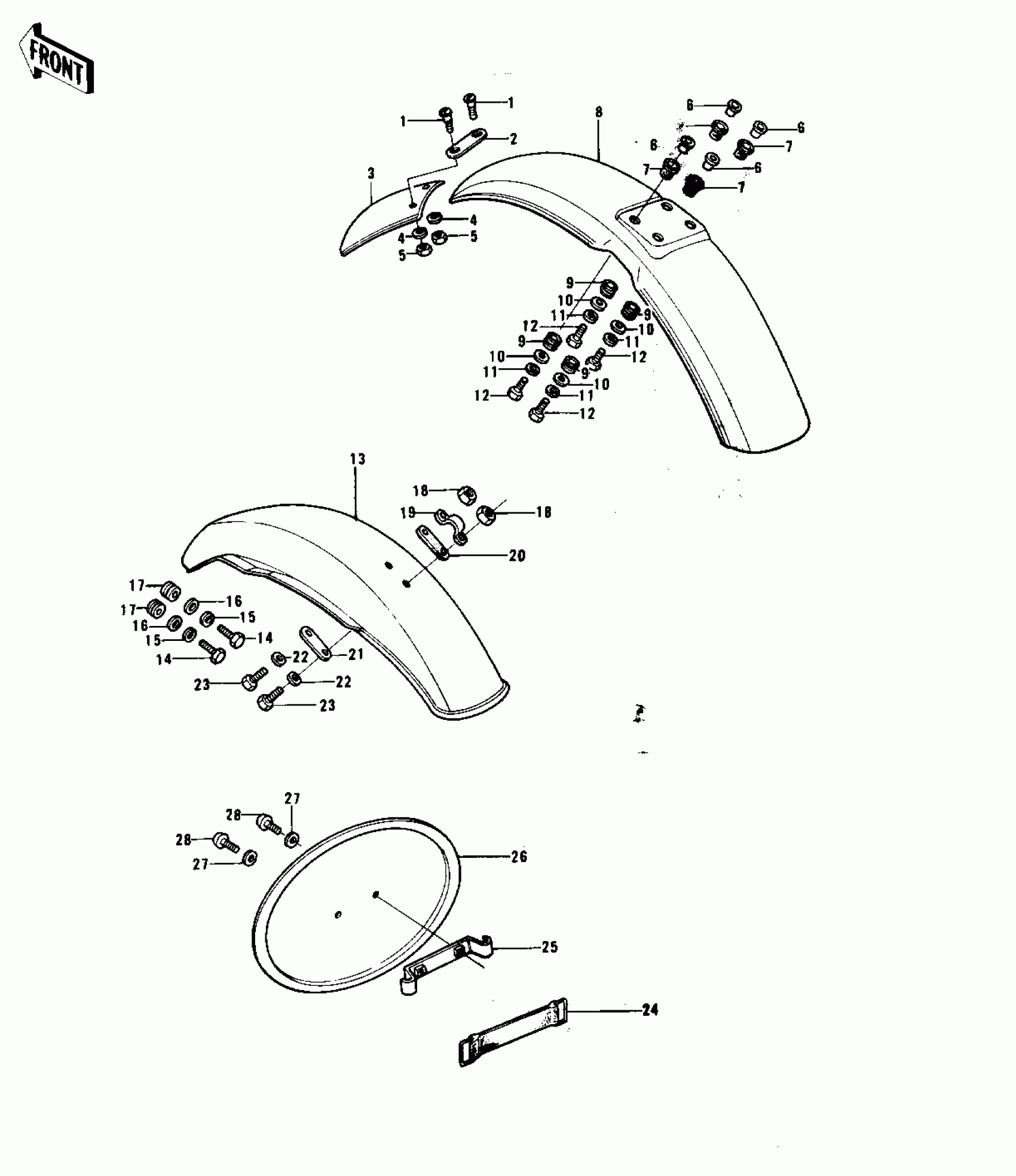

Kawasaki KX125-A3 NUMBER PLATE/FENDERS ('74-'76 KX125/A/A3 Diagram

#

Description
Price

1

BOLT,5X12

92001-134

Unavailable

2

PLATE,FENDER FLAP

35020-012

Unavailable

3

FLAP,FRONT FENDER

35019-005

Unavailable

4

WASHER SPRING 5MM

461F0500

Unavailable

5

NUT-HEX

311B0500

$0.51

6

COLLAR

92027-194

$4.37

7

DAMPER RUBBER

92075-103

$3.49

8

FENDER-FR

35004-093

$75.47

8

FENDER-FR,BLACK

35004-093-10

$84.43

9

DAMPER,FENDER

92075-121

$3.63

10

WASHER,6.5X20X1.6

92022-125

$1.25

10

WASHER,7X24X1.6

92022-228

$3.12

11

WASHER SPRING 6MM

461F0600

Unavailable

12

BOLT-UPSET

112G0625

Unavailable

13

FENDER-RR,BLACK

35022-147-10

$117.66

13

FENDER-RR,BLACK

35022-147-10

$117.66

14

BOLT-UPSET 6X14

112B0614

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

COLLAR

92027-122

$6.83

17

DAMPER RUBBER

92075-118

Unavailable

18

NUT,6MM

92019-019

Unavailable

19

BRACKET,REAR FENDER

35025-027

Unavailable

20

DAMPER RUBBER,FENDER

92075-245

Unavailable

21

PLATE,REAR FENDER

35041-002

Unavailable

22

WASHER PLAIN 6MM

411B0600

Unavailable

23

BOLT 6X22

112B0622

Unavailable

24

BAND,L=142.1

92072-006

$10.11

25

BRACKET,NUMBER PLATE

58030-008

Unavailable

26

PLATE,FRONT NUMBER

58029-026

Unavailable

27

WASHER,6.5X20X1.6

92022-125

$1.25

28

SCREW,6X10,WHITE

92009-1286

$3.43
