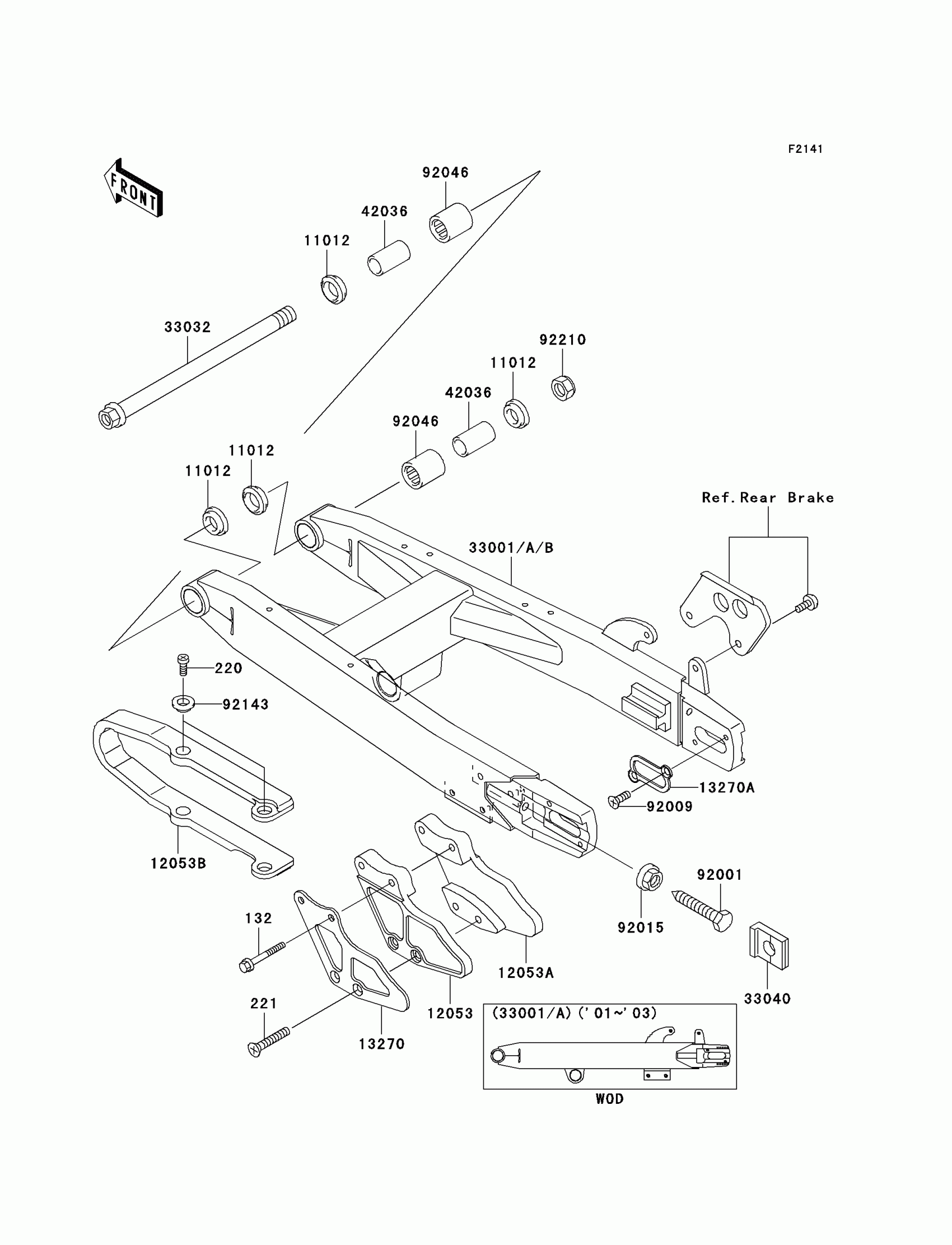

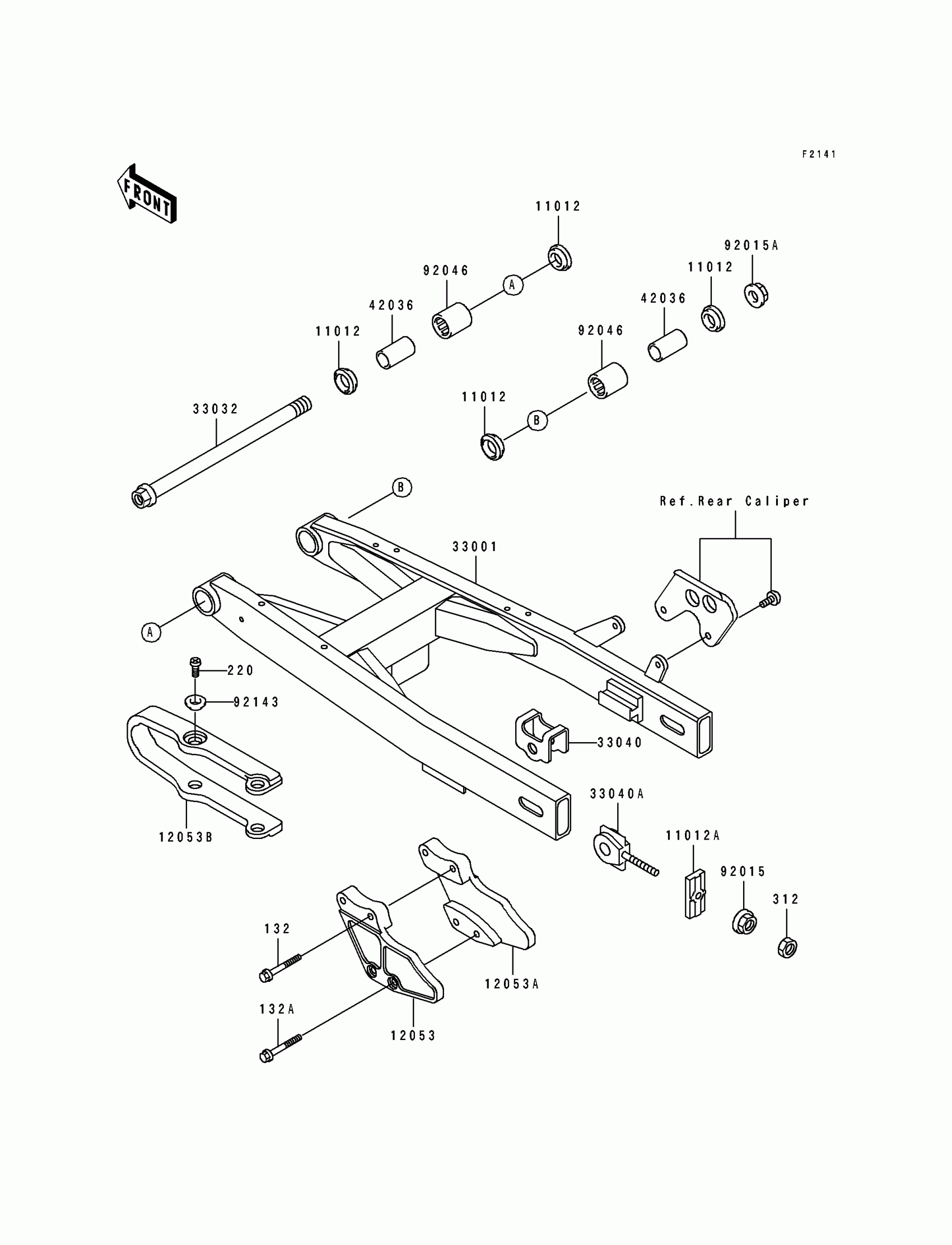

Kawasaki KX100 Swingarm Diagram

#

Description
Price

11012

CAP

11012-1263

$13.08

11012A

CAP,CHAIN ADJUSTER

11012-1601

Unavailable

12053

GUIDE-CHAIN,RR,LH

12053-1203

$83.43

12053A

GUIDE-CHAIN,RR,RH

12053-1204

$83.43

12053B

GUIDE-CHAIN,DRIVE,FR

12053-1277

Unavailable

33001

ARM-COMP-SWING,SILVER NO.35

33001-1392-TX

Unavailable

33032

SHAFT-SWING ARM

33032-1161

$32.80

33040

ADJUSTER-CHAIN,OUTSIDE

33040-1066

Unavailable

33040A

ADJUSTER-CHAIN,INSIDE

33040-1081

$41.29

42036

SLEEVE,SWING ARM,L=34

42036-1067

$10.25

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,12MM

92015-1774

$6.13

92046

BEARING-NEEDLE

92046-1046

$24.62

92143

COLLAR

92143-1156

$4.93

132

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

132A

BOLT-FLANGED-SMALL,6X45

132G0645

Unavailable

220

SCREW-PAN-CROS,6X8

220B0608

$0.63

312

NUT 6MM

312B0600

Unavailable
