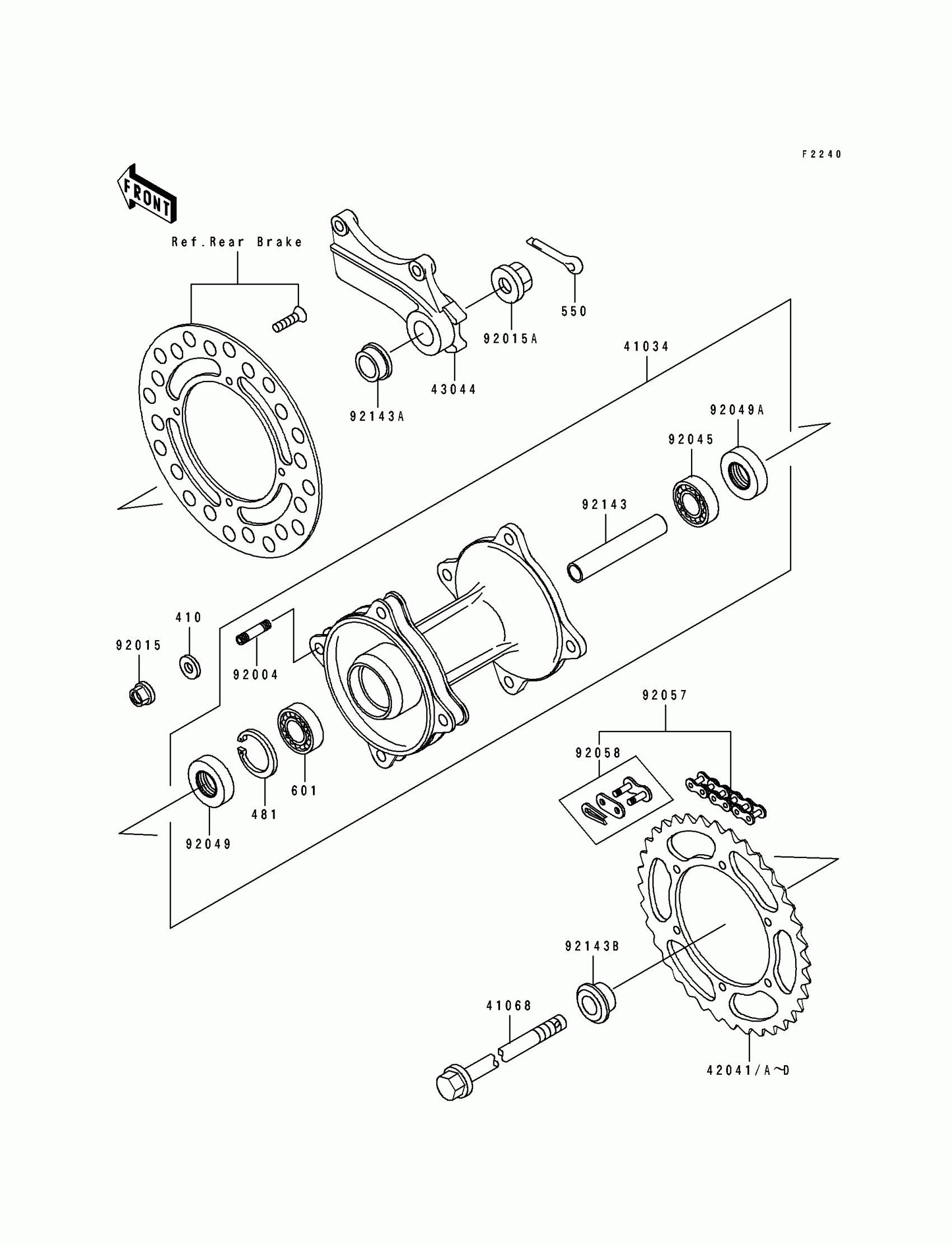

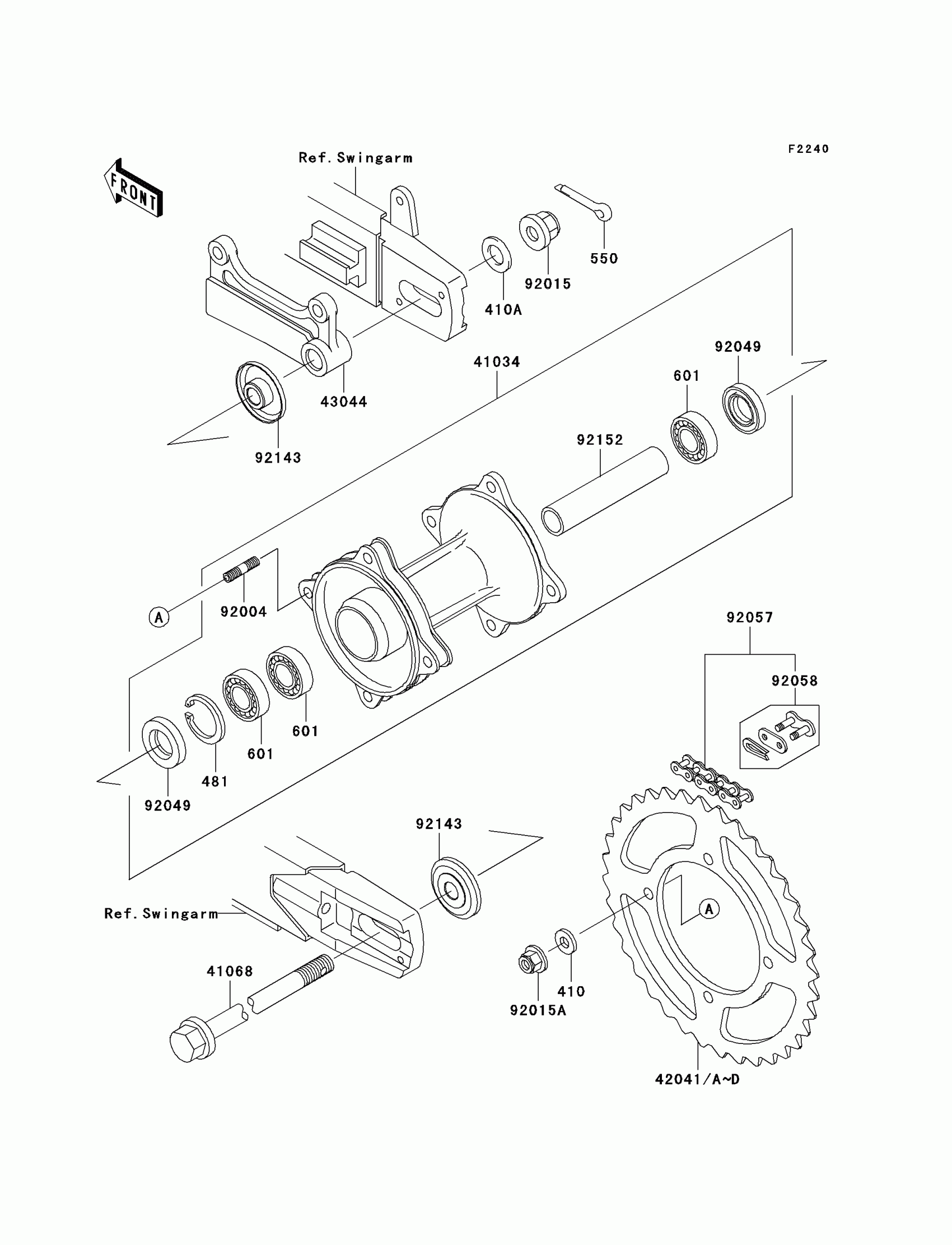

Kawasaki KX100 Rear Hub Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1194

Unavailable

41068

AXLE,RR

41068-1302

$40.21

42041

SPROCKET-HUB,54T

42041-1223

Unavailable

42041A

SPROCKET-HUB,52T

42041-1245

$68.50

42041B

SPROCKET-HUB,53T

42041-1246

$68.50

42041C

SPROCKET-HUB,55T

42041-1247

Unavailable

42041D

SPROCKET-HUB,56T

42041-1248

Unavailable

43044

HOLDER-COMP-CALIPER

43044-1073

$124.21

92004

STUD,8X16

92004-1183

$4.80

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

$24.47

92049

SEAL-OIL,DD20377

92049-1096

$15.88

92049A

SEAL-OIL,DC17343.5

92049-1290

Unavailable

92057

CHAIN,DRIVE,DID420DSX124L

92057-1315

$115.04

92058

JOINT-CHAIN

92058-1066

$11.10

92143

COLLAR,12.2X17.3X107.5

92143-1282

Unavailable

92143A

COLLAR,REAR AXLE,L=12

92143-1284

Unavailable

92143B

COLLAR,REAR AXLE,L=14.5

92143-1286

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

550

PIN-COTTER,2.5X20

550D2520

$1.05

601

BEARING-BALL,#6301UUC3

601B6301UU

$23.98
