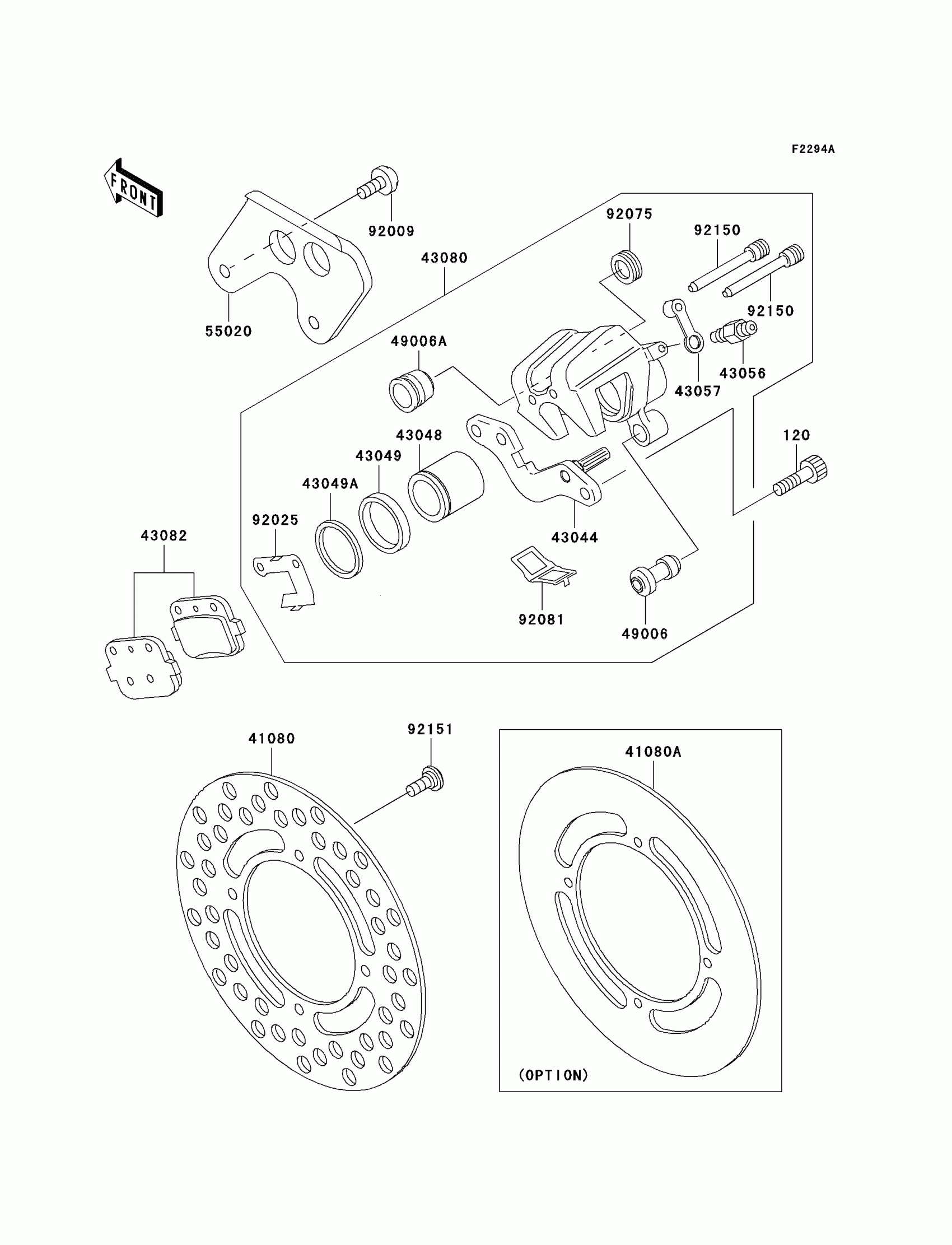

Kawasaki KX100 Rear Brake(D4/D5) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

41080

DISC,RR

41080-1492

$193.68

41080A

DISC,RR

41080-1493

$216.71

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-1064

$61.70

43049

PACKING,PISTON SEAL

43049-1060

$15.29

43049A

PACKING,PISTON SEAL

43049-1061

$8.38

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.89

43080

CALIPER-SUB-ASSY,RR

43080-5134

$260.35

43082

PAD-ASSY-BRAKE

43082-1205

$54.48

49006

BOOT,CALIPER

49006-1088

$9.20

49006A

BOOT,CALIPER

49006-1089

$5.88

55020

GUARD,CALIPER,WHITE

55020-1247-RZ

$22.44

92009

SCREW,6X10,WHITE

92009-1286

$3.43

92025

SHIM,PAD

92025-1817

$7.38

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.86

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.29
