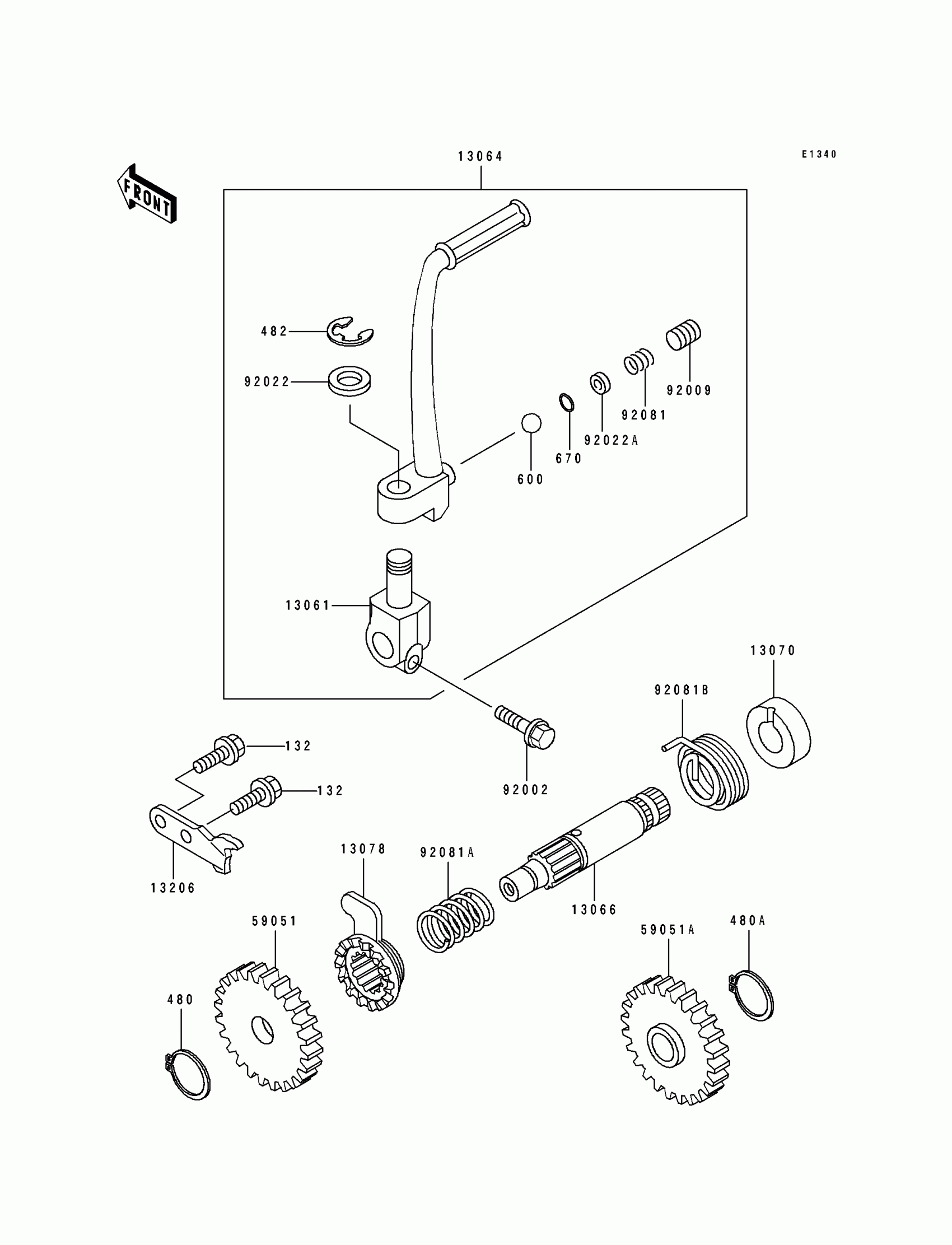

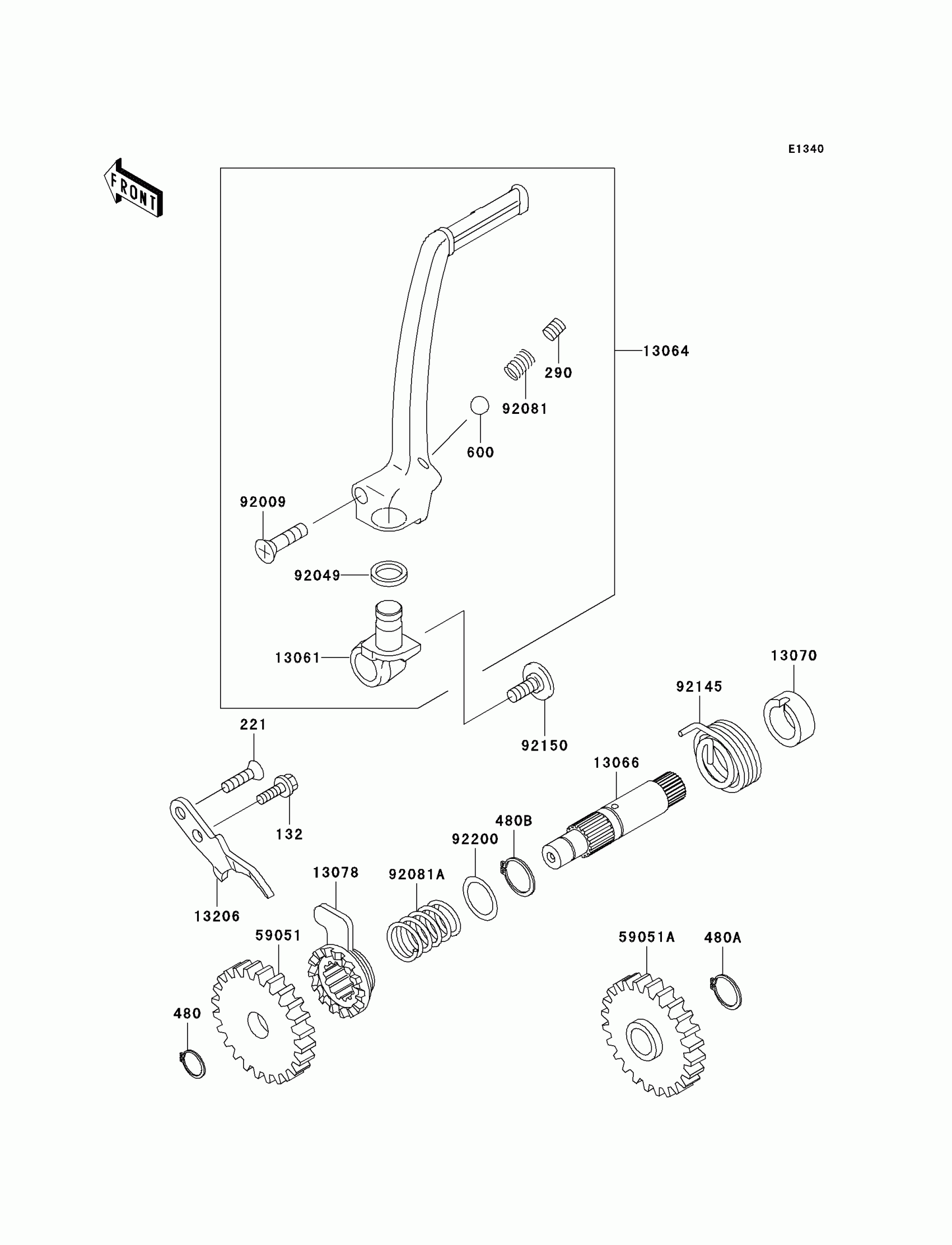

Kawasaki KX100 Kickstarter Mechanism Diagram

Description

Price

13061

BOSS,KICK LEVER

13061-1301

$49.83

13064

LEVER-ASSY-KICK,PEDAL

13064-1154

$101.33

13066

SHAFT-KICK,STARTER

13066-1093

$85.73

13070

GUIDE,KICK SPRING

13070-1137

Unavailable

13078

RATCHET

13078-1004

$60.14

13206

GUIDE-KICK

13206-1055

Unavailable

59051

GEAR-SPUR,32T

59051-1026

$52.72

59051A

GEAR-SPUR,31T,KICK

59051-1147

$66.46

92002

BOLT,6X20

92002-1237

$3.43

92009

SCREW,SOCKET,8X8

92009-1312

Unavailable

92022

WASHER,12.2X20X1.6

92022-1236

Unavailable

92022A

WASHER

92022-1481

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92081B

SPRING,KICKSTARTER

92081-1907

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

480A

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

482

CIRCLIP-TYPE-E,8MM

482K8000

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.67

670

O RING,4MM

670B1504

$3.27
