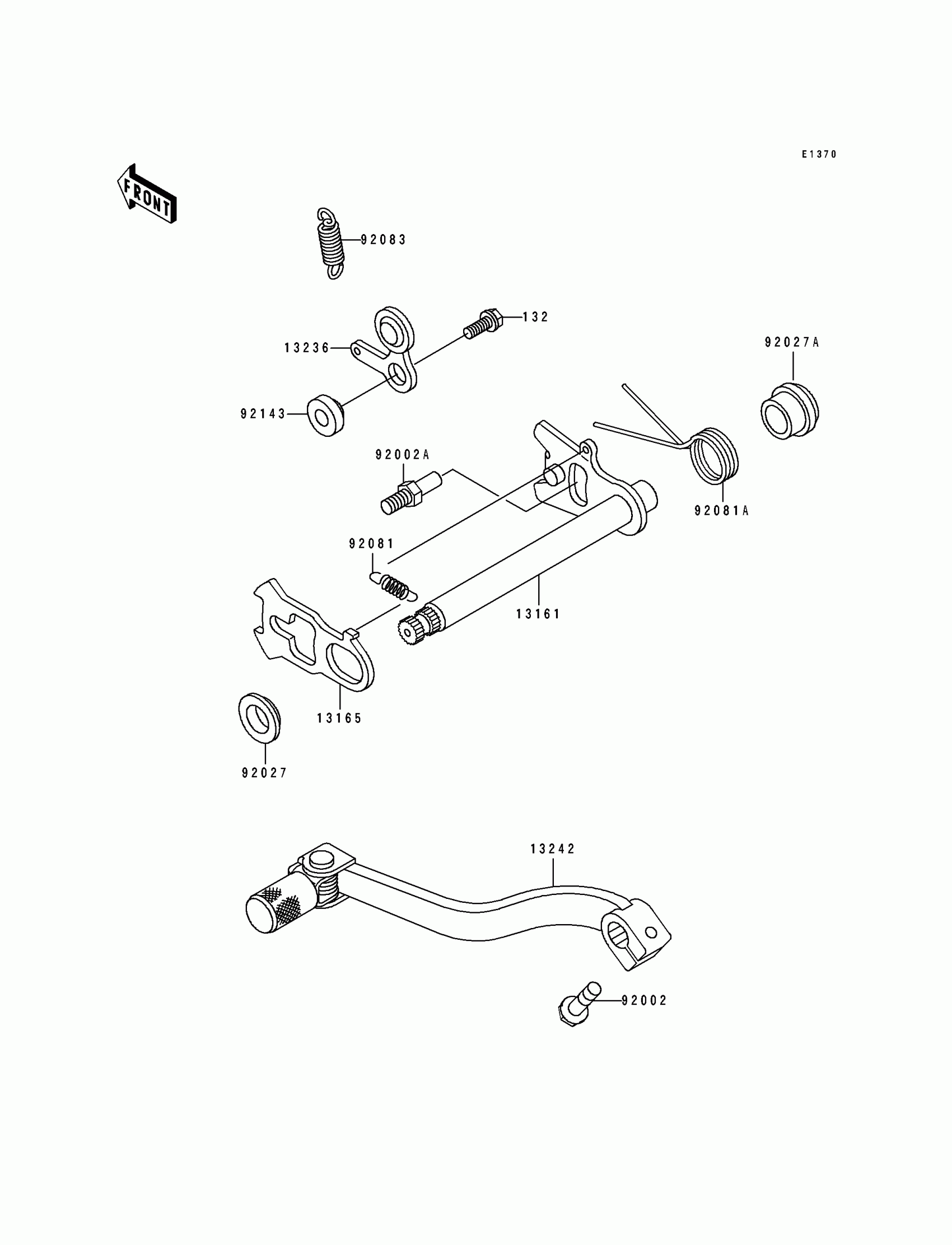

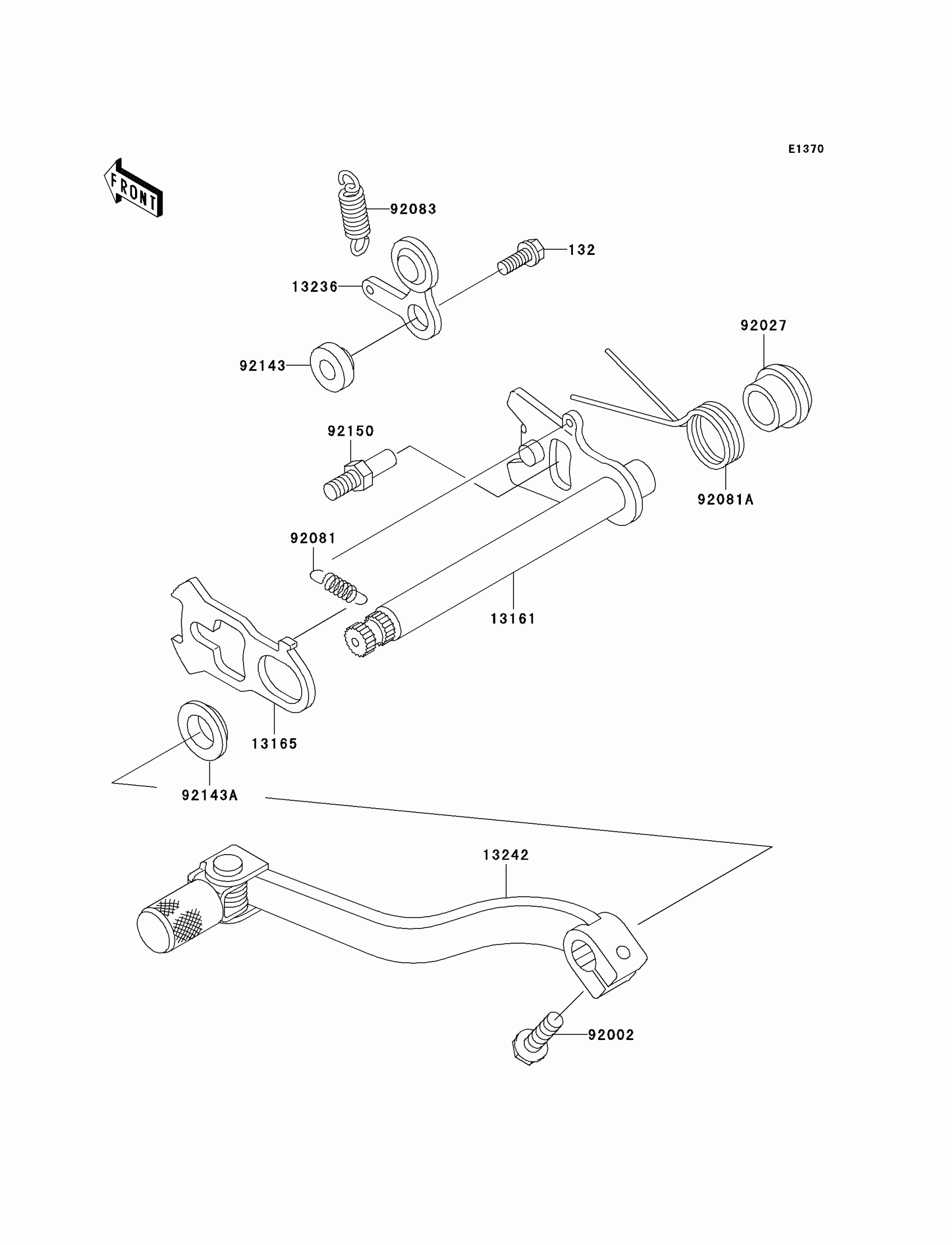

Kawasaki KX100 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1126

$49.24

13165

PAWL,CHANGE LEVER

13165-1114

$11.12

13236

LEVER-COMP,POSITION

13236-1152

$7.67

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1286

$59.24

92002

BOLT,6X20

92002-1237

$3.43

92002A

BOLT,8X15

92002-1601

$7.36

92027

COLLAR

92027-1939

Unavailable

92027A

COLLAR

92027-1940

$9.58

92081

SPRING,CHANGE LEVER

92081-076

$4.34

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

$7.79

92083

SPRING,CHANGE DRUM LEVER

92083-012

$3.69

92143

COLLAR

92143-1055

$5.84

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable
