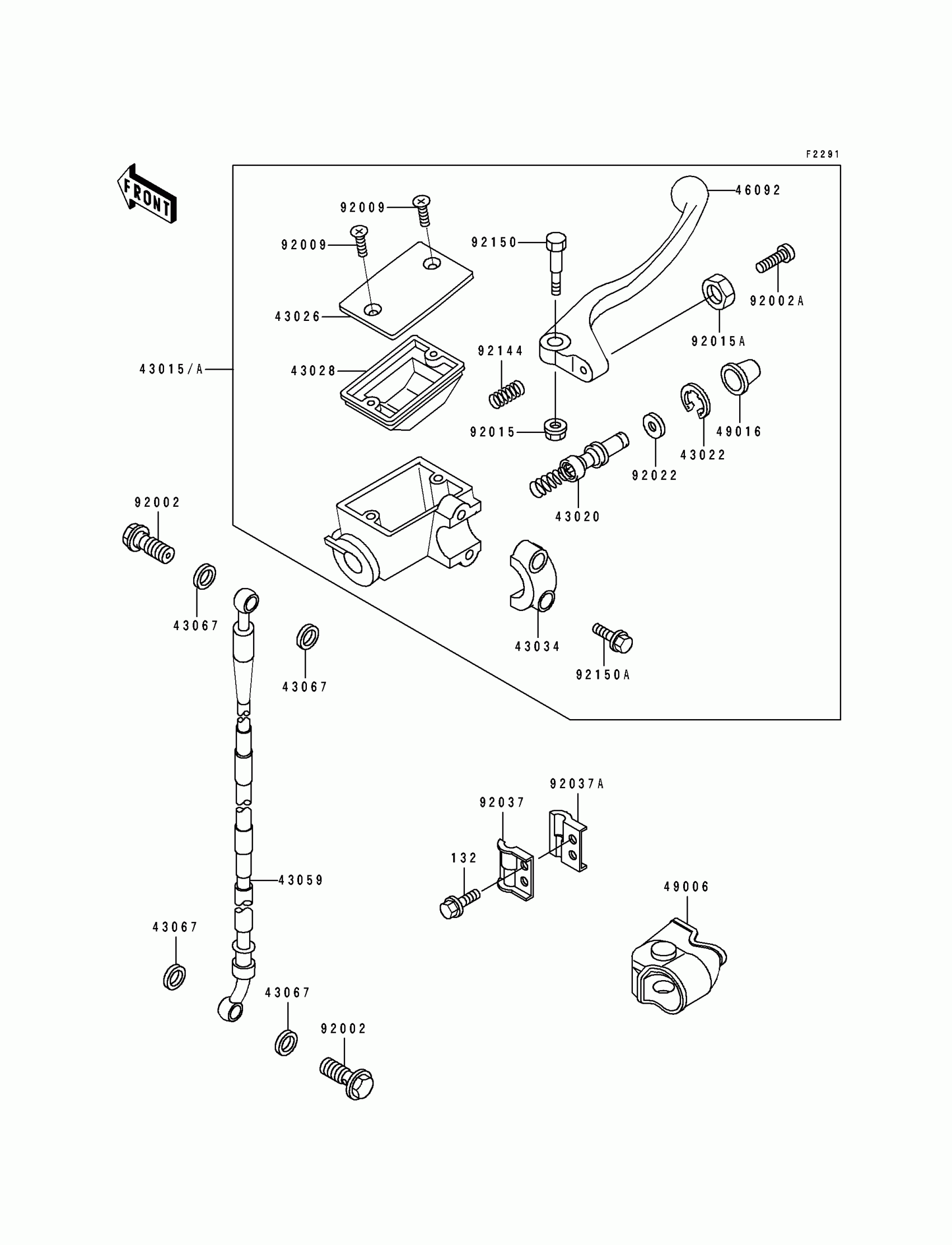

Kawasaki KX100 Front Master Cylinder(KX100-B5/B6) Diagram

Description

Price

43015A

CYLINDER-ASSY-MASTER,FR

43015-1574

Unavailable

43020

PISTON-COMP-BRAKE

43020-1109

$58.47

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.12

43034

HOLDER-BRAKE

43034-1110

$14.67

43059

HOSE-BRAKE,FR

43059-1705

$127.21

43067

WASHER,10.5X15X1.5

43067-001

$1.57

46092

LEVER-GRIP,FRONT BRAKE

46092-1186

$22.90

49006

BOOT,FRONT BRAKE LEVER

49006-1286

$11.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,OIL,L=23

92002-1888

$4.15

92002A

BOLT,ADJUST

92002-1893

$7.36

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92015A

NUT,ADJUST

92015-1642

$2.99

92022

WASHER

92022-1814

$4.17

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$5.61

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$5.61

92144

SPRING,RETURN

92144-1725

$7.30

92150

BOLT,LEVER SET

92150-1451

$10.80

92150A

BOLT

92150-1452

$4.18

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable
