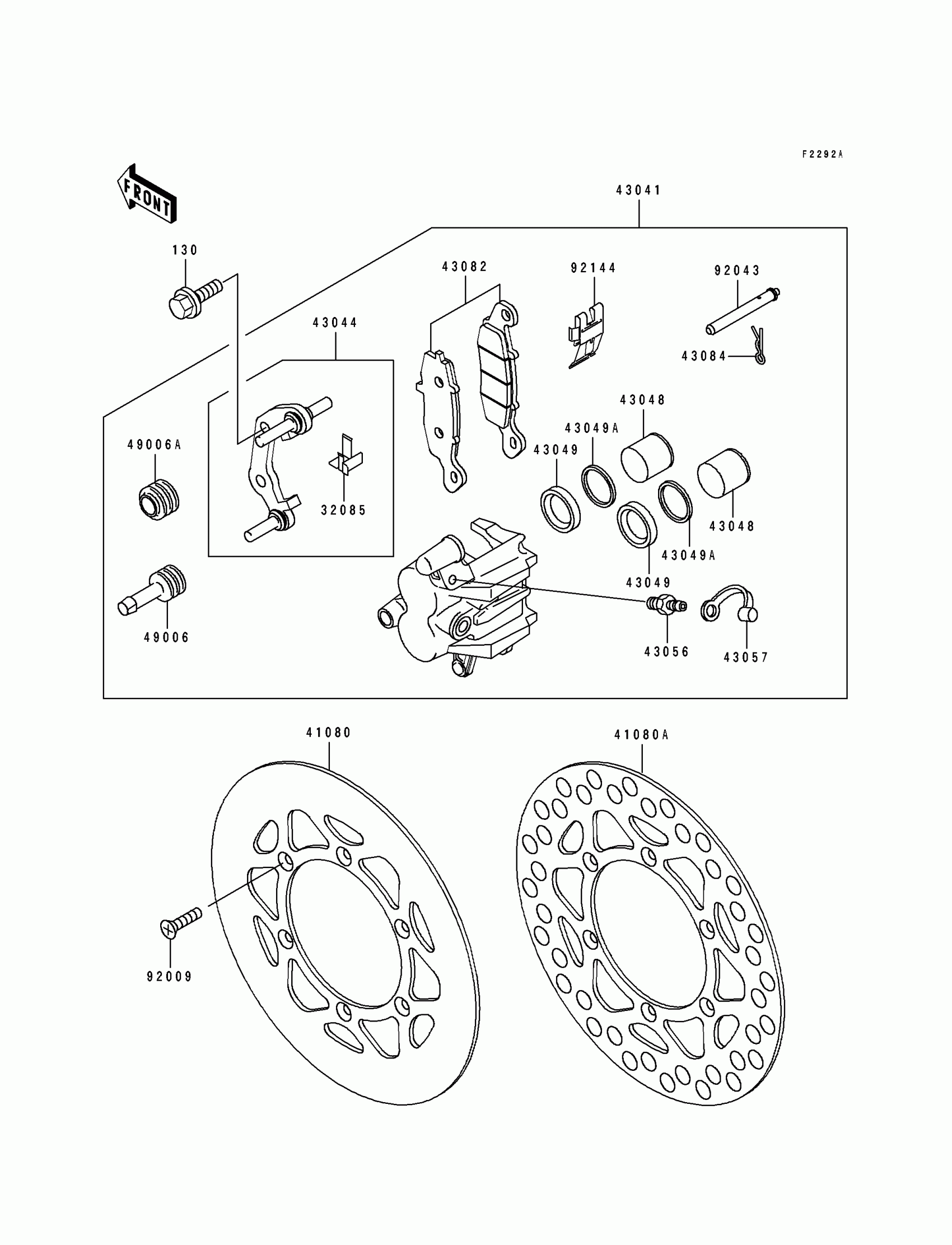

Kawasaki KX100 Front Brake(KX100-B7) Diagram

Description

Price

32085

STOPPER

32085-1437

$12.42

41080

DISC,FR

41080-1330

Unavailable

41080A

DISC,FR

41080-1335

Unavailable

43041

CALIPER-ASSY,FR

43041-1618

$358.18

43044

HOLDER-COMP-CALIPER,FR

43044-1119

$120.75

43048

PISTON-CALIPER

43048-1083

$51.26

43049

PACKING,PISTON

43049-1058

$4.61

43049A

PACKING,PISTON

43049-1059

$6.48

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1196

$47.28

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1055

$5.55

92009

SCREW,6X10

92009-1375

$3.53

92043

PIN,PAD

92043-1356

$10.25

92144

SPRING,PAD

92144-1980

Unavailable

130

BOLT-FLANGED

130P0840

Unavailable
