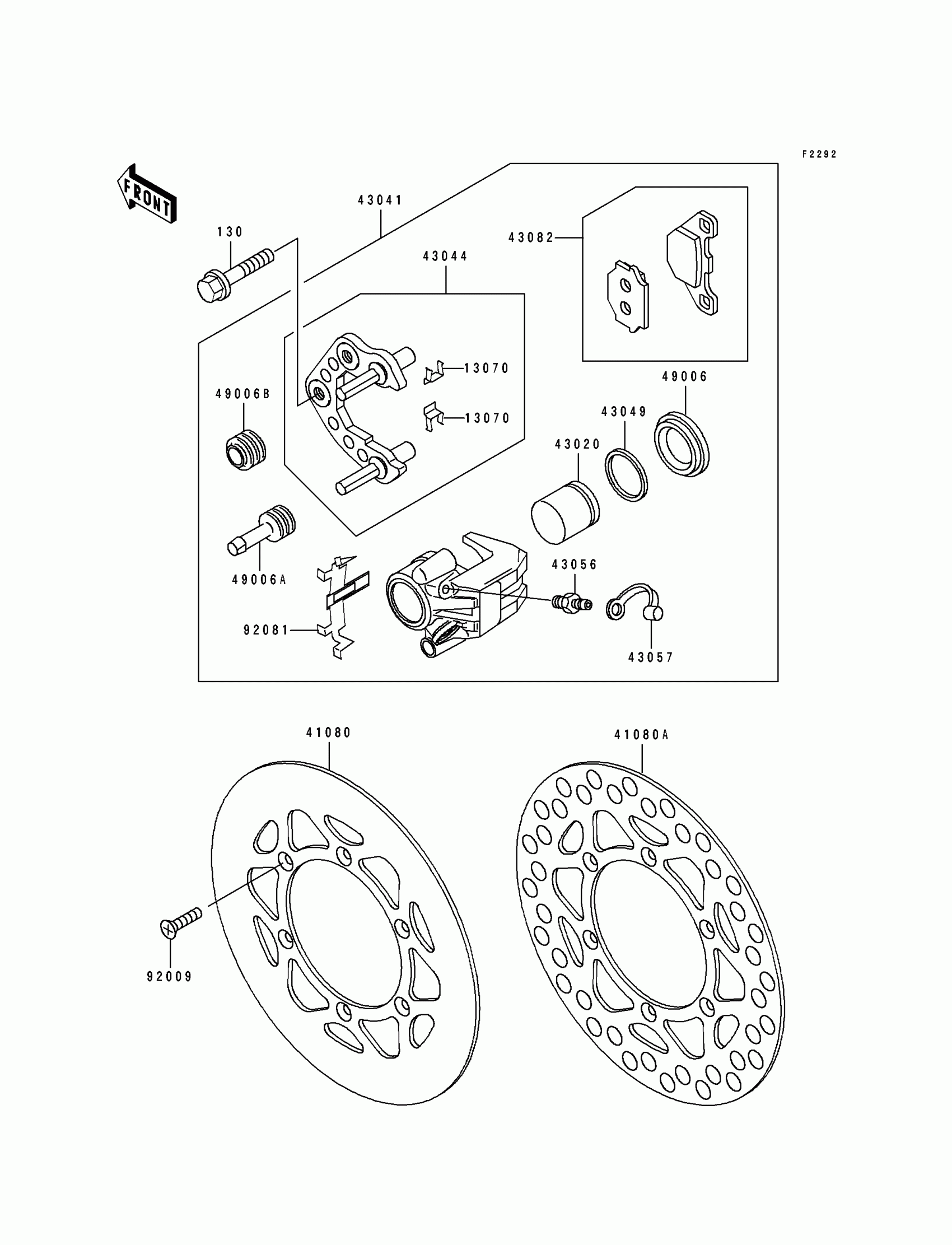

Kawasaki KX100 Front Brake(KX100-B5/B6) Diagram

Description

Price

13070

GUIDE,PAD STOPPER

13070-1183

Unavailable

41080

DISC,FR

41080-1330

Unavailable

41080A

DISC,FR

41080-1335

Unavailable

43020

PISTON-COMP-BRAKE

43020-1091

$62.39

43041

CALIPER-ASSY,FR

43041-1530

$341.66

43044

HOLDER-COMP-CALIPER,FR

43044-1051

$123.93

43049

PACKING

43049-1016

$8.25

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1164

Unavailable

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$9.20

49006B

BOOT,CALIPER

49006-1055

$5.78

92009

SCREW,6X10

92009-1375

$3.53

92081

SPRING,PAD

92081-1341

$12.00

130

BOLT-FLANGED

130P0840

Unavailable
