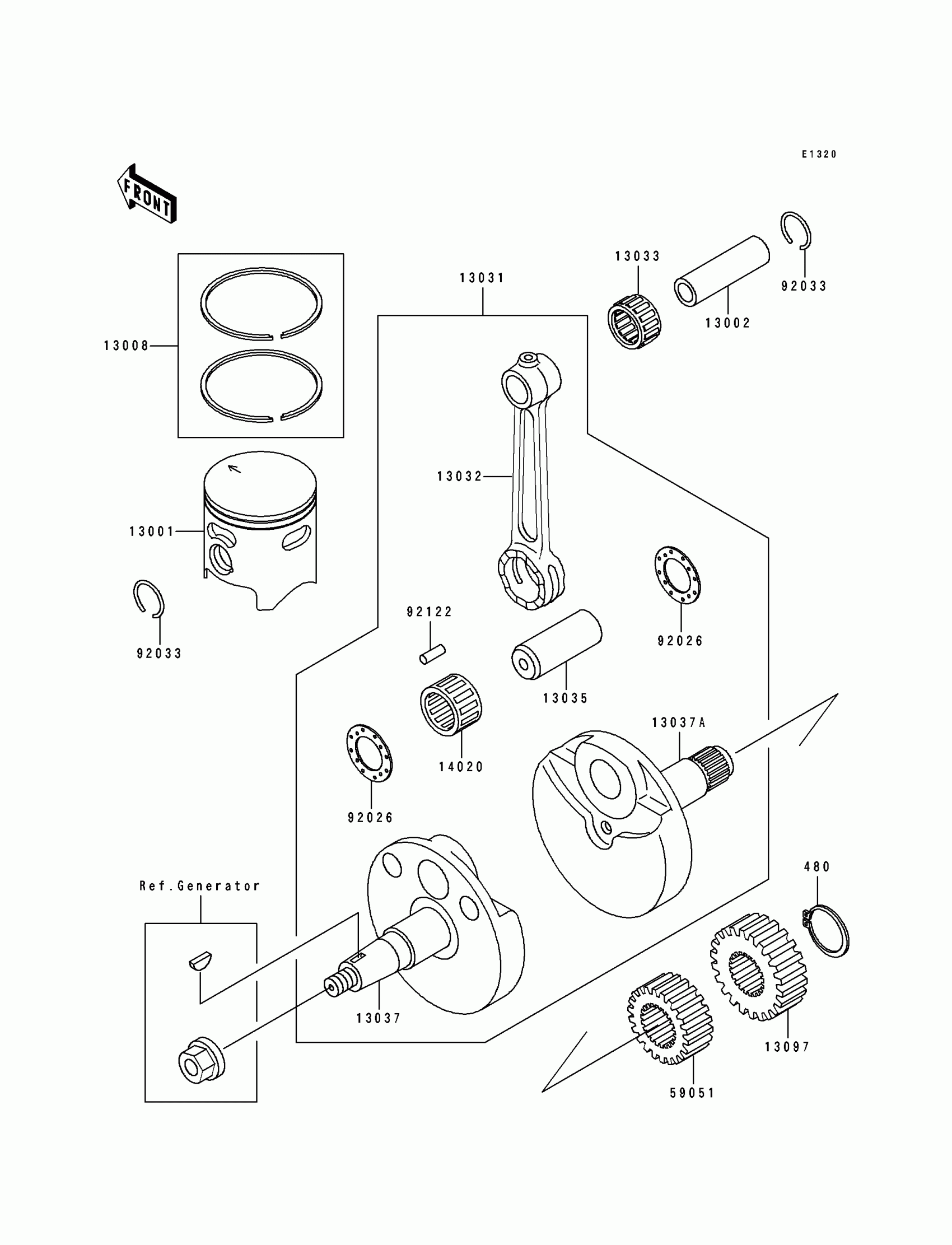

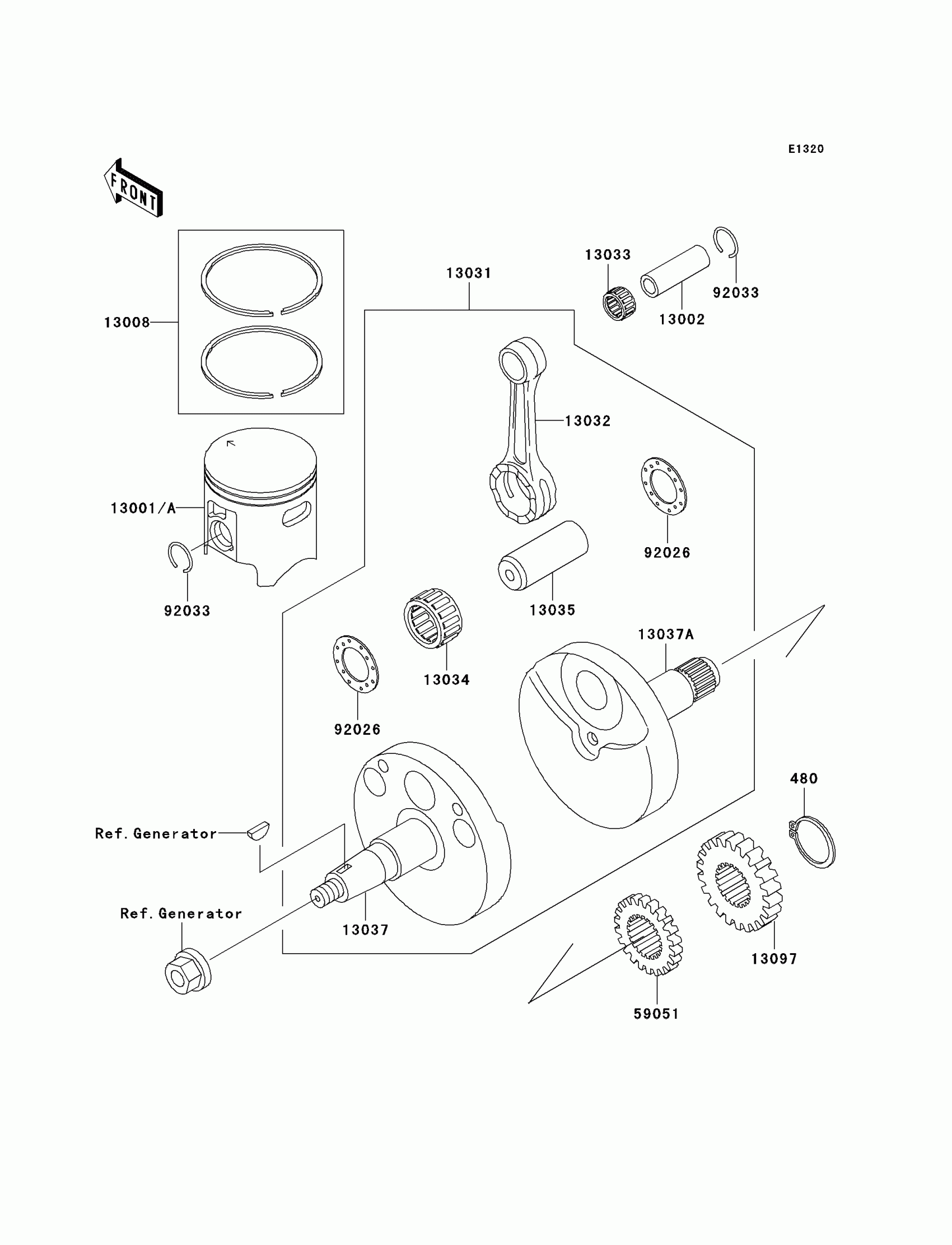

Kawasaki KX100 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,(B)

13001-1308

Unavailable

13002

PIN-PISTON

13002-1018

$30.57

13008

RING-SET-PISTON

13008-1107

$50.85

13031

CRANKSHAFT-COMP

13031-1313

Unavailable

13032

ROD-CONNECTING

13032-1039

$93.79

13033

BEARING-SMALL END,14R1818AP-1

13033-1053

Unavailable

13035

PIN-CRANK

13035-1054

Unavailable

13037

CRANKSHAFT,LH

13037-1396

Unavailable

13037A

CRANKSHAFT,RH

13037-1397

Unavailable

13097

GEAR-PRIMARY SPUR,20T

13097-1148

$80.08

14020

RETAINER

14020-1076

$67.87

59051

GEAR-SPUR,PUMP,23T

59051-1146

$30.97

92026

SPACER,22.2X37X1.0

92026-1136

$8.37

92033

RING-SNAP

92033-1050

$2.27

92122

ROLLER

92122-1177

$3.56

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43
