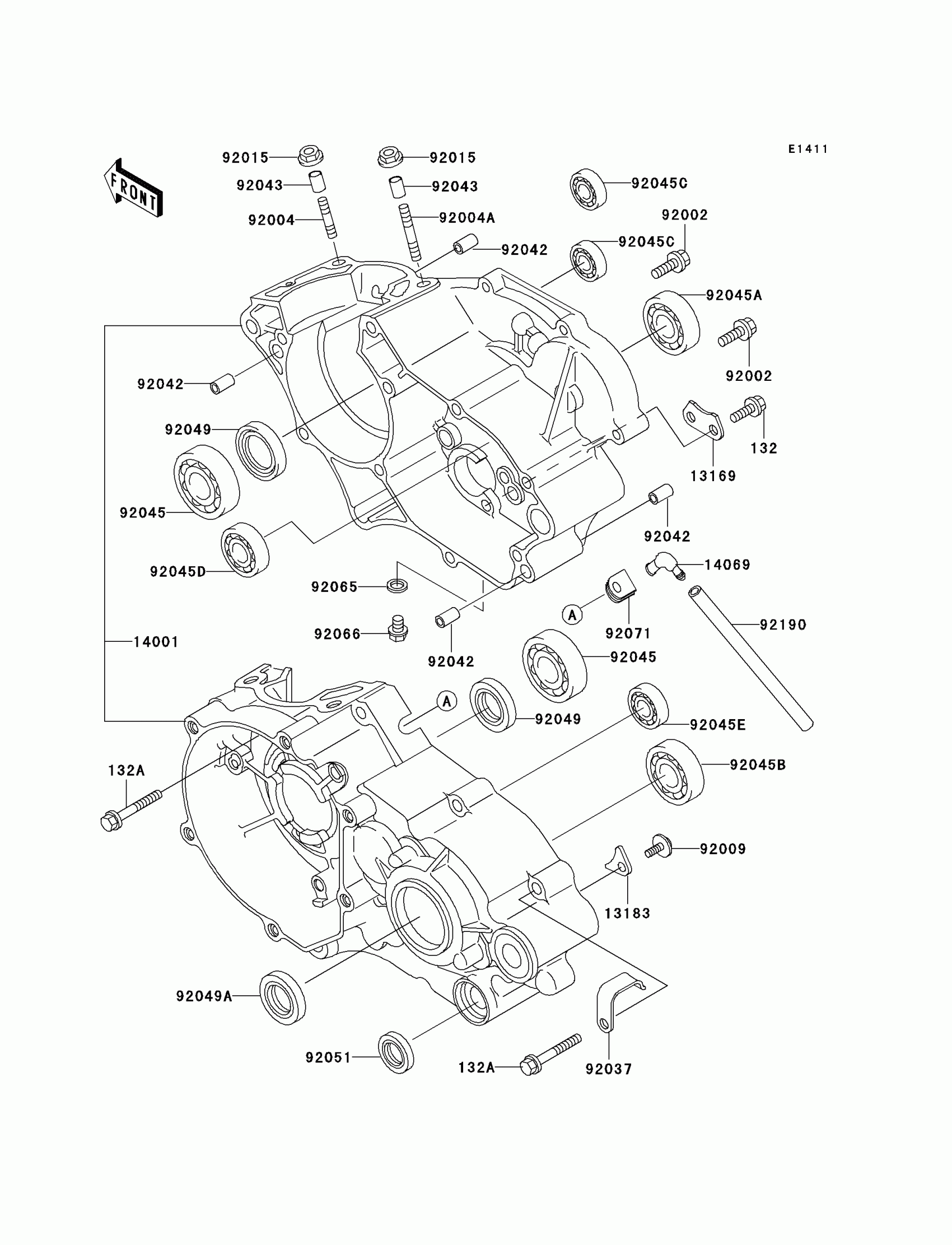

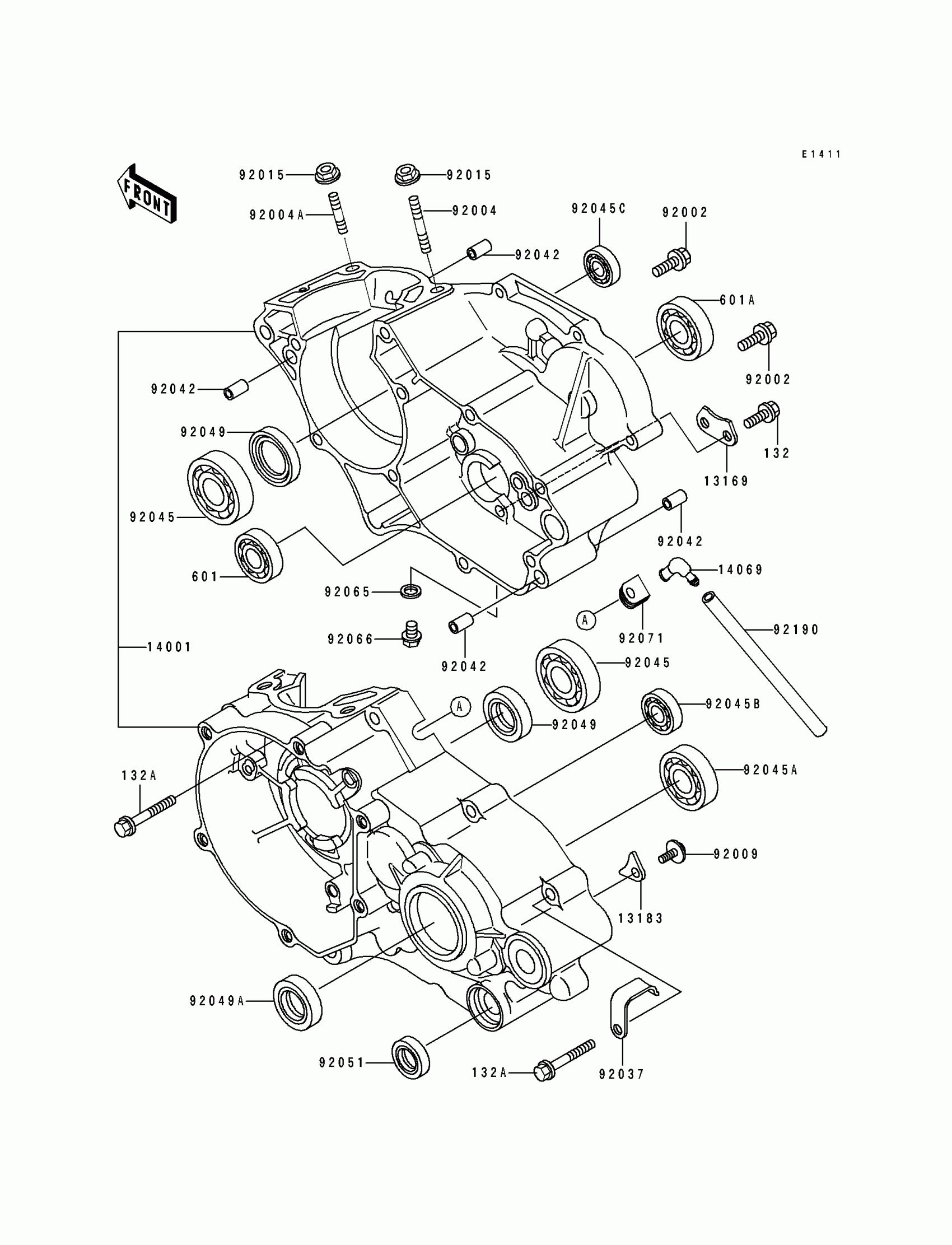

Kawasaki KX100 Crankcase Diagram

#

Description
Price

13169

PLATE,CHANGE DRUM

13169-012

$15.44

13183

PLATE

13183-1182

$3.72

14001

SET-CRANKCASE

14001-5298

Unavailable

14069

BREATHER,CRANKCASE

14069-002

$22.77

92002

BOLT,6X16

92002-1659

$3.97

92004

STUD,8X32

92004-1201

$5.39

92004A

STUD,8X25

92004-1214

Unavailable

92009

SCREW,6X10

92009-1563

$3.11

92015

NUT,8MM

92015-1143

$0.66

92037

CLAMP,HARNESS

92037-1318

$7.25

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92045

BEARING-BALL,R-6304C3

92045-1059

$27.96

92045A

BEARING-BALL,6204

92045-1226

$23.97

92045B

BEARING-BALL,6001C3ML01

92045-1235

$12.85

92045C

BEARING-BALL,626MC3

92045-1304

$9.41

92049

SEAL-OIL,SD20407GS

92049-1188

$14.11

92049A

SEAL-OIL,TC25375

92049-1292

$7.38

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG,DRAIN

92066-1241

$5.39

92071

GROMMET,BREATHER

92071-042

$3.39

92190

TUBE,6X9X330

92190-1116

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

601

BEARING-BALL,#6002

601A6002

$9.21

601A

BEARING-BALL,#6203

601A6203

$11.12
