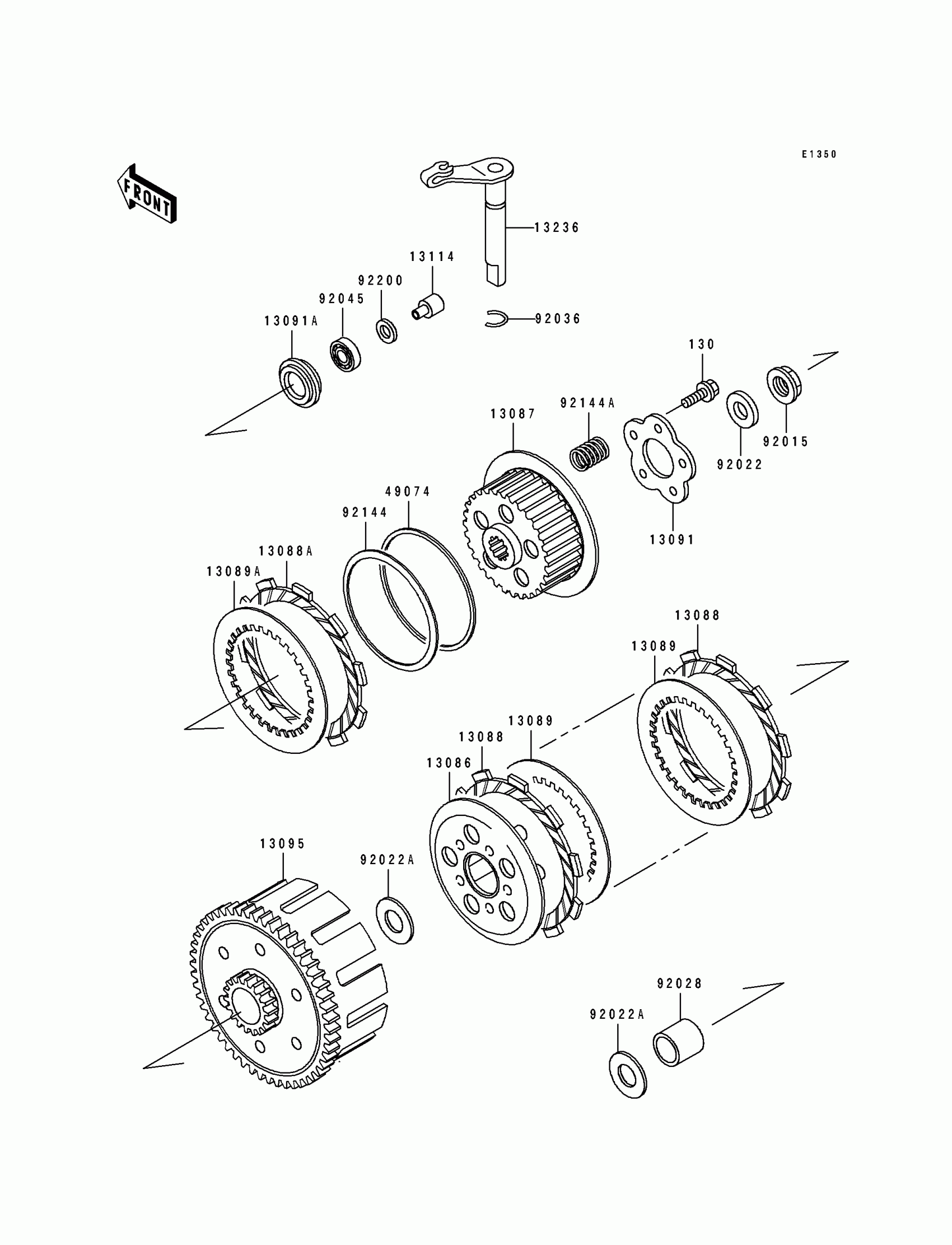

Kawasaki KX100 Clutch Diagram

#

Description
Price

13086

WHEEL-CLUTCH

13086-1058

Unavailable

13087

HUB-CLUTCH

13087-1090

Unavailable

13088

PLATE-FRICTION

13088-1070

$17.27

13088A

PLATE-FRICTION

13088-1082

$17.27

13089

PLATE-CLUTCH,STEEL

13089-1009

$11.12

13089A

PLATE-CLUTCH

13089-1101

$13.19

13091

HOLDER,CLUTCH

13091-1324

Unavailable

13091A

HOLDER

13091-1517

$11.53

13095

HOUSING-COMP-CLUTCH

13095-1165

Unavailable

13114

PUSHER-CLUTCH

13114-1053

Unavailable

13236

LEVER-COMP,RELEASE

13236-1158

Unavailable

49074

PLATE-THRUST

49074-1052

Unavailable

92015

NUT

92015-1706

$5.93

92022

WASHER

92022-1831

$4.37

92022A

WASHER,17.3X28X1

92022-255

$6.82

92028

BUSHING,17X22X21.1

92028-1149

Unavailable

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.53

92045

BEARING-BALL,627

92045-1236

$18.51

92144

SPRING

92144-1370

Unavailable

92144A

SPRING,CLUTCH

92144-1384

$7.81

92200

WASHER,7X12.5X0.8

92200-1197

$3.14

130

BOLT-FLANGED

130P0520

Unavailable
