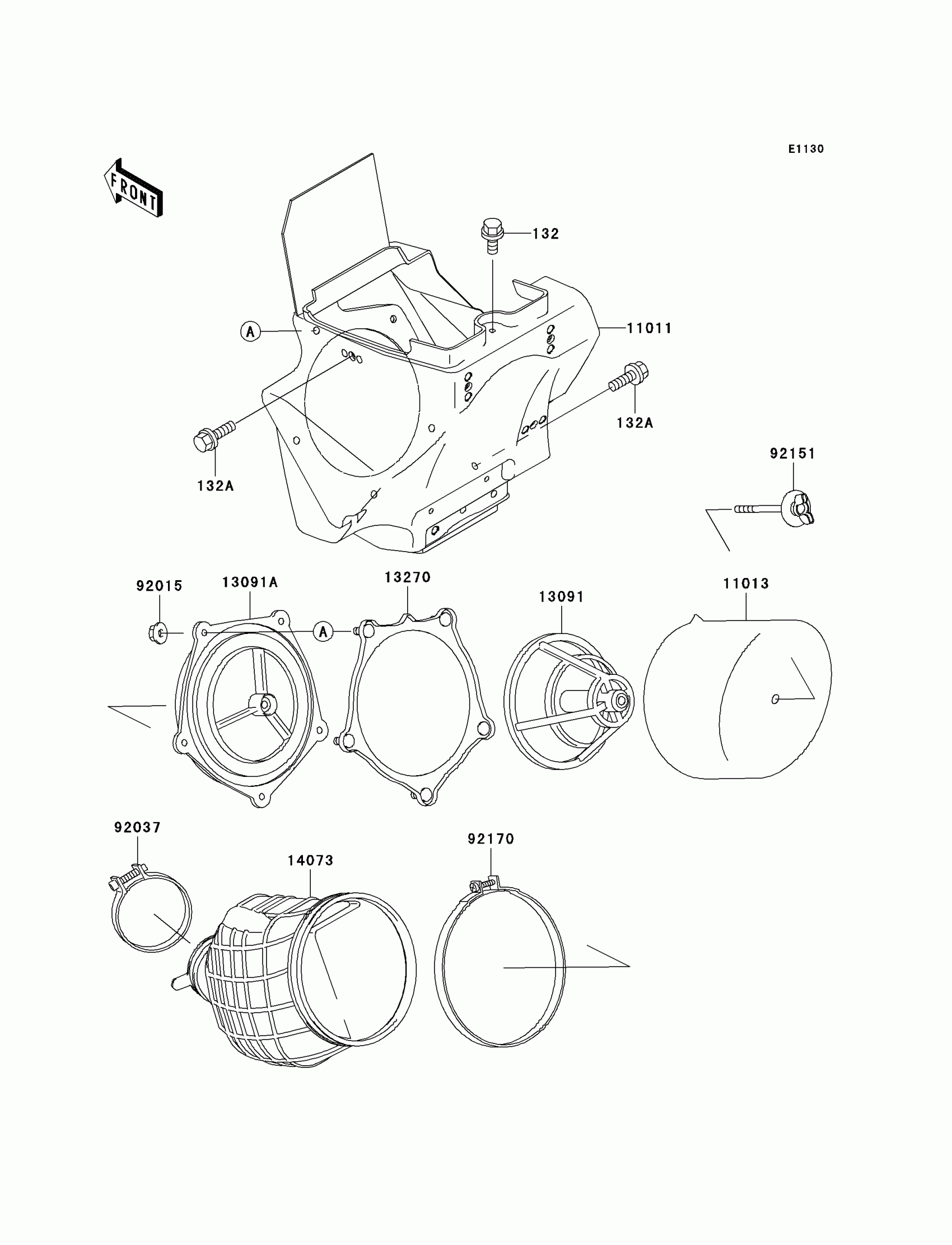

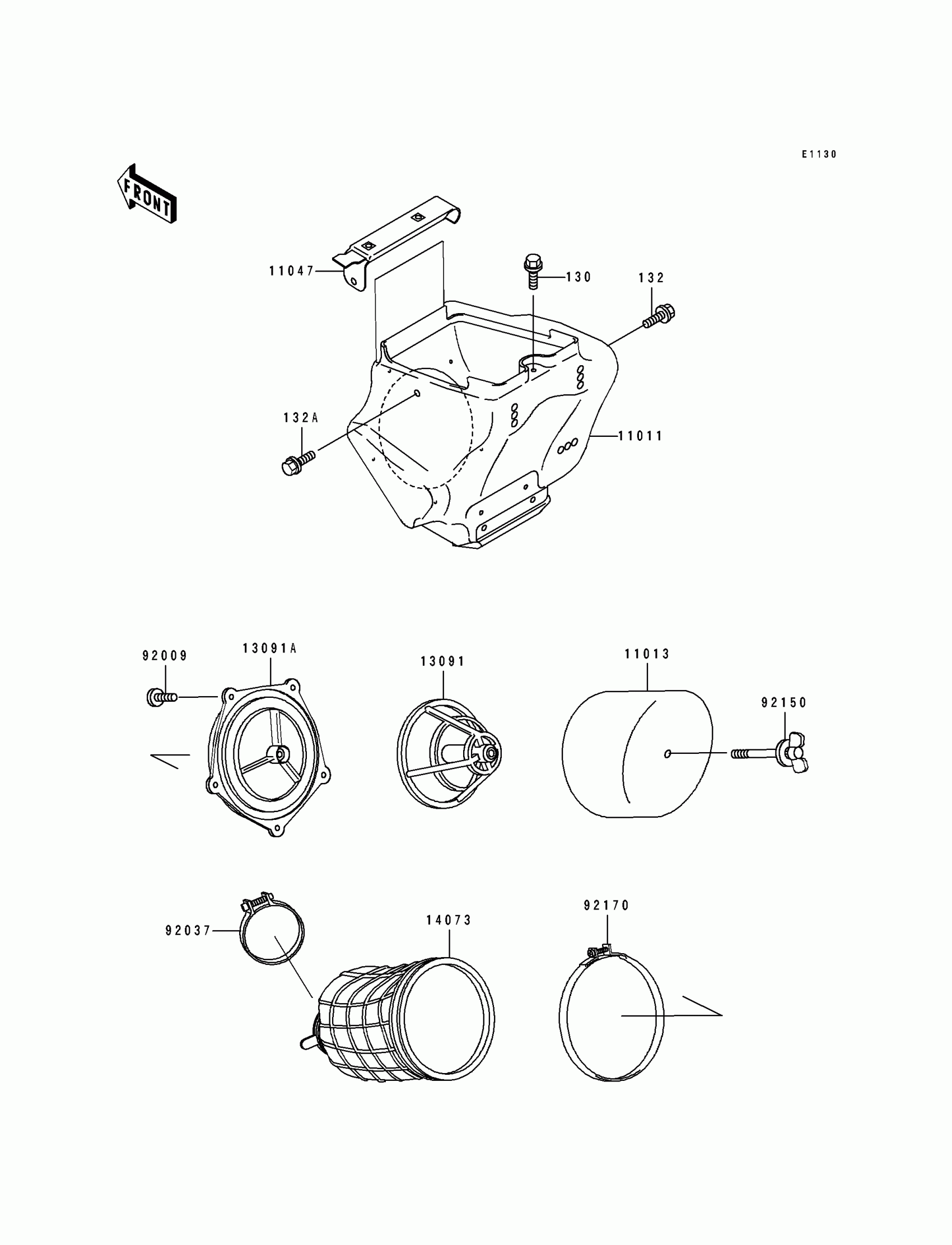

Kawasaki KX100 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1426

Unavailable

11013

ELEMENT-AIR FILTER

11013-1201

$29.94

11047

BRACKET,IGNITER

11047-1361

Unavailable

13091

HOLDER,ELEMENT

13091-1696

$26.56

13091A

HOLDER

13091-1697

$32.80

14073

DUCT,AIR FILTER

14073-1448

Unavailable

92009

SCREW,TAPPING,5X14

92009-1197

$3.12

92037

CLAMP,55MM

92037-1486

$6.88

92150

BOLT,WING

92150-1565

$7.84

92170

CLAMP,126MM

92170-1194

$20.66

130

BOLT-FLANGED

130G0608

Unavailable

132

BOLT-FLANGED-SMALL

132G0614

Unavailable

132A

BOLT-FLANGED-SMALL

132G0620

Unavailable
