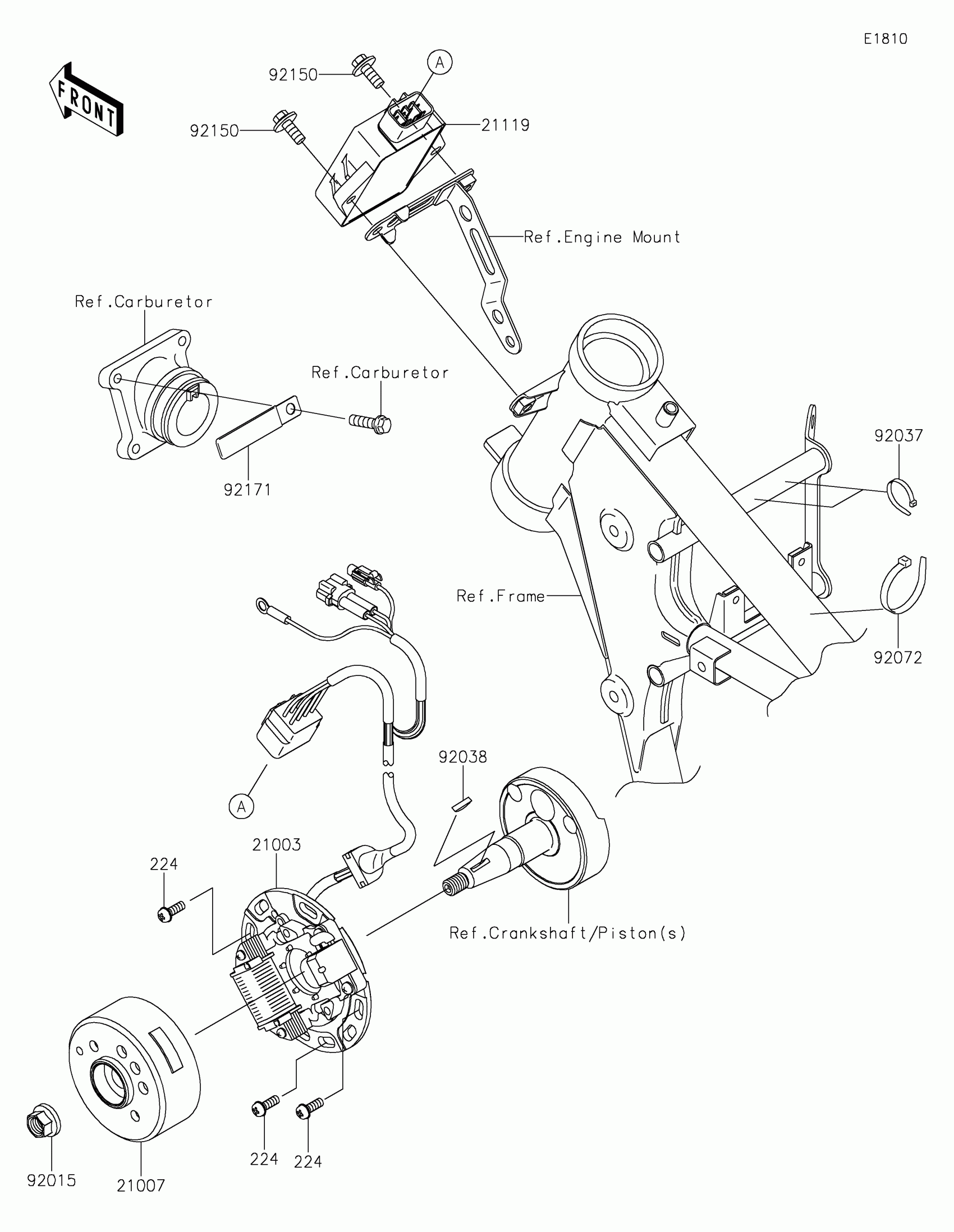

Kawasaki KX™65 Generator Diagram

#

Description
Price

224

SCREW-PAN-WP-CROS,6X14

224AA0614

$4.17

21003

STATOR

21003-0031

$386.75

21007

ROTOR

21007-0052

$413.01

21119

IGNITER

21119-0047

$253.08

92015

NUT,FLANGED,10MM

92015-077

$3.57

92037

CLAMP

92037-1173

$2.58

92038

KEY,WOODRUFF

92038-001

$3.78

92072

BAND,L=140

92072-1293

$5.26

92153

BOLT,6X16

92153-0863

$1.57

92171

CLAMP,L=60

92171-0652

$1.85
