2023 Kawasaki KX™450X Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

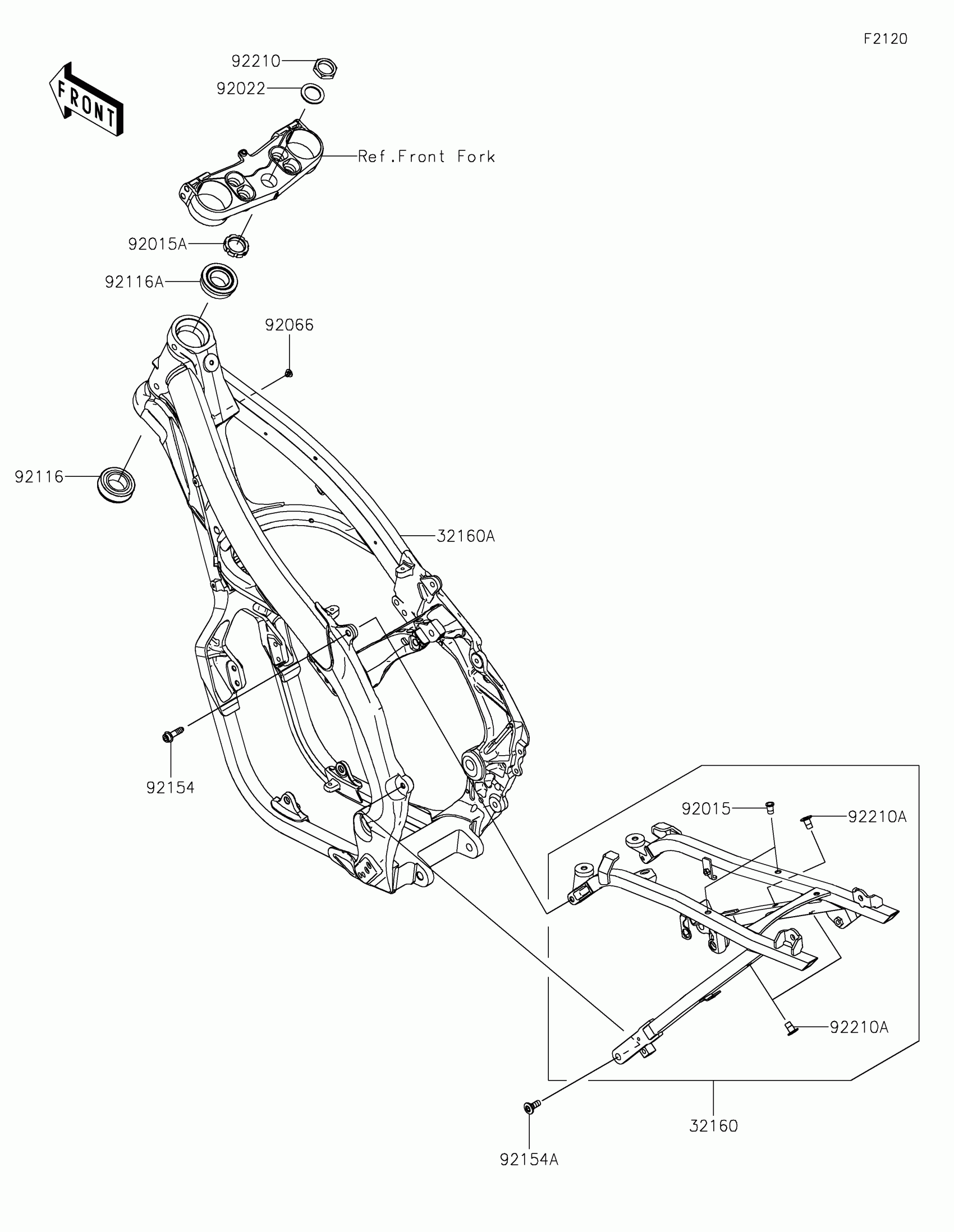

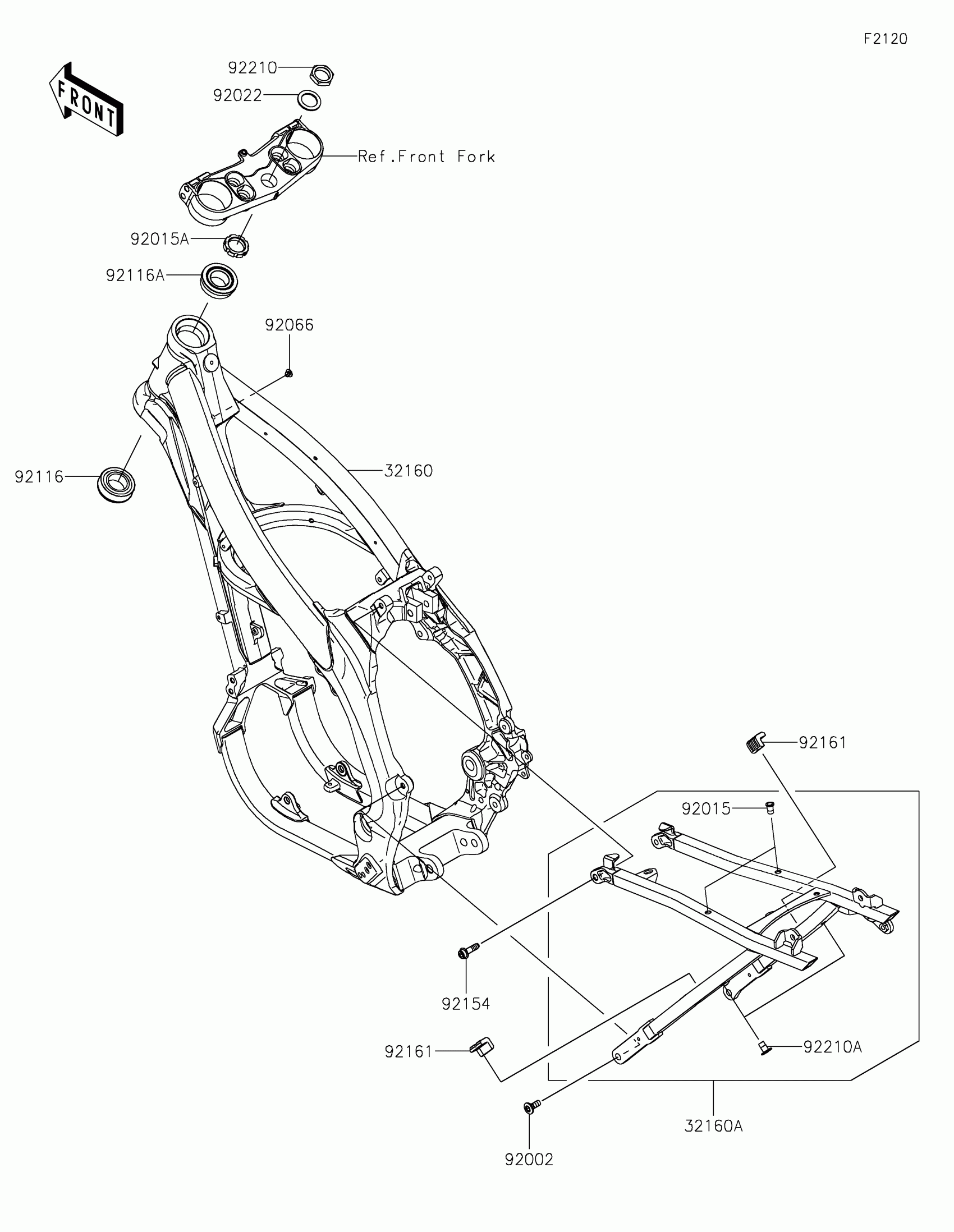

2023 Kawasaki KX™450X Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,MAIN

32160-0973

1

$2,516.93

In stock

32160A

FRAME-COMP,RR

32160-0976

1

$675.07

In stock

92002

BOLT,SOCKET,8X20

92002-1736

1
Out of stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015A

1

$14.27

In stock

92022

WASHER,25X36X2.3

92022-250

1
Out of stock

92066

PLUG

92066-1547

1

$3.19

In stock

92116

1

$59.23

In stock

92116A

1

$46.70

In stock

92154

BOLT,SOCKET,8X28

92154-2991

1

$7.32

In stock

92161

DAMPER

92161-2175

1

$9.44

In stock

92210

NUT,24MM

92210-0066

1
Out of stock

92210A

1

$2.41

In stock
