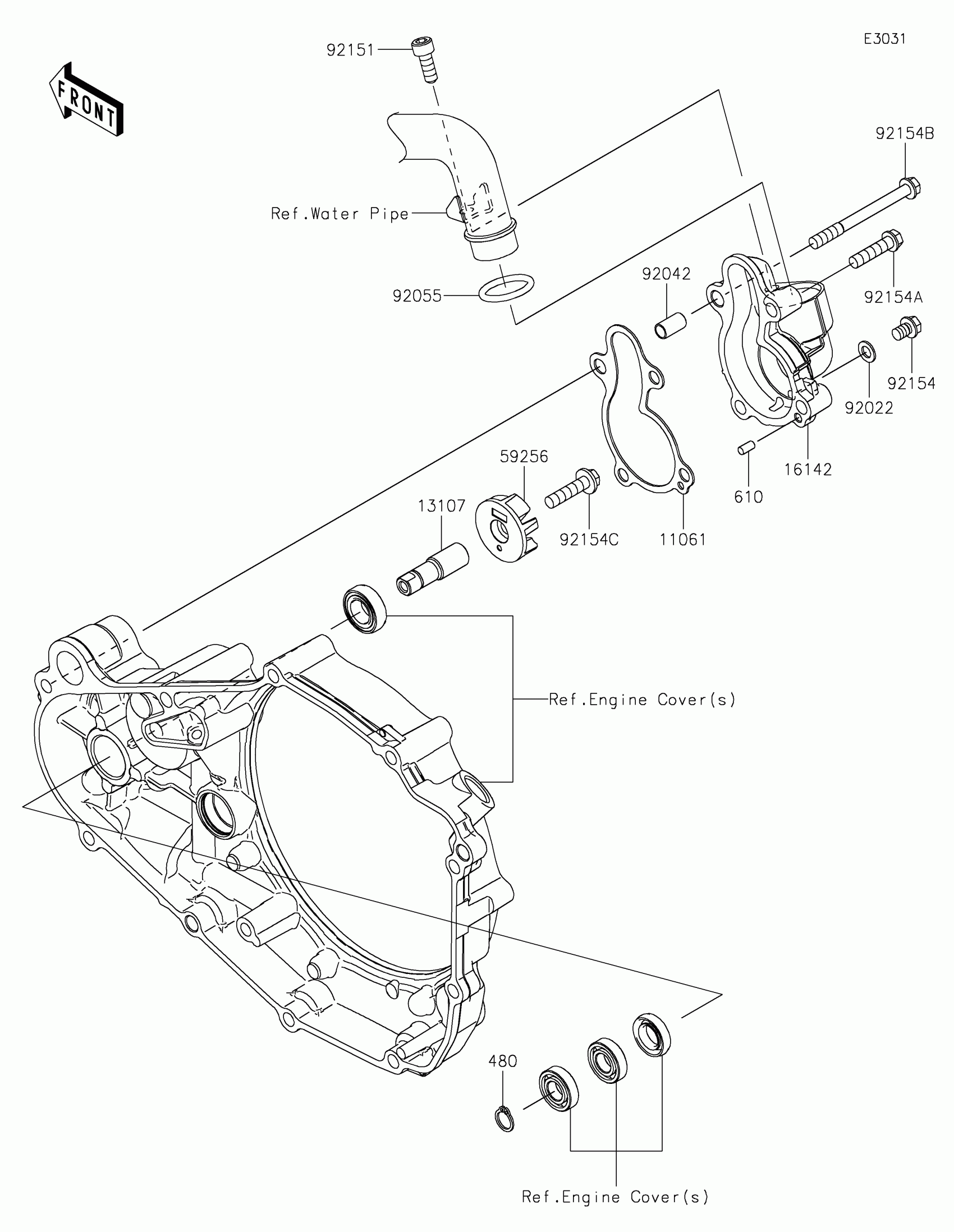

Kawasaki KX™450SR Water Pump Diagram

Description

Price

11061

GASKET

11061-1275

$4.26

13107

SHAFT

13107-0872

$56.72

16142

COVER-PUMP

16142-0752

$88.46

59256

IMPELLER

59256-0003

$41.09

92022

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92154

BOLT,FLANGED,6X25

92154-0531

$2.44

92154A

BOLT,FLANGED,6X8

92154-2962

$0.69

92154B

BOLT,FLANGED,6X25

92154-2967

$0.76

92154C

BOLT,FLANGED,6X65

92154-2980

$1.27

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.57

610

ROLLER,4X8

610A0408

$3.29
