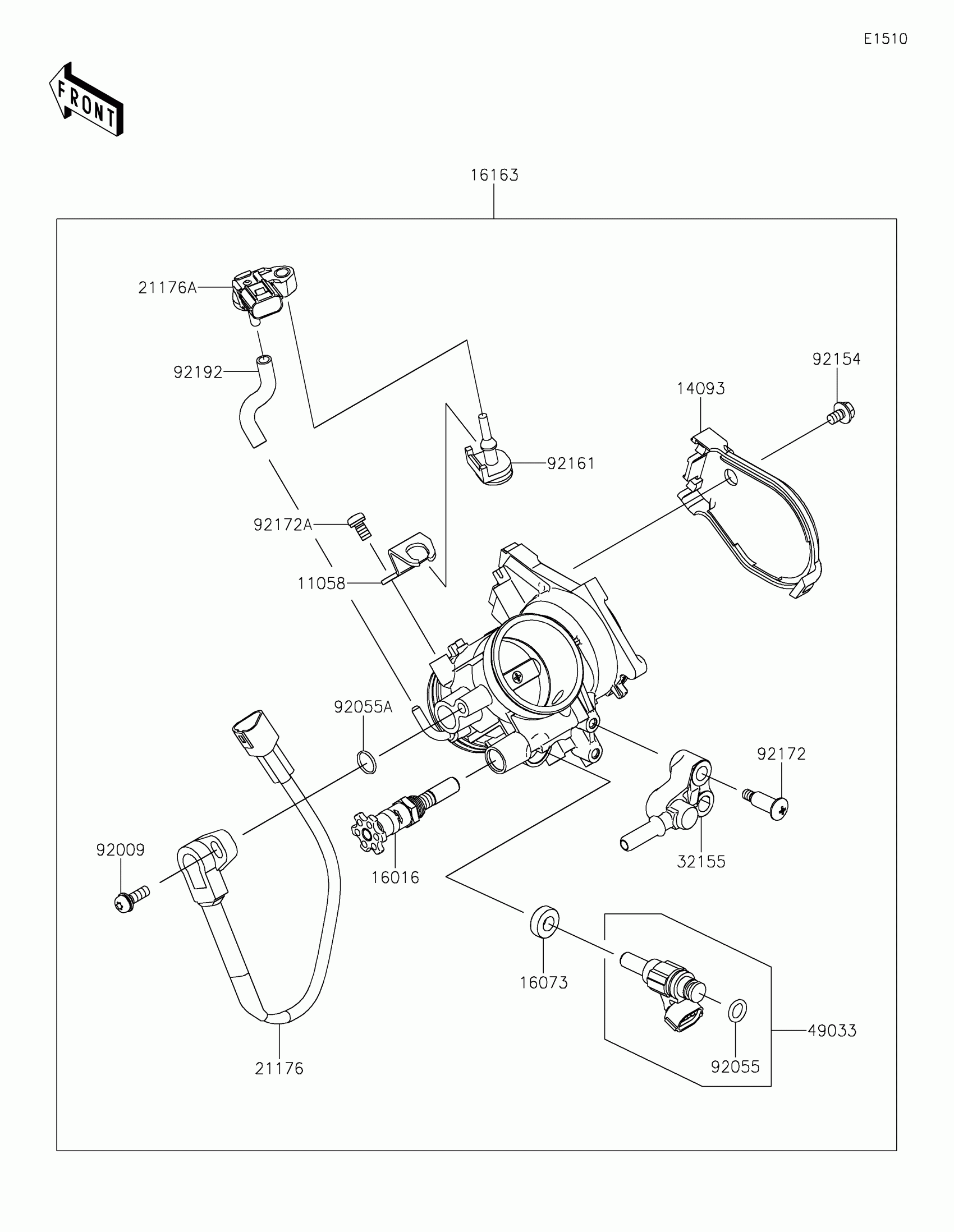

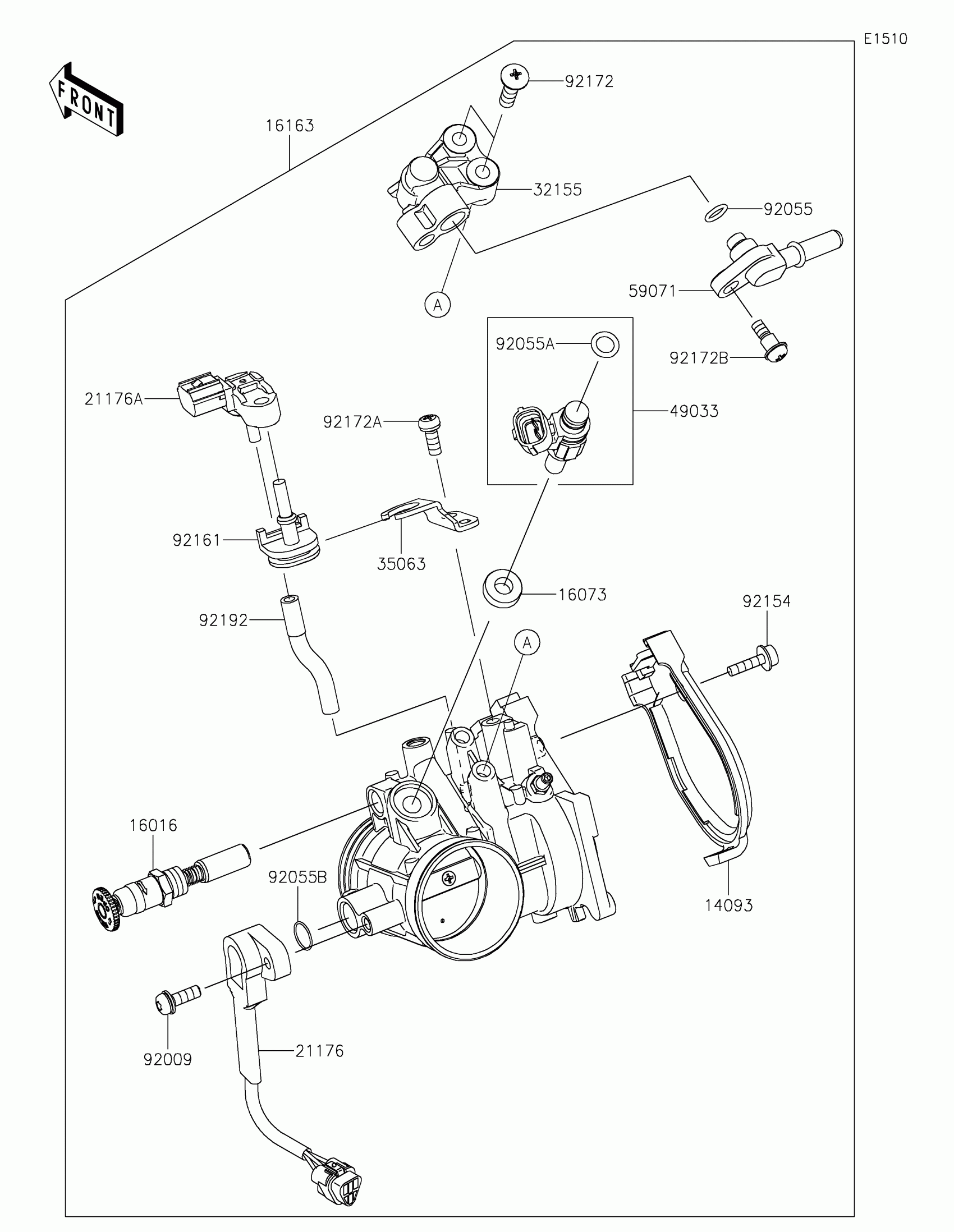

Kawasaki KX™450SR Throttle Diagram

Description

Price

14093

COVER,THROTTLE DUST

14093-0431

$25.20

16016

PLUNGER

16016-0026

$45.27

16073

INSULATOR

16073-0129

$4.53

16163

THROTTLE-ASSY

16163-1209

$732.98

21176

SENSOR,THROTTLE POSITION

21176-0893

$192.98

21176A

SENSOR,PRESSURE

21176-0906

$226.99

32155

PIPE

32155-3835

$118.42

35063

STAY

35063-1471

$7.27

49033

NOZZLE-INJECTION

49033-0561

$135.42

59071

JOINT

59071-0760

$32.49

92009

SCREW,THROTTLE SENSOR

92009-1981

$2.00

92055

RING-O

92055-0064

$5.84

92055A

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92055B

RING-O

92055-1671

$3.29

92154

BOLT

92154-0133

$7.15

92161

DAMPER

92161-0673

$4.85

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW

92172-0393

$7.47

92172B

SCREW

92172-0776

$4.68

92192

TUBE

92192-1642

$9.29
