Description

Price

13107

SHAFT,IDLER

13107-0871

$8.75

13194

CLUTCH-ONEWAY

13194-1096

$108.18

13280

HOLDER

13280-0261

$15.78

13280A

HOLDER,MAGNETIC SWITCH

13280-0814

$11.37

14093

COVER,MAGNETIC SWITCH

14093-0716

$9.22

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,60T

16085-0675

$161.94

21039

BRUSH,CARBON SET

21039-0005

$69.54

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0771

$637.09

26006

FUSE,10A

26006-0033

$5.34

26011

WIRE-LEAD

26011-0998

$57.21

27010

SWITCH,MAGNETIC

27010-0879

$111.05

39076

LIMITER

39076-0037

$204.20

59051

GEAR-SPUR,IDLER

59051-0809

$115.03

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92046

BEARING-NEEDLE,K22X28X17V1

92046-0026

$19.19

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0024

$9.86

92153

BOLT

92153-1866

$4.14

92154

BOLT,FLANGED,6X20

92154-2966

$0.69

92154A

BOLT

92154-3958

$5.56

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81

120

BOLT-SOCKET,5X10

120CB0510

$1.23

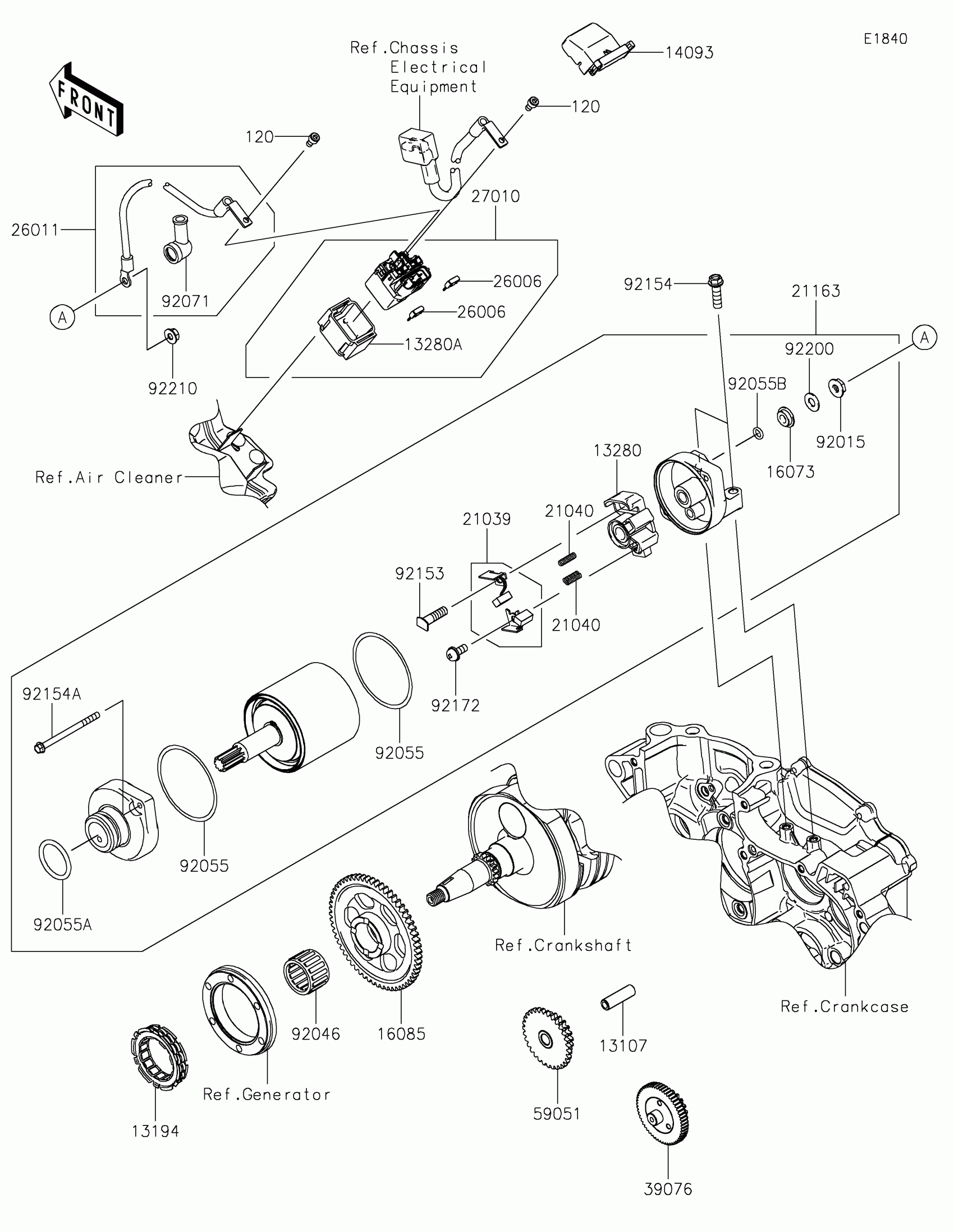

Kawasaki KX™450SR Starter Motor Diagram

SHAFT,IDLER

CLUTCH-ONEWAY

HOLDER

HOLDER,MAGNETIC SWITCH

COVER,MAGNETIC SWITCH

INSULATOR

GEAR,60T

BRUSH,CARBON SET

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,10A

WIRE-LEAD

SWITCH,MAGNETIC

LIMITER

GEAR-SPUR,IDLER

NUT,STARTER MOTOR

BEARING-NEEDLE,K22X28X17V1

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT

BOLT,FLANGED,6X20

BOLT

SCREW

WASHER

NUT,6MM

BOLT-SOCKET,5X10
